Various lead times may apply to this product. Please contact us for more details.Description

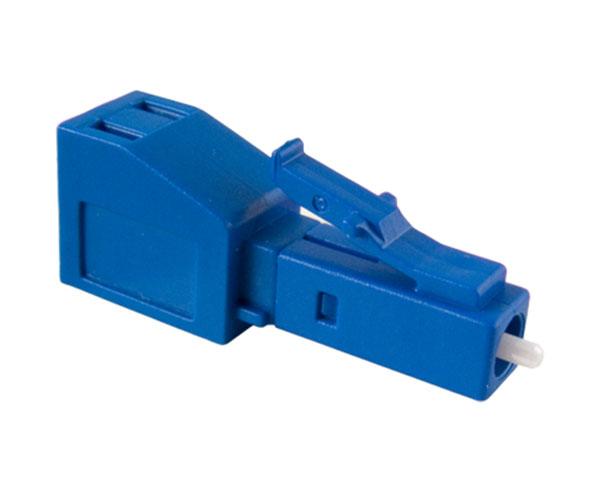

Fiber Attenuator, LC Single Mode Simplex with UPC Polish
LC/UPC single mode fiber attenuators are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. LC/UPC single mode fiber optic attenuators can also be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels.
Features
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 25dB
- 1310nm, 1550nm and 1310/1550nm dual wave lengths
Applications
- Erbium Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
Specifications
Maximum Return Loss: ≥50 dB
Attenuation Levels from 1dB to 9dB: ±10%dB
Attenuation Levels from 10dB to 30dB: ±1.0%dB
