36-Strand Pre-Loaded Single Mode SC Slide-Out 1U Fiber Patch Panel with Unjacketed Pigtail Bundle

Splice trays, adapter panels and pigtails are included

Item is not assembled and items are packaged separately

Description

36-Strand Pre-Loaded Singlemode SC Fiber Patch Panel with Unjacketed Pigtails and Splice Trays, Slide-Out, 1RU

This rack mount fiber optic patch panel is a 1 Rack Unit (1U/1RU) high density fiber distribution unit that Includes fiber optical pigtail with out a jacket, LGX SC adapter panels and three 24 fiber splice trays. This panel also includes a smooth sliding drawer type pull out system.

For additional fiber adapter panels use our LGX FB24 adapter panel inserts. To find out more, give us a call or email us.

Features:

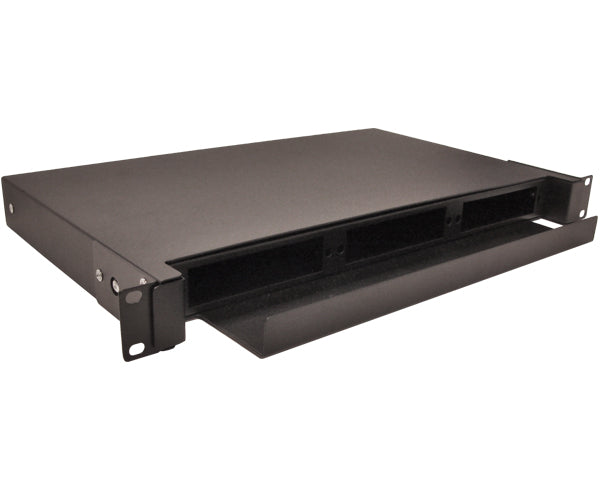

Slide-Out Fiber FDU Patch Panel Enclosure

• Fits up to 72 fiber splices
• Fits 3 LGX fiber optic adapter panels
• Includes three 24 fiber splice trays
• Durable powder coat finish
• Made from SPCC steel
• Smooth gliding pull out system

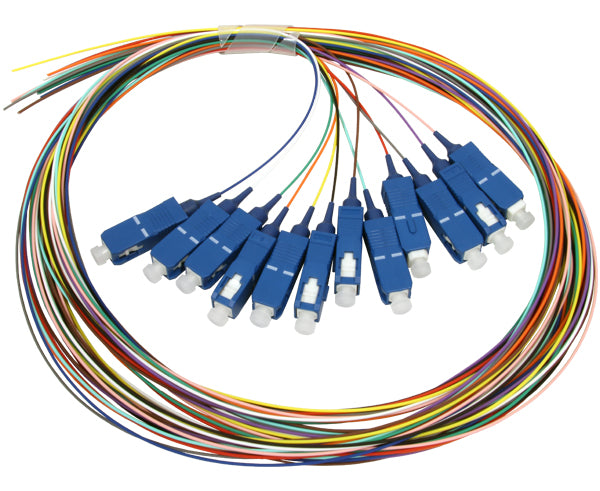

Singlemode Fiber Optic Unjacketed Pigtails, SC(UPC), 12 Strand, 2 Meter

• None jacketed Pigtail for tighter spaces.
• Pre-terminated fiber to reduce installation time and ensure accuracy.
• 12 singlemode SC connectors ready to plug directly into an adapter panel.

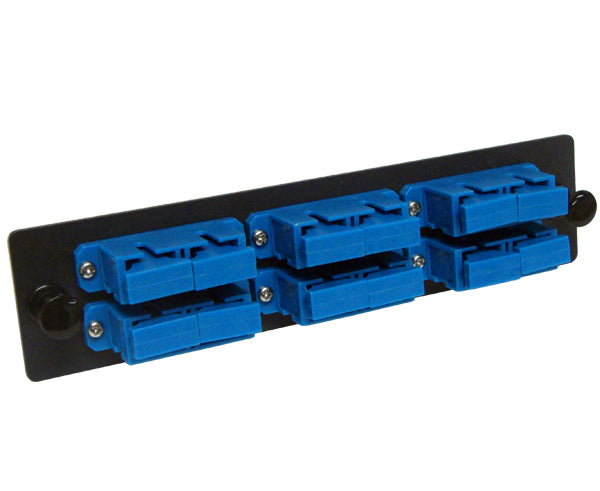

Fiber Adapter Plates

• Steel LGX type adapter plates with black paint
• SC duplex fiber adapters/couplers
• Metal clips secure the adapters/couplers in the adapter plates

Specifications

Included

• 1U Steel Slide-Out Fiber Patch Panel

• Unjacketed 2 Meter 12 Fiber Singlemode Pre-Terminated SC

• SC LGX Fiber Adapter Panels

• 3x - 24 Fiber Splice Trays with splice sleeves

Physical Properties

• Color
• Black
• Material
• Powder Coated SPCC Steel

What's included

36 Fiber, SC Single Mode Fiber Patch Panel Contents

• 1 - Slide-Out 1U Fiber Patch Panel Enclosure
• 3 - Single Mode 2 Meter 12 Fiber SC Unjacketed Pigtail
• 3 - 12 Port, SC Single Mode Duplex Adapter Panel
• 3 - 24 Fiber Splice Trays with 72 Fiber Protective Sleeves
