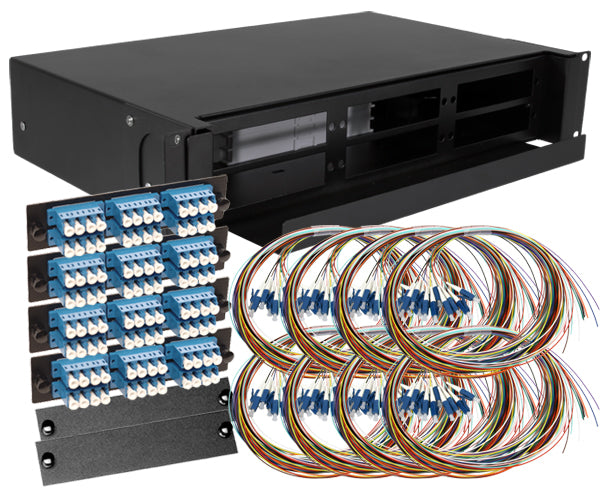

96-Fiber Pre-Loaded OS2 LC Slide-Out 2U Panel with Unjacketed Pigtail Bundle

Splice trays, adapter panels and pigtails are included

Item is not assembled and items are packaged separately

Description

96 Strand Pre-Loaded Single-Mode LC Fiber Patch Panel with UnJacketed Pigtails and Splice Trays, Slide-Out, 2RU

This rack mount fiber optic patch panel is a 2 Rack Unit (2U/2RU) high density fiber distribution unit that Includes fiber optical Single-Mode Pigtails, LGX LC adapter panels and six 24 fiber splice trays. This panel also includes a smooth sliding drawer type pull out system.

Features

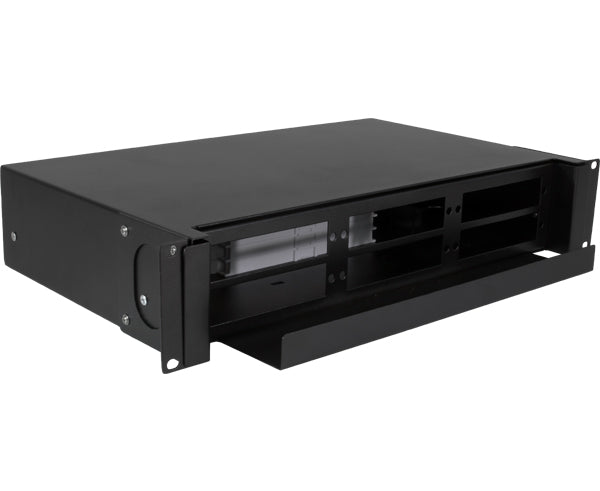

Slide-Out Fiber FDU Patch Panel Housing

• Fits up to 144 fiber splices
• Fits 6 LGX fiber optic adapter panels
• Includes six 24 fiber splice trays
• Durable powder coat finish
• Made from SPCC steel
• Smooth gliding pull out system

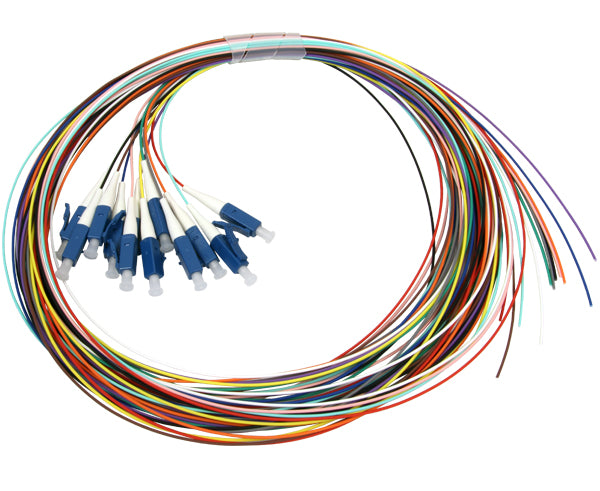

Single-Mode Fiber Optic Pigtails, LC, 12 Strand Unjacketed, 2 Meter

• Non-jacketed Pigtail for tighter spaces.
• Pr-terminated fiber to reduce installation time and ensure accuracy.
• 12x Single-Mode per-terminated LC connectors, ready to plug directly into an adapter panel.

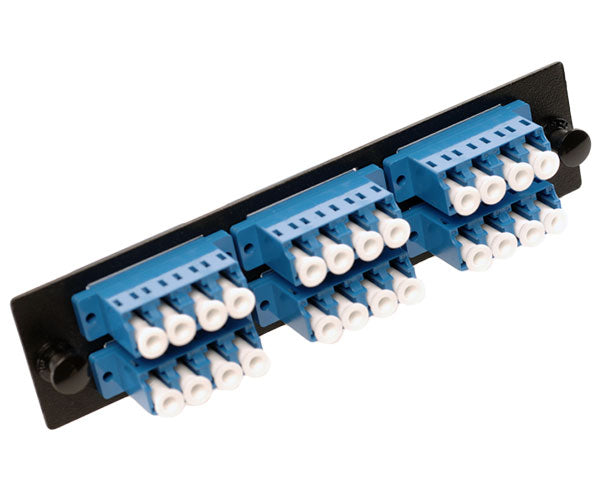

Fiber Adapter Plates

• Steel LGX type adapter plates with black paint
• LC duplex fiber adapters/couplers
• Metal clips secure the adapters/couplers in the adapter plates

Specifications

• Fiber Patch Panel Housing: 2U Steel Slide-Out Fiber Patch Panel
• Pigtails: 2 Meter 12 Fiber Single-Mode Pre-Terminated LC UnJacketed Pigtail

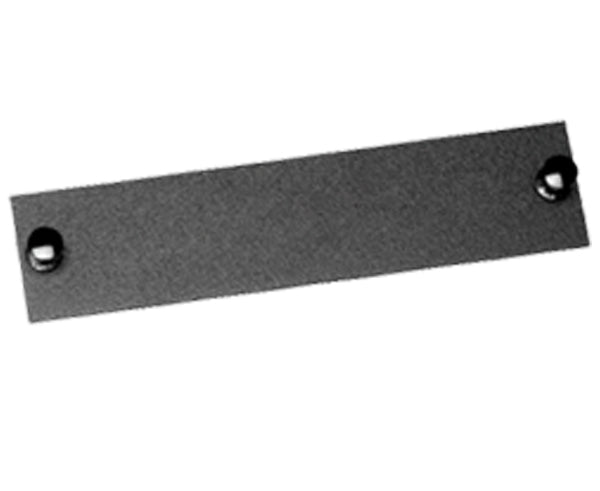

• Adapter Panels: LC LGX Fiber Adapter Panels / Blank LGX Adapter Plates
• Splice Trays: 6x - 24 Fiber Splice Trays

Physical Properties

• Color: Black
• Material: Powder Coated SPCC Steel

What's included

96 Fiber, LC Single-Mode Fiber Patch Panel Contents

• 1 - Slide-Out 2U Fiber Patch Panel Housing
• 8 - Single-Mode 2 Meter 12 Fiber LC UnJacketed Pigtail
• 4 - 12 Port, LC Single-Mode Duplex Adapter Panel
• 6 - 24 Fiber Splice Trays
• 144 Fiber Protective Sleeves
