AFL / Noyes M210 Multifunction OTDR - Discontinued 10/24/22

AFL / Noyes M210 Multifunction OTDR - Discontinued 10/24/22

AFL

SKU:M210-25K-01-HC1


Model
Call for Pricing
View full details

Description

M210 Multifunction OTDR with OPM, VFL

The NOYES M210 is the only inspection ready QUAD OTDR that combines OTDR, OPM and VFL capability with a proven, easy-to-use and easy-to-learn user interface. The M210 is the latest addition to the M200 family of OTDRs. Like other members of the M200 family, the M210 offers the intuitive Touch and Test user interface in a rugged, lightweight, easy-to-hold package ready for field use. The M210 features a more powerful processing engine, a higher resolution display and, for the first time in an OTDR of its size, an integrated Optical Power Meter.

Touch and Test simplifies the M210 user experience, minimizes human errors and reduces training time by providing one-touch access to the Full-Auto, Expert and Real-Time OTDR test modes, OPM measurement mode as well as the Results Management and Job Creation menus. The M210 allows setting Pass/Fail thresholds to industry standard TIA/ISO or user-values and will automatically alert users of failing fibers. Touch and Test enables both experts and novices alike to complete jobs more accurately and in less time.

Features

  • 30 dB dynamic range single-mode
  • 16-hour battery life
  • Remote display capable
  • Touch and Test® intuitive user interface
  • New faster processor
  • Crisp bright display for indoor/outdoor viewing
  • Integrated OPM standard; integrated VFL standard

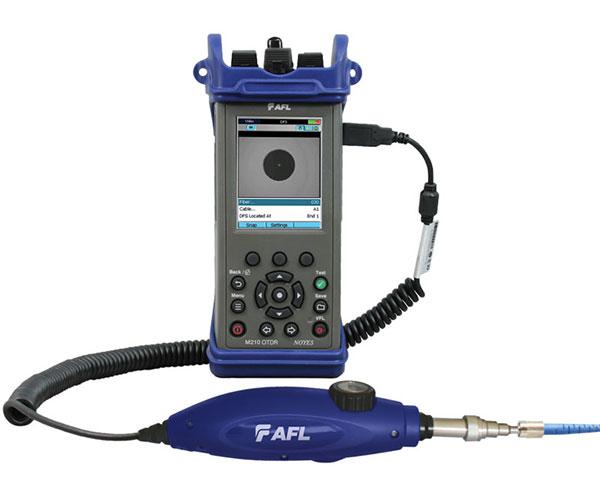

  • Inspection capable with DFS1 Digital FiberScope
  • Rugged, hand-held, lightweight (<1 kg)
  • Prepaid Calibration plans, Cal and Cal Plus

Test Modes

  • Full Auto OTDR – Normal (point-to-point) fiber cable construction testing and fault location
  • Expert OTDR – Full function OTDR for experienced users includes Auto and Auto-Once setup
  • Real-Time OTDR – Fault location, splice verification
  • Optical Power Meter – Measure optical power or fiber loss
  • Visual Fault Locator – Red laser for fiber bend and break location

Languages Supported

  • English
  • French
  • Italian
  • German
  • Polish
  • Spanish
  • Portugese
  • Turkish
  • Chinese (Simplified, Traditional)

Specifications


Additional Information

M210 Multifunction Micro OTDR

What's In The Box

    Qty 1 - AFL / Noyes M210 Multifunction OTDR
 Description: Part No.
  M210 QUAD Certification Kit (Tier 1 and 2): M210 QUAD, OLS4, DFS1* in hard case   M210-25K-01-HC2
  M210 QUAD Test and Inspection Kit (Tier 2): M210 QUAD, DFS1* in hard case   M210-25K-01-HC1
  M210 OTDR, SM (1310/1550), OPM, VFL in hard case   M210-20U-01-HC
  M210 OTDR, MM (850/1300) OPM, VFL in hard case   M210-22U-01-HC
  M210 OTDR, QUAD (850/1300/1310/1550), OPM, VFL in hard case   M210-25U-01-HC
  M210 OTDR, SM (1310/1550) OPM, VFL in soft case   M210-20U-01
  M210 OTDR, MM (850/1300) OPM, VFL in soft case   M210-22U-01
  M210 OTDR, QUAD (850/1300/1310/1550), OPM, VFL in soft case   M210-25U-01
