Description

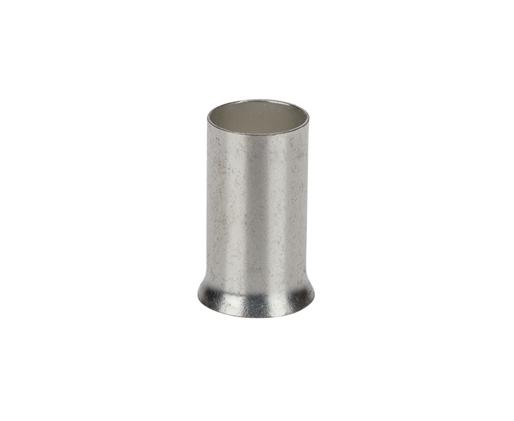

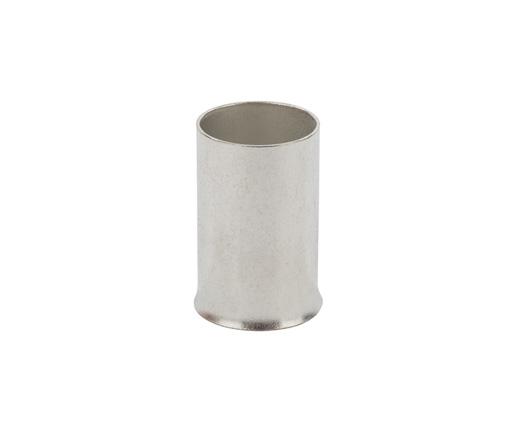

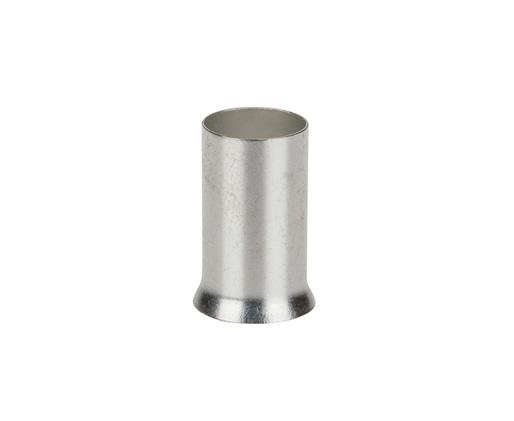

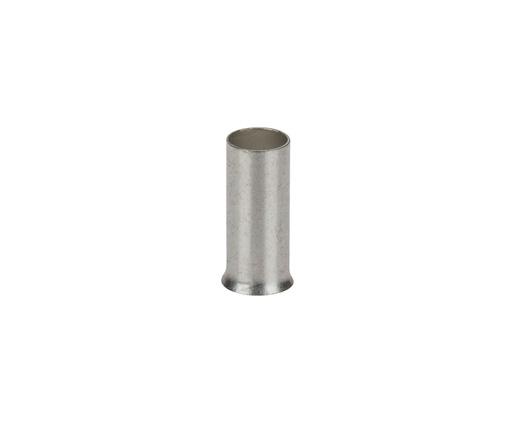

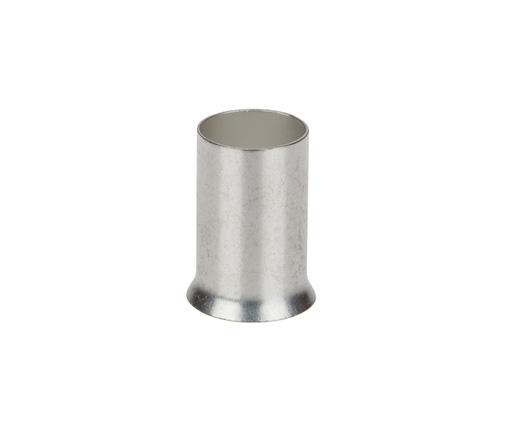

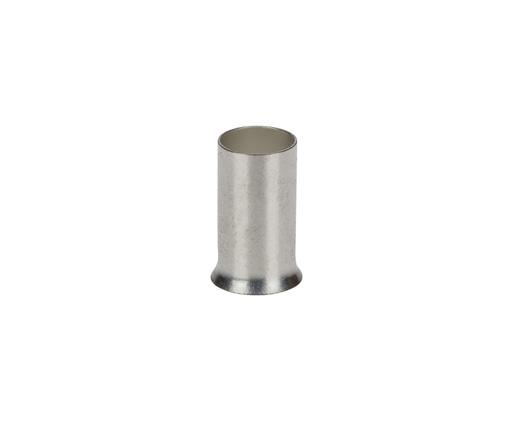

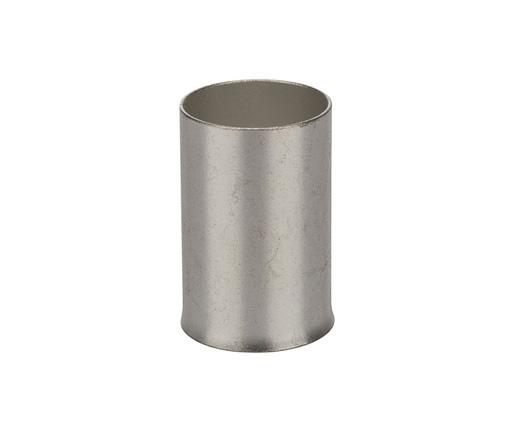

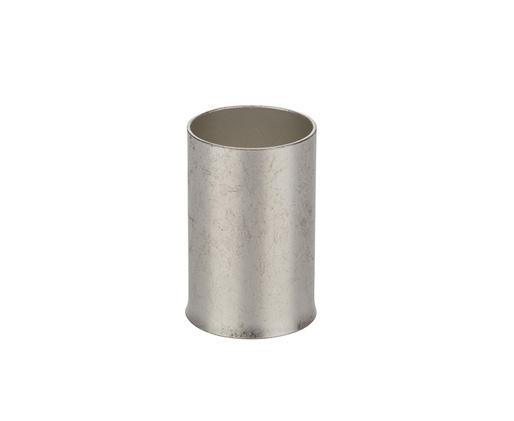

Aluminum Flexible Cable Sleeve Connectors
Primus Cables’ Aluminum Flexible Cable Sleeve Connectors are for use with fine-stranded and flexible wire. Made from copper tube and plated for corrosion resistance.
Features
Features
- For use with fine-stranded and flexible wire.
- Made from copper tube and plated for corrosion resistance.
- Belled end allows for easy cable insertion.
Specifications
Specifications
| Part# | Sleeve I.D. | Comm. Cable Size |
Comm. Cable | Length (in.) |
| NPNB-FS008 | 0.180 | 8 AWG | 0.146 | 0.4724 |
| NPNB-FS006 | 0.236 | 6 AWG | 0.184 | 0.4724 |
| NPNB-FS004 | 0.291 | 4 AWG | 0.232 | 0.4724 |
| NPNB-FS002 | 0.336 | 2 AWG | 0.292 | 0.5906 |
| NPNB-FS001 | 0.415 | 2 AWG | 1 AWG | - | 0.332 | 0.7087 |
| NPNB-FS010 | 0.500 | 1/0 AWG | 2/0 AWG | 0.373 | 0.419 | 0.8661 |
| NPNB-FS020 | 0.579 | 2/0 AWG | 3/0 AWG | - | 0.470 | 0.9843 |
| NPNB-FS030 | 0.657 | 3/0 AWG | 4/0 AWG | - | 0.528 | 1.1812 |
| NPNB-FS040 | 0.738 | 4/0 AWG | 250 MCM | - | 0.575 | 1.2598 |
| NPNB-FS350 | 0.798 | 300 MCM | 350 MCM | 0.630 | 0.681 | 1.2598 |
What's In The Box
What's In The Box
-
(1 pack) Aluminum Flexible Cable Sleeve Connector
