Description

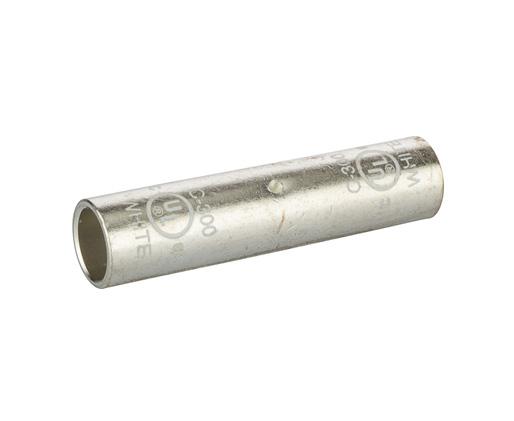

Copper Splice Long Barrel Compression Connectors
Primus Cables’ copper splice compression connectors are produced from high conductivity copper tubing. Serrations indicate proper crimp locations.
Features
- Produced from high conductivity copper tubing.
- Serrations indicate proper crimp locations.
- Tin-plated to provide corrosion resistance.
- Marked with die index and color coded.
- Suitable for use at voltages up to 35KV provided connector is properly installed to cable manufacturer voltage stress relief instructions.
- 5KV is the maximum voltage in all bare splices.
Specifications
- UL486A Listed Wire Connector.
- UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG).
- Max ampacity is based on NEC 310.15, insulation type, and conductor material. Please consult your current NEC manual.
- * CLASS B OR C BUILDING WIRE CU CABLE ONLY.
- Temperature Rating: 90 °C.
- Voltage: 600V max.
- 9CU.
| Part# | Wire Range | Expanded Wire Range | Color Code | I.D. | O.D. | Length (L) |

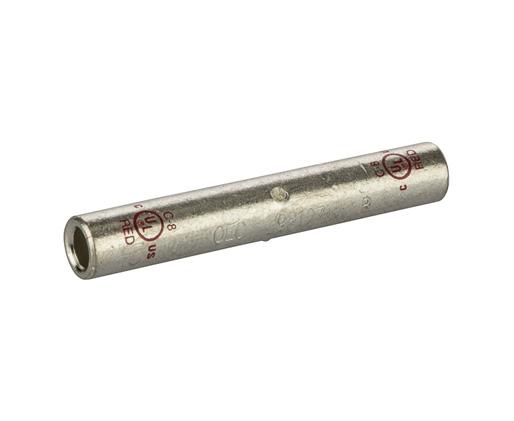

| NPNB-C-8 | 8 AWG | 8 AWG | Red | 0.173 | 0.272 | 1.752 |

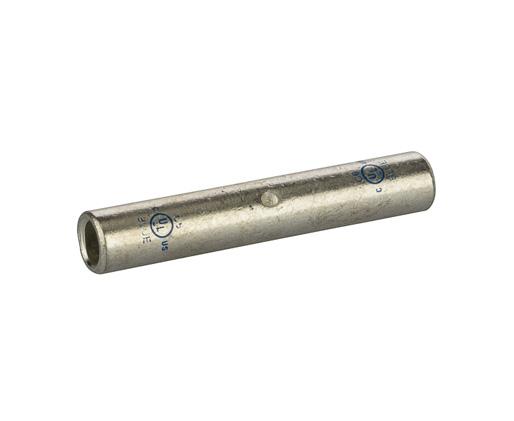

| NPNB-C-6 | 6 AWG | 6-8 AWG | Blue | 0.205 | 0.295 | 1.752 |

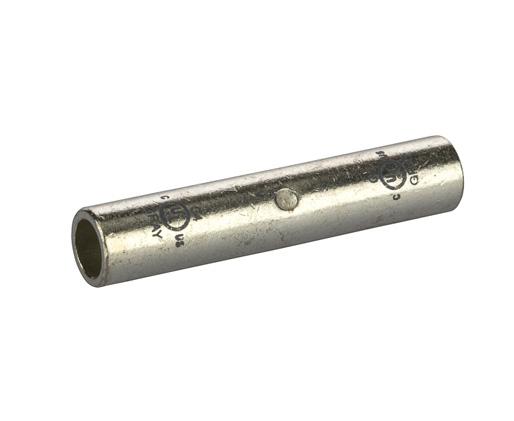

| NPNB-C-4 | 4 AWG | 4-6 AWG | Gray | 0.252 | 0.343 | 1.752 |

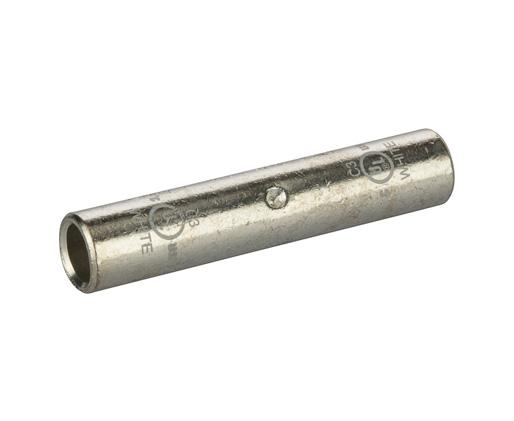

| NPNB-C-3 | 3 AWG | 3-6 AWG | White | 0.282 | 0.378 | 2.381 |

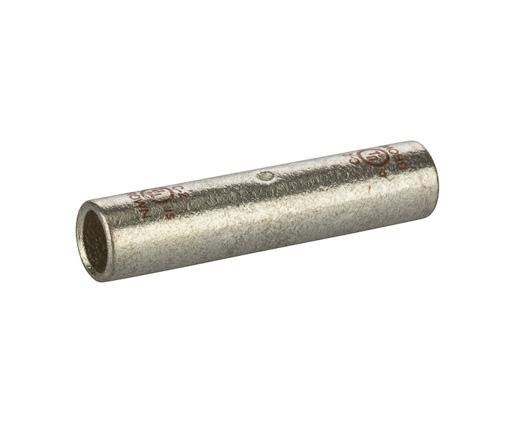

| NPNB-C-2 | 2 AWG | 2-6 AWG | Brown | 0.315 | 0.421 | 1.902 |

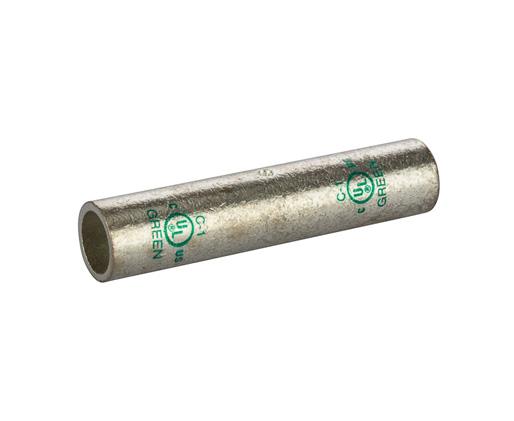

| NPNB-C-1 | 1 AWG | 1-6 AWG | Green | 0.358 | 0.469 | 2.201 |

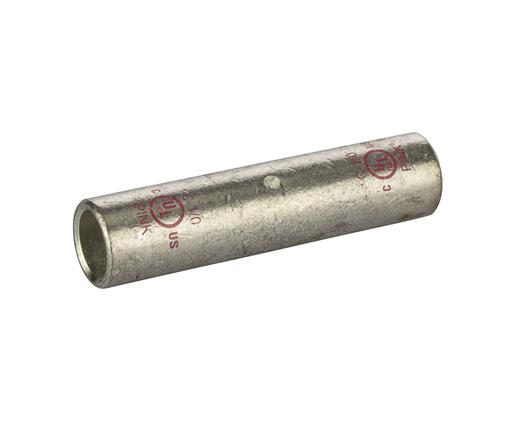

| NPNB-C-1/0 | 1/0 AWG | 1/0-6 AWG | PInk | 0.390 | 0.520 | 2.201 |

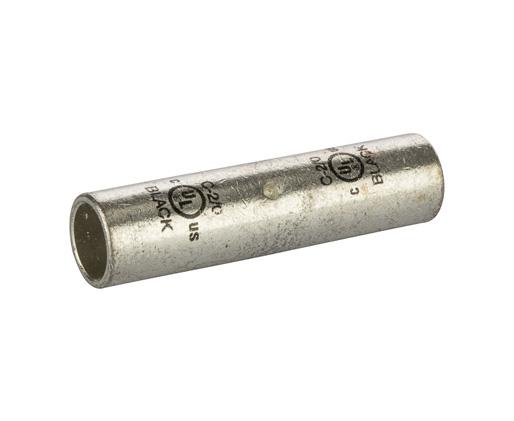

| NPNB-C-2/0 | 2/0 AWG | 2/0-4 AWG | Black | 0.441 | 0.563 | 2.252 |

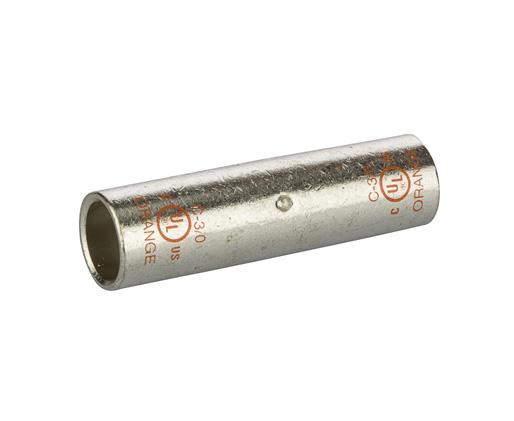

| NPNB-C-3/0 | 3/0 AWG | 3/0-2 AWG | Orange | 0.492 | 0.622 | 2.252 |

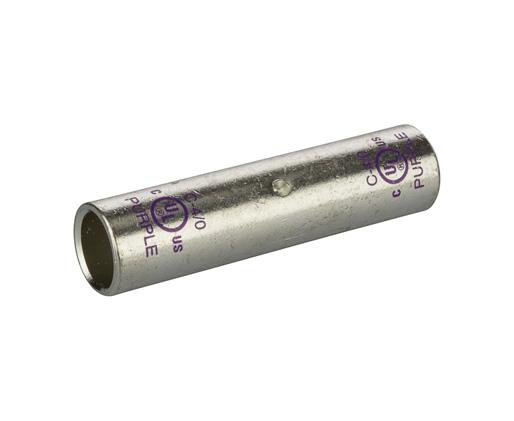

| NPNB-C-4/0 | 4/0 AWG | 1/0 -1 AWG | Purple | 0.547 | 0.689 | 2.752 |

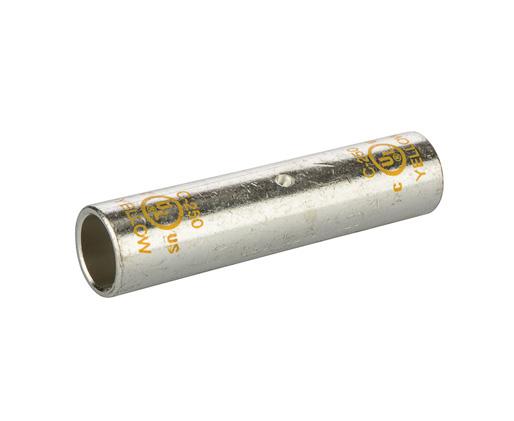

| NPNB-C-250 | 250 MCM | 250 MCM-1/0 AWG | Yellow | 0.594 | 0.752 | 3.252 |
| NPNB-C-300 | 300 MCM | 300 MCM-2/0 AWG | White | 0.657 | 0.815 | 3.504 |

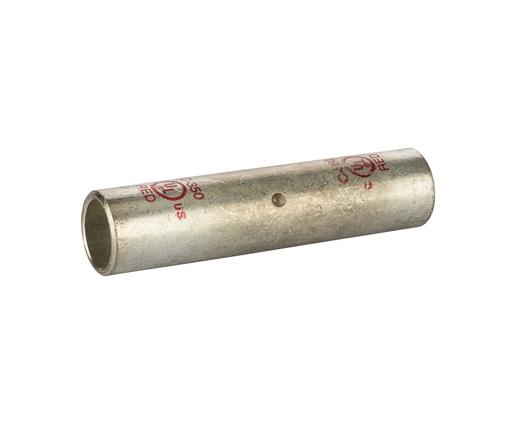

| NPNB-C-350 | 350 MCM | 350 MCM-3/0 AWG | Red | 0.701 | 0.874 | 3.752 |

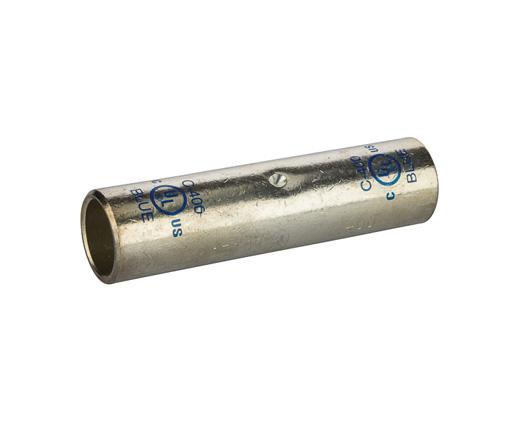

| NPNB-C-400 | 400 MCM | 400 MCM-4/0 AWG | Blue | 0.764 | 0.949 | 3.752 |
| NPNB-C-500 | 500 MCM | 500-250 MCM | Brown | 0.835 | 1.063 | 4.252 |

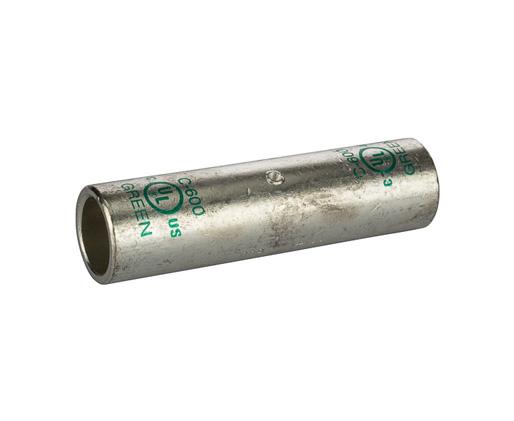

| NPNB-C-600 | 600 MCM | 600-250 MCM | Green | 0.925 | 1.189 | 4.500 |

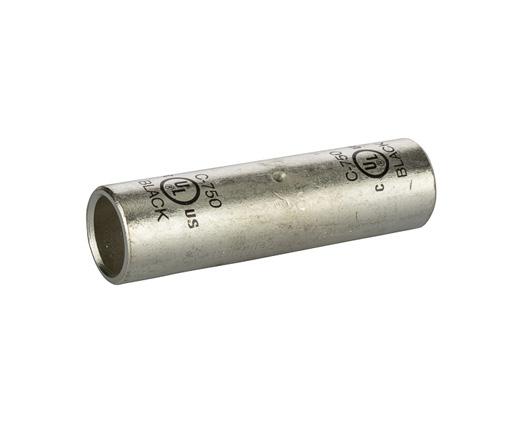

| NPNB-C-750 | 750 MCM | 750-500 MCM | Black | 1.031 | 1.311 | 4.752 |

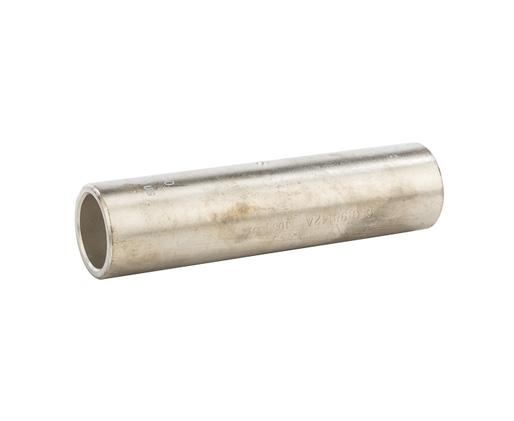

| NPNB-C-1000 | 1000 MCM | 1000-750 MCM | White | 1.189 | 1.527 | 6.122 |
What's In The Box
- Qty 1 - Copper Splice Compression Connector
