Description

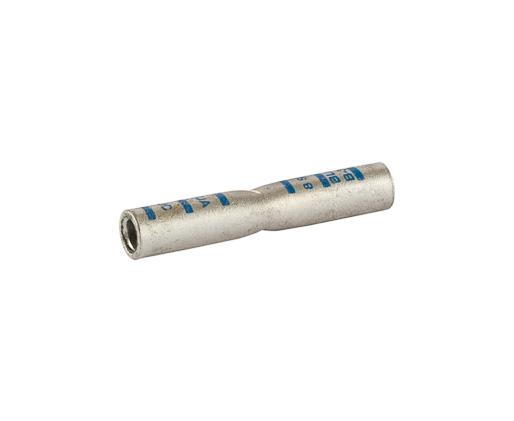

Dual Rated, Aluminum Splice Compression Connectors
Primus Cables’ compression connectors are produced from high conductivity aluminum tubing and have a center stop that assures proper cable installation.
Features
Features
- Produced from high conductivity aluminum tubing.
- Center stop assures proper cable installation.
- Electro-tin plated for corrosion resistance.
- Color coded and marked with die index information.
- Pre-filled with oxide inhibitor and capped with color coded cap.
- Listed for 35KV maximum when properly installed to cable manufactures specifications.
Specifications
Specifications
- cULus Listed for Wire Connector.
- UL486A/B Listed for Wire Connector.
- UL Listed to 35kV when properly installed to cable manufacturers specifications.
- Temperature Rating: 90 °C. AL9CU
- Crimp Tool: N1240, N121D.
- Voltage: 600V max. (2000V max. per UL486B).
| Part# | Wire Range | Expanded Wire Range | Color Code | O.D. | I.D. | Length (L) |
| NPNB-ASC1T | 1 AWG | 1-6 AWG | Blue | 0.528 | 0.347 | 2.378 |
| NPNB-ASC2T | 2 AWG | 2-6 AWG | Gray | 0.528 | 0.307 | 2.378 |

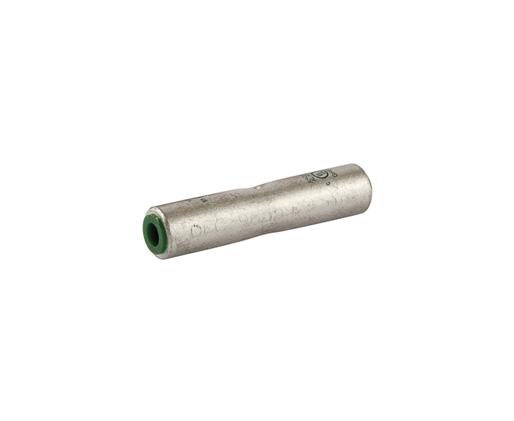

| NPNB-ASC4T | 4 AWG | 4-6 AWG | Green | 0.437 | 0.248 | 2.000 |
| NPNB-ASC6T | 6 AWG | 6-8 AWG | Pink | 0.339 | 0.197 | 1.630 |
| NPNB-ASC8T | 8 AWG | 8 AWG | Gold | 0.297 | 0.146 | 1.750 |

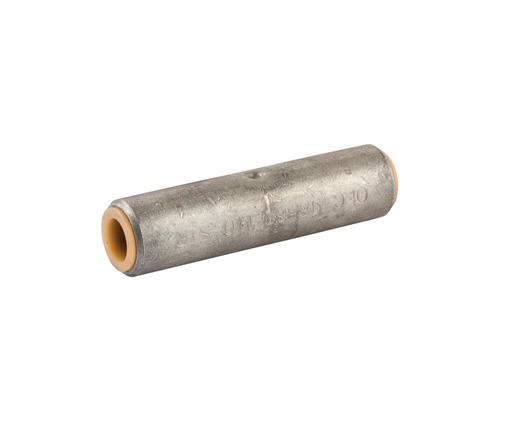

| NPNB-ASC1/0T | 1/0 AWG | 1/0-6 AWG | Tan | 0.630 | 0.390 | 2.500 |
| NPNB-ASC2/0T | 2/0 AWG | 2/0-4 AWG | Olive | 0.689 | 0.440 | 2.630 |

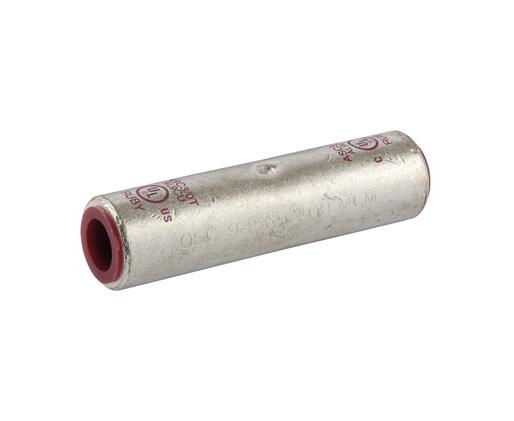

| NPNB-ASC3/0T | 3/0 AWG | 3/0-2 AWG | Ruby | 0.760 | 0.480 | 2.878 |

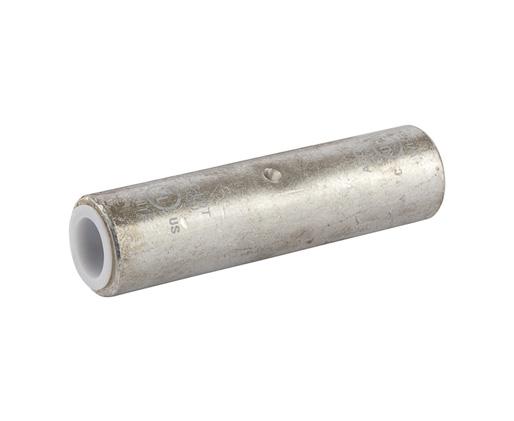

| NPNB-ASC4/0T | 4/0 AWG | 4/0-1 AWG | White | 0.839 | 0.550 | 3.130 |

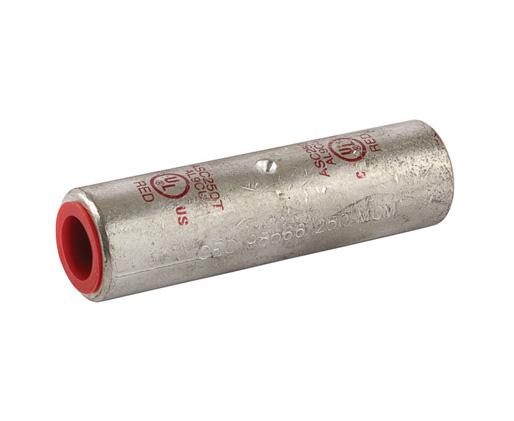

| NPNB-ASC250T | 250 MCM | 250 MCM-1/0 AWG | Red | 0.920 | 0.590 | 3.248 |

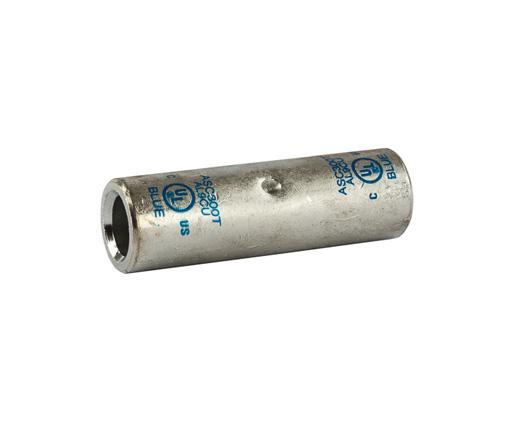

| NPNB-ASC300T | 300 MCM | 300 MCM-2/0 AWG | Blue | 1.010 | 0.650 | 3.248 |

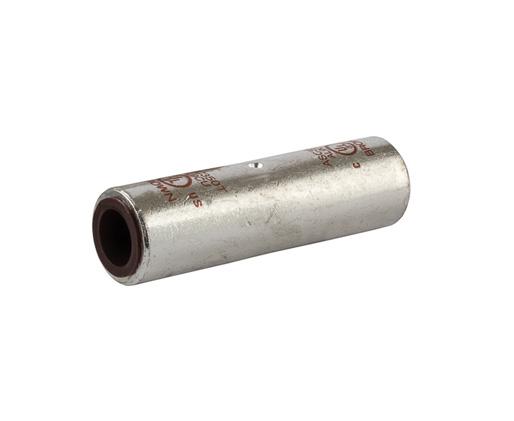

| NPNB-ASC350T | 350 MCM | 350 MCM-3/0 AWG | Brown | 1.120 | 0.720 | 3.878 |

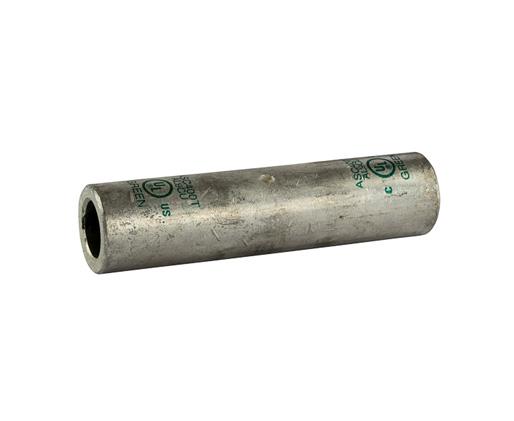

| NPNB-ASC400T | 400 MCM | 400 MCM-4/0 AWG | Green | 1.190 | 0.760 | 4.878 |

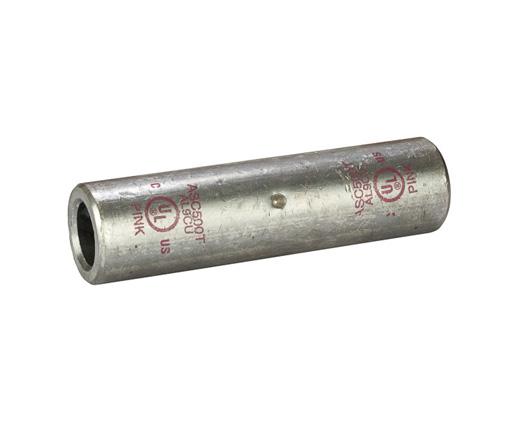

| NPNB-ASC500T | 500 MCM | 500-250 MCM | Pink | 1.320 | 0.840 | 5.000 |

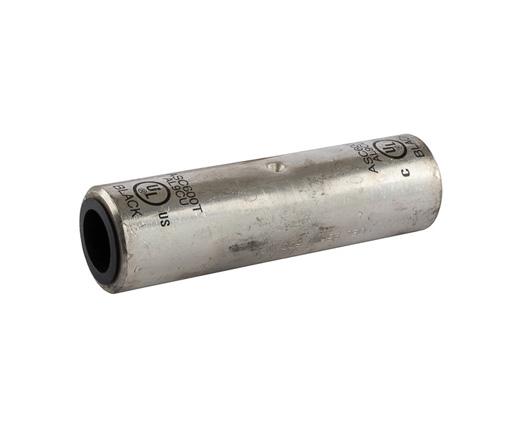

| NPNB-ASC600T | 600 MCM | 600-250 MCM | Black | 1.440 | 0.920 | 5.130 |

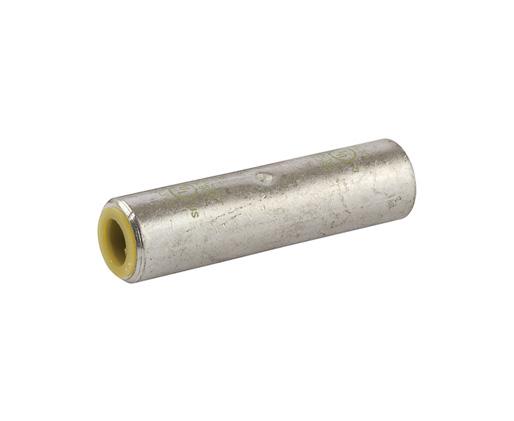

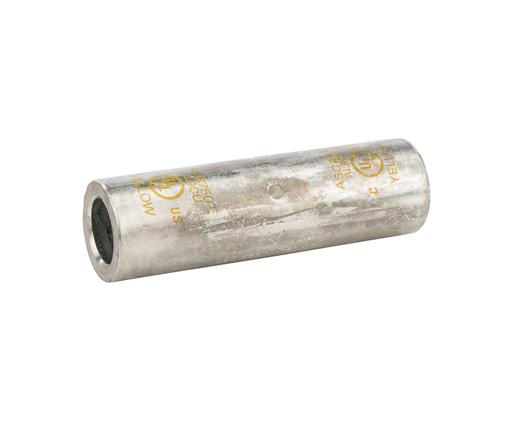

| NPNB-ASC750T | 750 MCM | 750-500 MCM | Yellow | 1.600 | 1.030 | 5.378 |

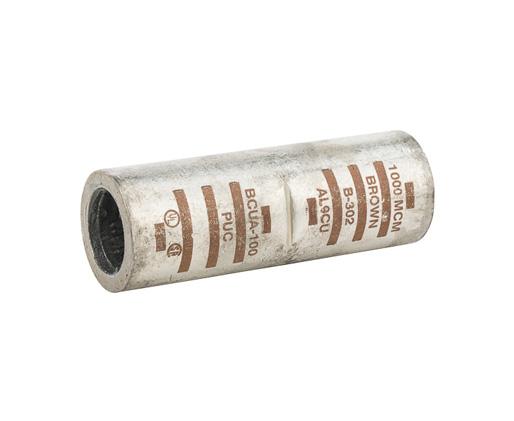

| NPNB-ASC1000T | 1000 MCM | – | Brown | 1.844 | 1.153 | 5.250 |
What's In The Box
What's In The Box
- Qty 1 - Compression Connector
