Description
Easy-Splice Gel Tap Splice Kit W Connector
In-line gel splice kit provides a sealed splice for underground, buried and overhead applications.
Features
Features

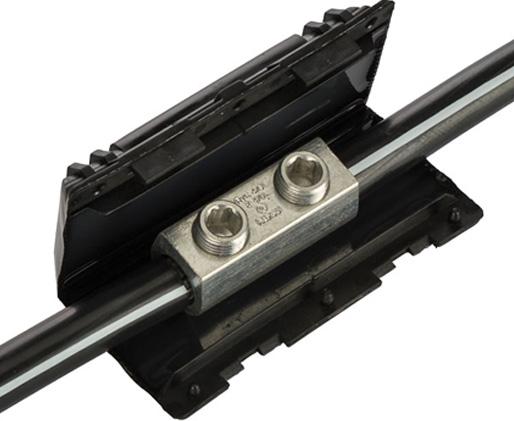

In-Line Gel (ESGS)
- In-line gel splice kit provides a sealed splice for underground, buried and overhead applications.
- Closure offers a fast and simple method for splicing, insulating and environmentally sealing low voltage cable splices.
- Simply install the connector on a copper or aluminum cable, place it in the closure, and snap closed.
- The splice kit is watertight for use in all locations.
- Sealing and corrosion protection provided by sealant gel.

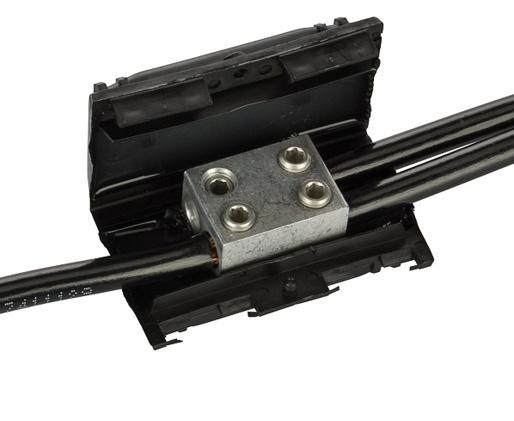

Gel Tap (ESGTS)
- Fast and simple method for connecting, insulating, and environmentally sealing low-voltage splices.
- Designed for underground and overhead environments and is useful for street lighting applications.
- The kit’s dual-rated mechanical connector splices a wide range of cables, including copper and aluminum.
- Four port design allows maximum inventory flexibility.
- Sealant gel protects the connection from moisture ingress, corrosion and pollution.
- Hinged splice closure can be installed over the connector in seconds by simply snapping the cover shut.
Specifications
Specifications
| Part No. | Wire Range | Length (In.) | Width (In.) | Height (In.) |
| NPNB-ESGS-4/0 | 2-4/0 AWG | 4.229 | 1.973 | 1.097 |
| NPNB-ESGTS-2 | 14-2 AWG | 2.750 | 1.625 | 1.063 |
| NPNB-ESGTS-2/0 | 14-2/0 AWG | 4.250 | 2.000 | 1.188 |
What's In The Box
What's In The Box
- Qty 1 - Easy-Splice Gel Tap Splice Kit W Connector
