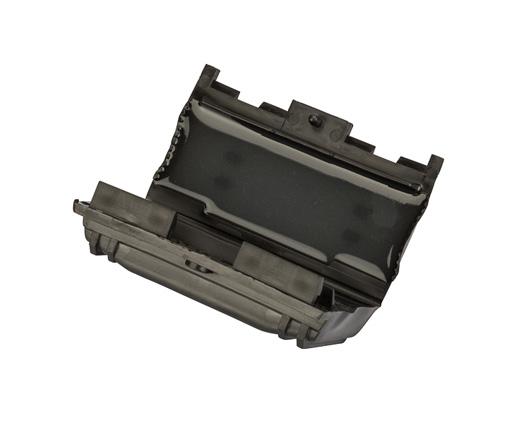

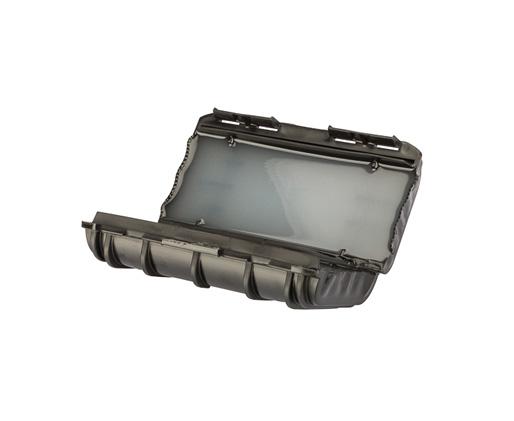

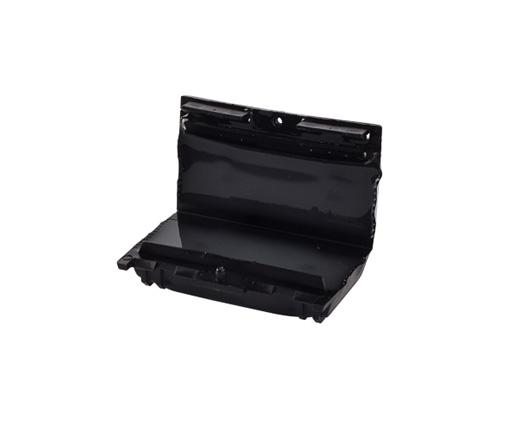

Easy-Splice H-Tap Gel Splice Covers with Connector - Discontinued

Easy-Splice H-Tap Gel Splice Covers with Connector - Discontinued

Primus Cable

SKU:NPNB-ESGHS-BG


Splice Kit
Regular price Price: $20.88
Regular price Sale price Price: $20.88
*Shipping calculated at checkout
Sale Sold out
View full details

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

Easy-Splice Gel Tap Splice Kit W Connector

Ideal for splicing and tapping temporary and permanent wiring, Easy-Spice splice kits are the perfect solution for insulating difficult wire terminations on motor leads, and for quick power-ups in a consistently changing environment.

Features

Features

  • Low-voltage H-frame closure insulates and seals low-voltage cable-taps and splices made with H-frame compression connectors.
  • The closure utilizes sealing gel material to seal and protect the connection from moisture ingress, corrosion, and pollution.
  • H-tap gel splice covers do not include a connector.

      Specifications

      Specifications

      Part No. Wire Range: Min Wire Range: Tap Length (In.) Width (In.) Height (In.)
      NPNB-ESGHS-BG 6-2 AWG 14-8 AWG 2.700 1.583 1.055
      NPNB-ESGHS-O 2-2/0 AWG 14-6 AWG 4.230 1.988 1.083
      NPNB-ESGHS-N 350 MCM 4/0 AWG 6.000 3.240 2.110
      • Temperature Rating: -40 °C to 90 °C, -40 °F to 194°F .
      • 1000V, UV resistant.
      • Qualified to ANSI C119.1-1986 for underground splicing.
      • Application: The low-voltage H-frame closure is ideal for both underground and overhead applications and is especially useful for street lighting applications.
      • Installation: To install, simply place the connection on the closure and press the closure together.

        What's In The Box

        What's In The Box

        • Qty 1 - Easy-Splice H-Tap Gel Splice Covers with Connector
