Description

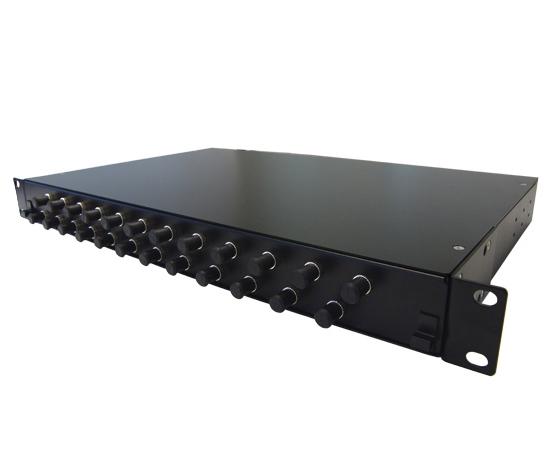

24 Port 1U Fiber Patch Panel Preloaded with Simplex Multimode ST Connectors
This rack mount fiber patch panel is designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. There are two cable entry points on the back of the fiber housing fitted with rubber grommets to protect the fiber optic cable from damage. Along with being loaded with 24 ST connections, each fiber enclosure includes one cable routing spool and two 12 fiber splice trays. Also included are zip ties, cable routing clamps, mounting screws, fiber splice sleeves and installation instructions.
To make this a complete unit ready for fusion splicing and patching out your existing or newly purchased fiber optic cable, don't forget to add two 12 strand ST fiber pigtails to your order.
Specifications
Capacity
Splice Trays: (2) 12 Fiber Splice Trays Included
Connections: 24 ST Simplex Connections
Physical Properties
Depth: 11"
Height: 1.75"
Width: 19"
Color: Black
Material: Steel
Tray Material: Aluminum
Spec Sheet
