Description

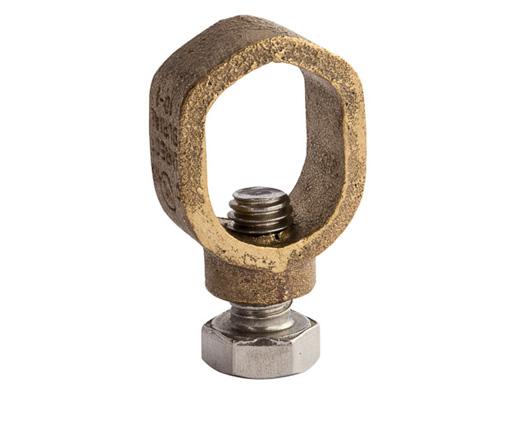

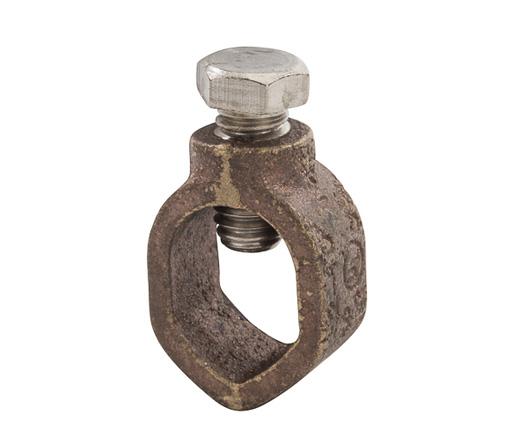

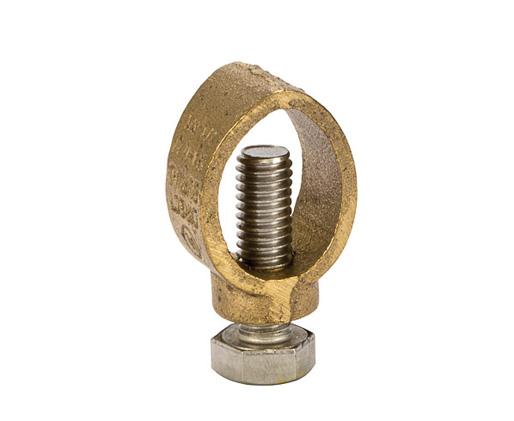

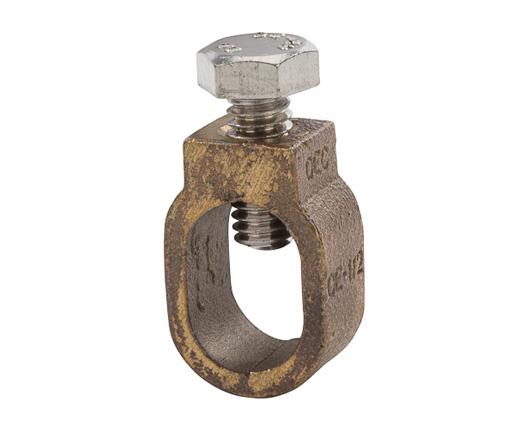

Ground Rod Connector
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
- Ground rod clamps are made from silicon bronze with 304 stainless steel screws for maximum strength.
- All standard duty and heavy duty ground clamps are UL Listed for direct burial in earth or concrete.
- Available with silicon bronze screws.
Specifications
- cULus Listed 467 Grounding and Bonding.
- UL467 Listed, Grounding & Bonding.
| Part# | Ground Rod Size (in.) | Rebar Size (in.) | Ground Wire Maximum (in.) |
| NPNB-GRC-34 | 3/4 | 5/8 |
10 SOL – 1 STR |
| NPNB-GRC-38 | 3/8 | - |
10 SOL – 4 STR |
| NPNB-GRC-50 | 1/2 | 3/8 |
10 SOL – 2 STR |
| NPNB-GRC-58 | 5/8 | 1/2 |
10 SOL – 2 STR |
What's in the box?
What's in the box?
-
Ground Rod Connector
