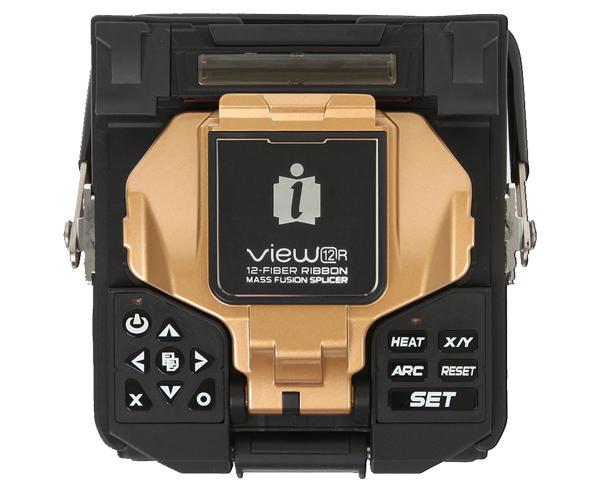

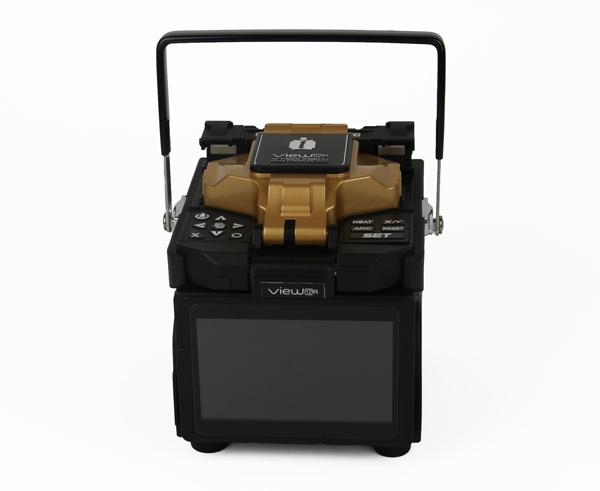

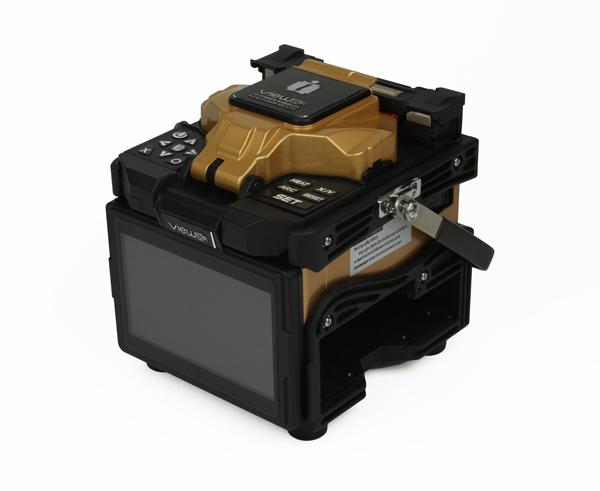

VIEW 12R, World's Most Accurate & Fastest Ribbon Splicer

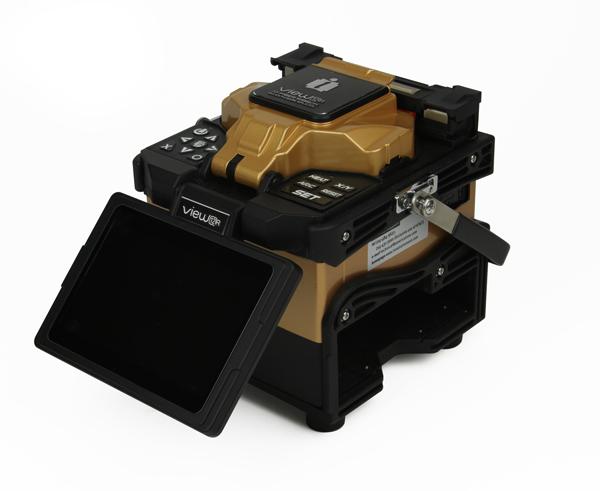

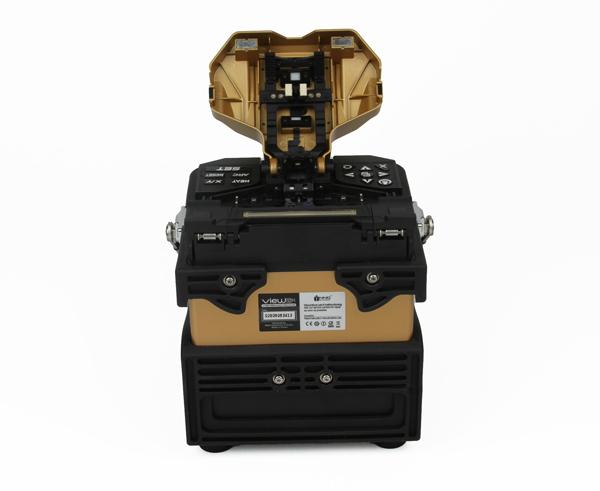

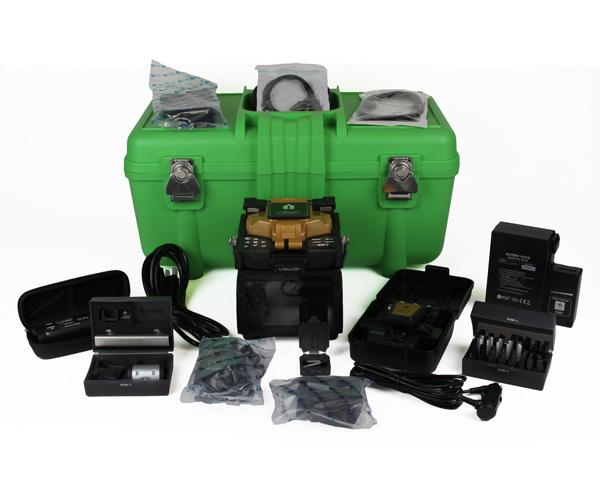

View 12R, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer. The View 12R provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice / heat cycles, and universal holder both for 250μm & 900μm single fiber. The View 12R ensures the most reliable work experiences to our valuable customers.
Features
Sophisticated Connection for Best Results

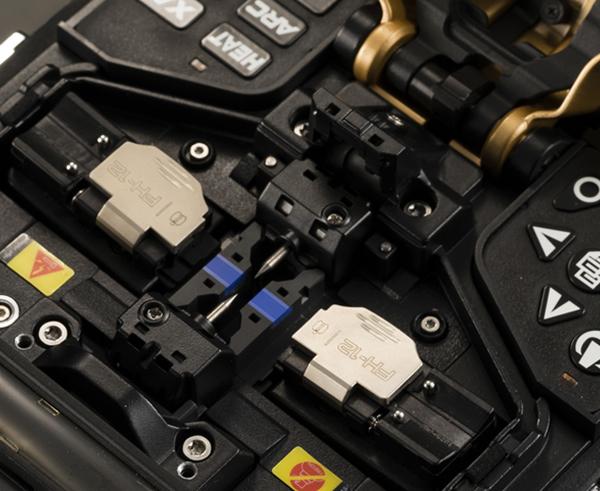

- Motorized Clamp Alignment System
- The Highest Magnification and Resolution
- Double Tapping (Zoom in & out)
- The Fastest Working Time

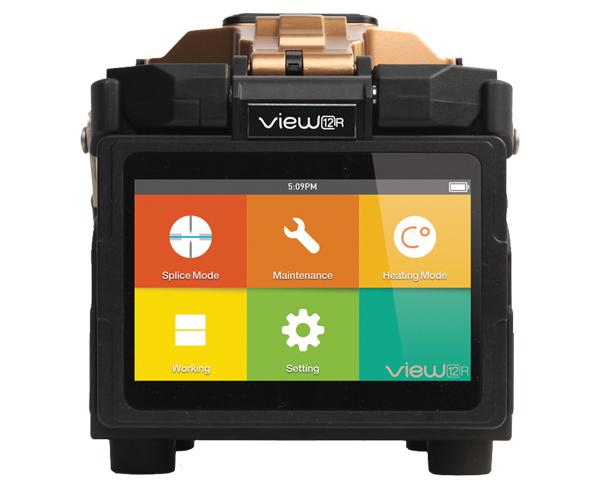

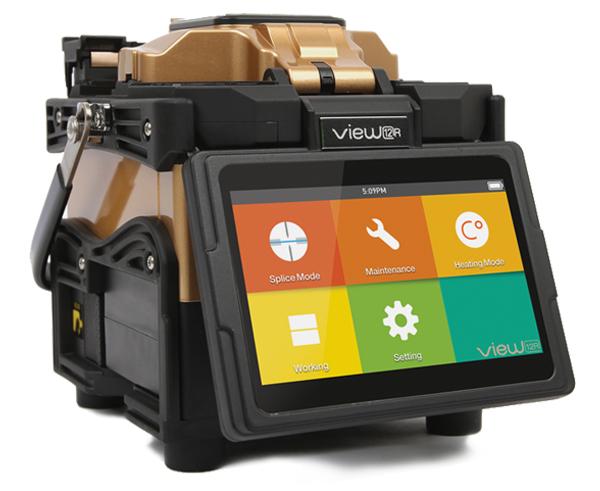

- 5” Color LCD Touch Screen
- Ultra-High Capacity Battery
- Universal Single Fiber Holder
Specifications
| Specifications | ||
|---|---|---|
| Model | View 12R | |
| Dimensions |
160H x 133W x 155D mm (excluding rubber bumper) 167H x 143W x 163D mm (including rubber bumper) |
|
| Weight |
1.98 KG (without battery) 2.64 KG (with battery) |
|
| Number of Fiber | 1, 2, 4, 6, 8, 10, 12 | |
| Applicable Fibers |
SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
|
| Compatible Fiber / Cable |
Ribbon: 0.25~0.4 mm Single: 250 μm & 900 μm |
|
| Cleaved Length | 10~13 mm | |
| Cladding Diameter | 125 μm | |
| Splicing Mode | Max 100 modes | |
| Heating Mode | Max 32 modes | |
| Typical Splice Loss |
SM: 0.05dB MM: 0.02dB DS: 0.08dB NZDS: 0.08dB (ITU-T standard) |
|
| Return Loss | >> 60 dB | |
| Lighting | 3 White LEDs | |
| Splicing Time |
Ribbon fiber: 15 sec Single fiber: 9 sec |
|
| Estimated Splice Loss | Available | |
| Heating Sleeve Length | 60mm, 50mm, 40mm, Micro | |
| Heating Time | Typical 20 sec | |
| Results Storage | Last 5,000 results | |
| Tension Test | 1.96~2.25N | |
| Operating Condition |
Altitude: 0~3,660m above sea level Humidity: 0~95% relative humidity Temperature: -10~50℃ Max Wind: 15m/s |
|
| Storage Condition |
Humidity: 0~95% relative humidity Temperature: -40~80℃ |
|
| Display |
90° bi-directional view 5.0” Color High Resolution Display |
|
| Fiber View & Magnification |
X, Y, XY, X/Y 250x Magnification |
|
| Power Supply | AC Input 100-240V, DC Input 9-14V | |
| No. of Splice & Heating With Battery |
9000mAh Battery Capacity Typical 220 times (Splice + Heat) |
|

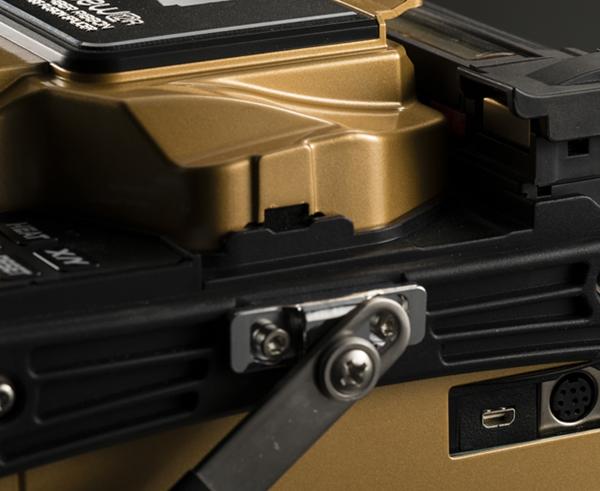

| Operating Methods | Button / Touch Screen | |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature | |
| Electrode Life | 3000 arcs, can be extended by using an electrode grinder | |
| Terminal | USB Type-C | |
| Durability Tests |
Shock resistance: Drop from 76cm Dust Resistance: Test in the dust chamber for 8 hours (IP5X) Water Resistance: Dripping water when tilted up to 15° (IPX2) |
|
