VIEW 3, An Active Clad-Alignment Splicer with the World’s Highest Fiber Image Magnification Rate.

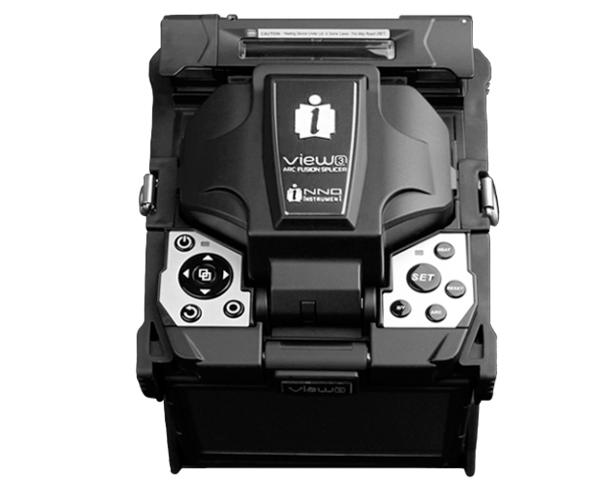

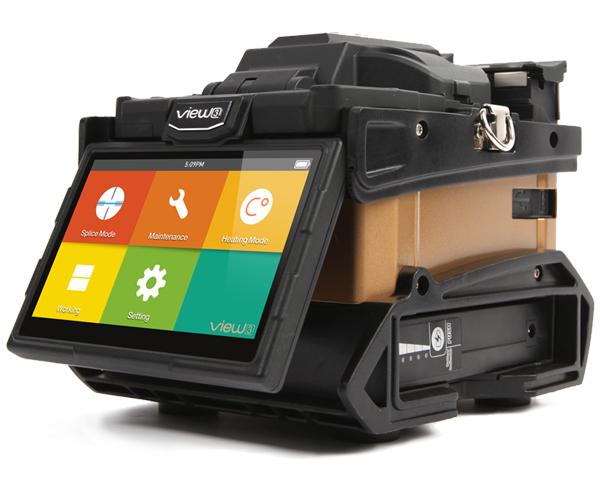

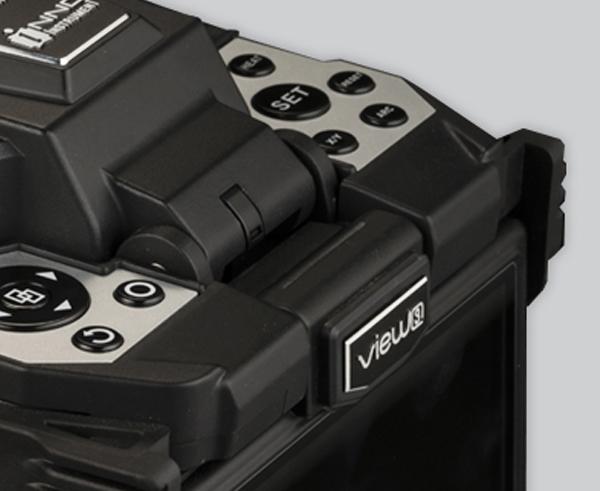

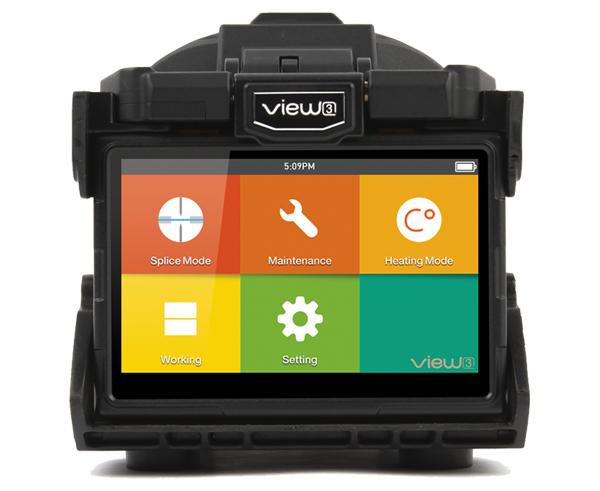

View 3 is the most dependable fusion splicer in the market. The 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 3 is the new industry standard of active clad-alignment splicer in the telecommunications industry
Features
New Industry Standard for Active V-Groove Fusion Splicer

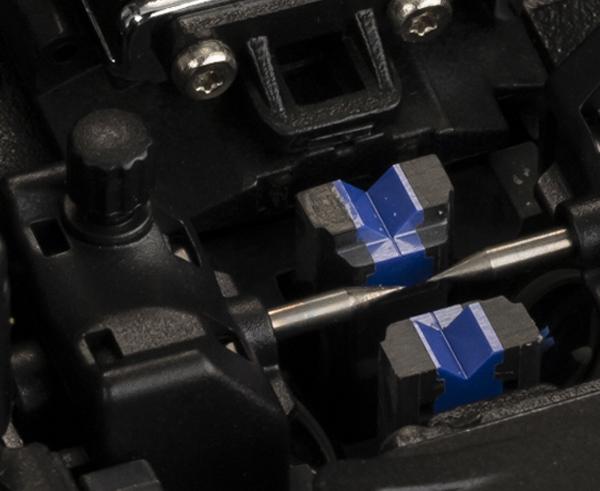

- Active V-Groove Clad Alignment Splicing Method
- The Highest Magnification and Resolution
- 5” Color LCD Touch Screen
- Double Tapping (Zoom in & out)
- Detachable SOC Holder and Heating Oven
- 3 Bright LEDs for Dark Environment
- Ceramic Clamp for Improved Durability
Specifications
| Specifications | ||
|---|---|---|
| Model | View 3 | |
| Dimensions |
143H x 130W x 155D mm (excluding rubber bumper) 152H x 147W x 175D mm (including rubber bumper) |
|
| Weight |
2.31KG (with battery) 1.95KG (without battery) |
|
| Number of Fiber | Single | |
| Applicable Fibers |
SM(ITU-T G.652 & G.657) MM(ITU-T G.651) DS(ITU-T G.653) NZDS(ITU-T G.655) |
|
| Compatible Fiber / Cable | 0.25mm - 3.0mm / Indoor Cable | |
| Cleaved Length |
Diameter 0.125mm - 1mm Cleave Length 8-16mm |
|
| Cladding Diameter | 80µm - 150µm | |
| Splicing Mode | Max 128 modes | |
| Heating Mode | Max 32 modes | |
| Typical Splice Loss |
SM: 0.03dB MM: 0.02dB DS: 0.05dB NZDS: 0.03dB G.657:0.03dB (ITU-T-standard) |
|
| Return Loss | >> 60 dB | |
| Lighting | 3 White LEDs | |
| Splicing Time |
Quick mode 7 sec SM mode 9 sec |
|
| Estimated Splice Loss | Available | |
| Heating Sleeve Length | 20mm - 80mm | |
| Heating Time | FP-03 typical heating 13 sec | |
| Results Storage | The last 10,000 results | |
| Tension Test | 1.96 - 2.25N | |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% relative humidity Temperature: -10 - 50°C Wind: 15m/sec |
|
| Storage Condition |
Humidity: 0-95% relative humidity Temperature: -40~80℃ |
|
| Display |
90° bi-directional view 5.0" Color High Resolution Display |
|
| Fiber View & Magnification |
X, Y, XY, X/Y 520X Magnification |
|
| Power Supply | AC Input 100-240V, DC Input 9-14V | |
| No. of Splice & Heating With Battery |
4200mAh Battery Capacity Typical 170 times (Splice + Heat) |
|
| Operating Methods | Button / Touch Screen | |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature | |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder | |
| Terminal | USB2.0/ Mini USB | |
