Description
View 8+ Premium Core-alignment Splicer with Wi-Fi

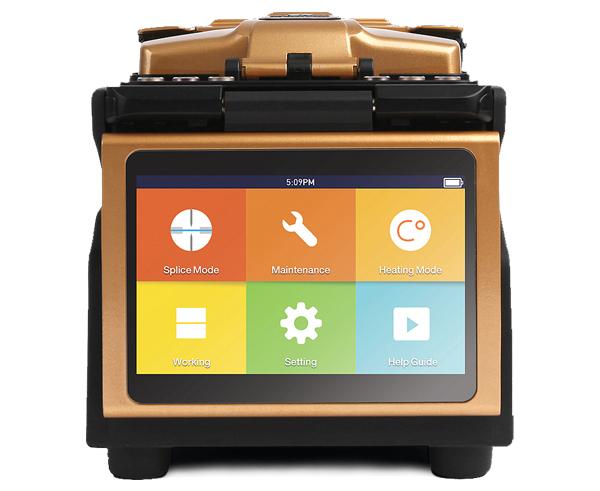

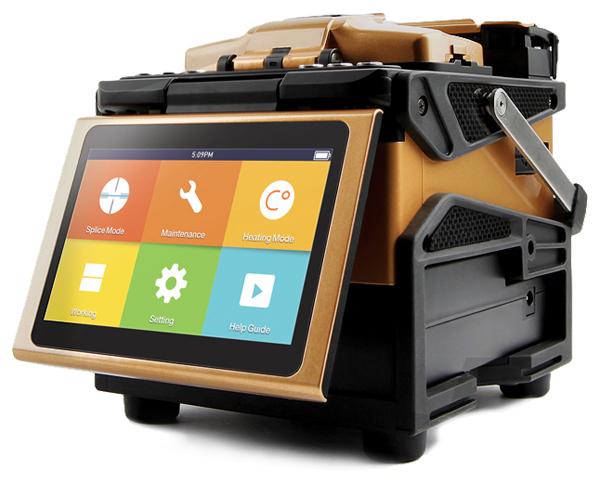

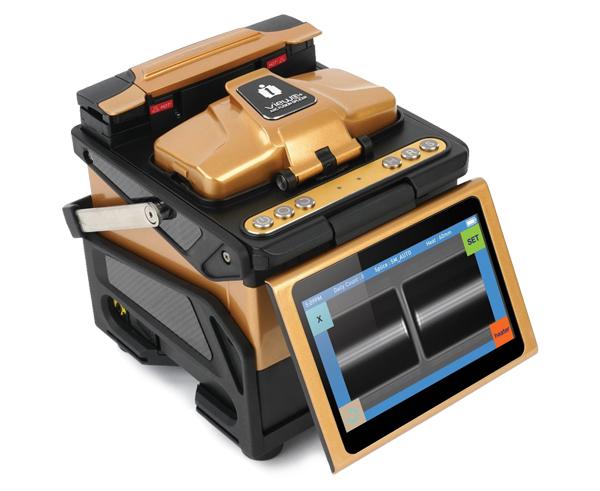

The new premium core-alignment fusion splicer View8+ is the most powerful and innovative product to satisfy the demanding professionals who always demand for the highest performances on the go. View8+ features world class splice time of 6 seconds and heating time of 9 seconds with large battery capacity allowing 355 cycles. Together with 5 inch wide HD LCD monitor and user-friendly intuitive GUI (Graphic User Interface), this premium splicer comes with a dedicated Wi-Fi App which enhances practicality to check the work progress simply from a smartphone.
Features
The Most Productivity Splicer Fast Splice Time 6 sec.
- Fast Heating Time 9 sec.
- Large Battery Capacity 355 cycles
- Automatic Arc Compensation

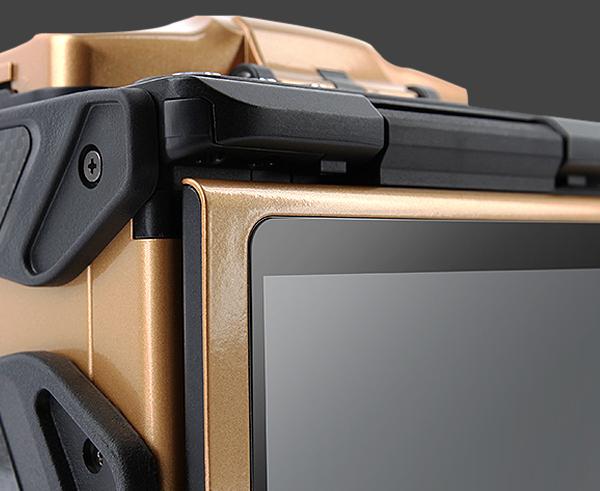

- 5 inches wide HD LCD monitor
- Wi-Fi
Specifications
| Specifications | ||
|---|---|---|
| Model | View 8+ | |
| Dimensions |
162mm H x 147mm W x 157mm D (including rubber bumper) |
|
| Weight |
2.12 KG (without battery) 2.78 KG (with battery) |
|
| Number of Fiber | Single | |
| Applicable Fibers |
SM (ITU-T-G.652 & G.657) MM (ITU-T- G.651) DS (ITU-T-G.653) NZDS (ITU-T-G.655) |
|
| Cleaved Length | 8-16mm | |
| Cladding Diameter | 80µm - 150µm | |
| Splicing Mode | Max 128 modes, Preset 45 user modes | |
| Heating Mode | Max 32 modes | |
| Typical Splice Loss |
SM: 0.02dB MM: 0.01dB DS: 0.04dB NZDS: 0.04dB (ITU-T-standard) |
|
| Return Loss | >> 60 dB | |
| Lighting | 2 White LEDs | |
| Splicing Time |
Quick mode 6 sec SM mode 8 sec |
|
| Estimated Splice Loss | Available | |
| Heating Sleeve Length | 20mm - 60mm | |
| Heating Time | Quick mode 9 sec | |
| Results Storage | The last 10,000 results | |
| Tension Test | 1.96 - 2.25N | |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% non dew Temperature: -10 - 50°C Wind: 15m/sec |
|
| Storage Condition |
Humidity: 0-95% non dew Temperature: -20~60℃ |
|
| Display |
5.0 inches HD color LCD display |
|
| Fiber View & Magnification |
320x Magnification Four Display modes |
|
| Power Supply | AC Input 100-240V, DC Input 19-3.42A | |
| No. of Splice & Heating With Battery |
9000mAh Battery Capacity Typical 355 times (Splice + Heat) |
|
| Operating Methods | Button / Touch Screen | |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature | |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder | |
| Terminal | USB2.0/ Mini USB | |
Additional Information
View 8+ Splice & Heating with Timecode
