Description
Intermediate Spacers

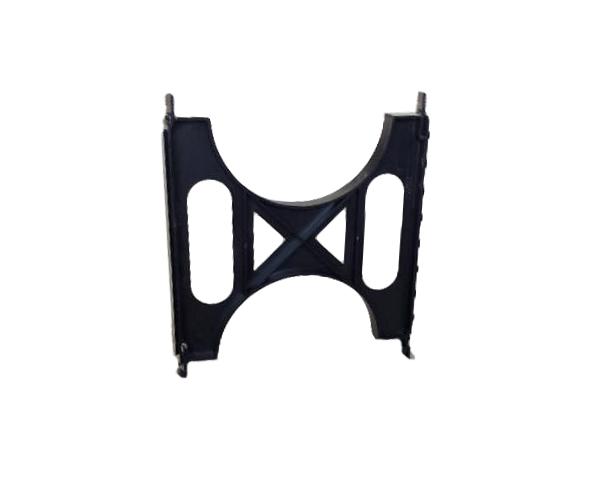

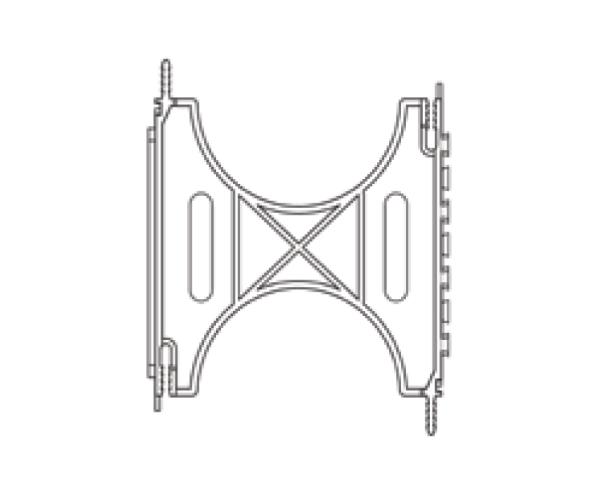

Intermediate Spacers accurately separate conduit ducts while locking them firmly together. Intermediate spacers are used to give space between pipes to avoiding resting pipes directly on top of each other and keeps them in line. Our most popular sizes are offered with unique rebar holder slots for quick reinforcing bar installation and the bases have support holes for securing the base spacers to the trench bottom. Duct Spacers make the alignment of duct banks easy by allowing more room to work. These spacers are also ideal for concrete burial applications providing plenty of room for concrete to settle around each individual pipe. Intermediate Spacers are available in multiple sizes and package quantities.
Features
Features
- Accurately separate ducts
- Snap together vertically & horizontally
- Designed for plastic duct only
- Great for concrete applications
- Unique rebar holding slots to increase support
- Quick and easy installation
Specifications
Specifications
| Item Number | Size | Weight | Package Qty. |
| NPNB-6268020015 | 2 x 1 1/2 | 14.8 lbs | 140 |
| NPNB-6268020020 | 2 x 2 | 16.5 lbs | 140 |
| NPNB-6268020030 | 2 x 3 | 16.1 lbs | 110 |
| NPNB-6268030015 | 3 x 1 1/2 | 15.4 lbs | 110 |
| NPNB-6268030020 | 3 x 2 | 16.6 lbs | 100 |
| NPNB-6268030030 | 3 x 3 | 14.5 lbs | 70 |
| NPNB-6268040010 | 4 x 1 | 10.6 lbs | 80 |
| NPNB-6268040015 | 4 x 1 1/2 | 15.8 lbs | 80 |
| NPNB-6268040020 | 4 x 2 | 13.5 lbs | 70 |
| NPNB-6268040030 | 4 x 3 | 13.5 lbs | 60 |
| NPNB-6268050015 | 5 x 1 1/2 | 11.6 lbs | 60 |
| NPNB-6268050020 | 5 x 2 | 12.8 lbs | 60 |
| NPNB-6268050030 | 5 x 3 | 9.7 lbs | 50 |
| NPNB-6268060015 | 6 x 1 1/2 | 10.9 lbs | 50 |
| NPNB-6268060020 | 6 x 2 | 11.4 lbs | 50 |
| NPNB-6268060030 | 6 x 3 | 10.3 lbs | 45 |
Additional Information
Conduit Accessories
Installing or retrofitting an electrical conduit system? We got you covered! We offer everything you need for a customized electrical conduit system including PVC pipe, conduit, and fittings. Our PVC pipe and fittings are engineered for commercial and residential power, lighting, telephone, and electrical systems.
What's in the box?
What's in the box?
- Qty 1 - for all in stock Intermediate Spacers
- Qty Varies - for all out-of-stock Intermediate Spacers
