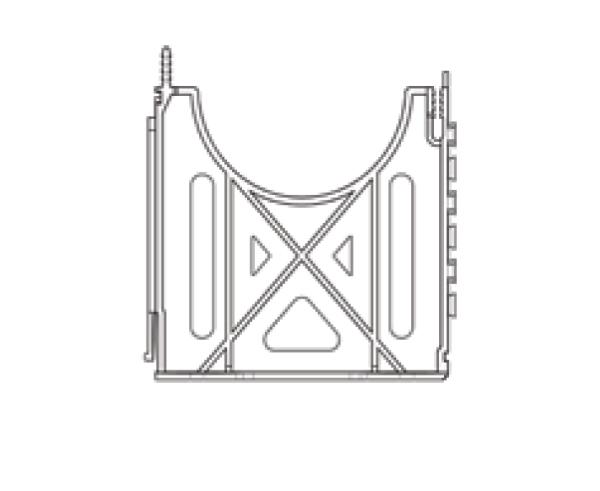

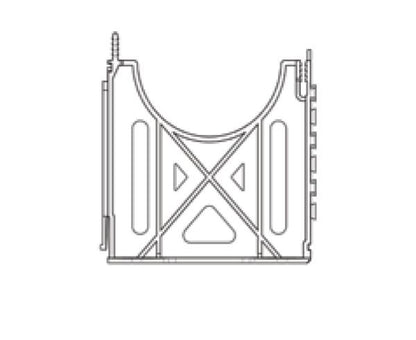

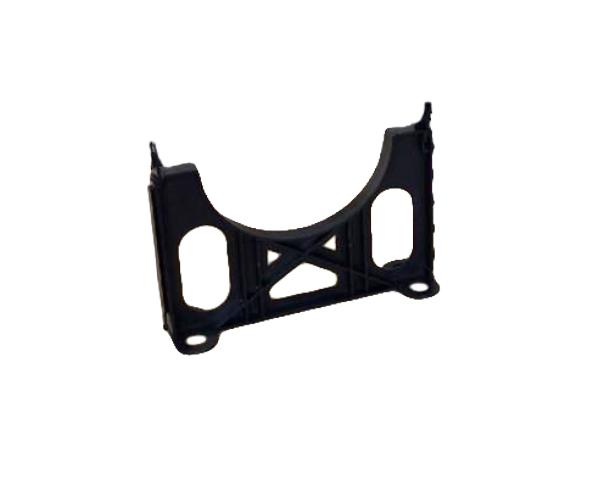

Base Duct Spacers
Base Duct Spacers accurately separate ducts while locking them firmly together and mainly used at the ground floor of your application. Base spacers are used to give space under pipes to avoiding resting directly on the ground and keeps them in line. Our most popular sizes are offered with unique rebar holder slots for quick reinforcing bar installation and the bases have support holes for securing the base spacers to the trench bottom. Duct Spacers make alignment of duct banks easy by allowing more room to work. These spacers are also ideal for concrete burial applications providing plenty of room for concrete to settle around each individual pipe. Intermediate Spacers are available in multiple sizes and package quantities.
- Provide a sturdy base for duct bank
- Snap together vertically & horizontally
- Designed for plastic duct only
- Great for concrete applications
- Unique rebar holding slots to increase support
- Quick and easy installation
|Item Number||Size||Weight||Package Qty.|
|NPNB-6266020015||2 x 1 1/2||19.5 lbs||140|
|NPNB-6266020020||2 x 2||21.4 lbs||140|
|NPNB-6266020030||2 x 3||19.8 lbs||110|
|NPNB-6266030015||3 x 1 1/2||19.6 lbs||110|
|NPNB-6266030020||3 x 2||18.9 lbs||100|
|NPNB-6266030030||3 x 3||14.8 lbs||70|
|NPNB-6266040010||4 x 1||15.3 lbs||80|
|NPNB-6266040015||4 x 1 1/2||15.8 lbs||80|
|NPNB-6266040020||4 x 2||14.7 lbs||70|
|NPNB-6266040030||4 x 3||14 lbs||60|
|NPNB-6266050015||5 x 1 1/2||13.1 lbs||60|
|NPNB-6266050020||5 x 2||14.6 lbs||60|
|NPNB-6266050030||5 x 3||13 lbs||50|
|NPNB-6266060015||6 x 1 1/2||12.7 lbs||50|
|NPNB-6266060020||6 x 2||14 lbs||50|
|NPNB-6266060030||6 x 3||13.3 lbs||45|
Installing or retrofitting an electrical conduit system? We got you covered! We offer everything you need for a customized electrical conduit system including PVC pipe, conduit, and fittings. Our PVC pipe and fittings are engineered for commercial and residential power, lighting, telephone, and electrical systems.
To learn more about our Conduit Accessories please visit our overview page. Our Plastic Base Spacers can be combined with a wide array of products such as:
- Plastic Base Spacers
- Schedule 40 Conduit Sweeps
- Schedule 80 Straight Conduit
- Schedule 80 Conduit Sweeps
- Direct Burial Straight Conduit
What's in the box?
- Qty 1 - For all in stock Plastic Base Spacers
- Qty Varies for all out-of-stock Plastic Base Spacers
