(We do not offer credits or returns for this item.)
This fiber cable is priced per foot.
Note: Orders over 1200ft must ship freight and requires a shipping quote. To request a shipping quote email us or call us
If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call or email us.
Description

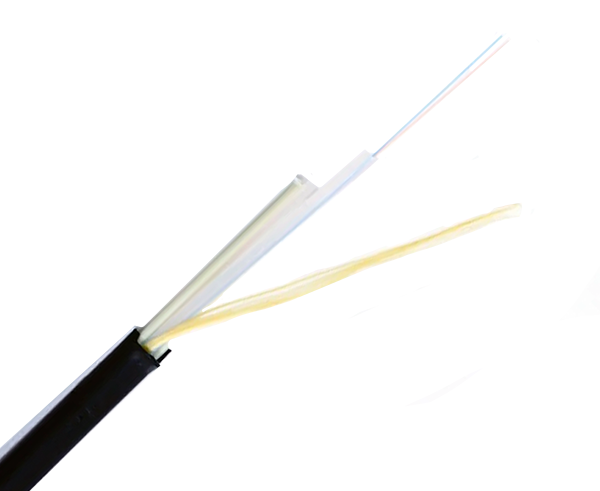

Flat Drop Cable Gel Single Mode SMF28 Ultra Fiber 2 Fiber, Polyethylene Jacket

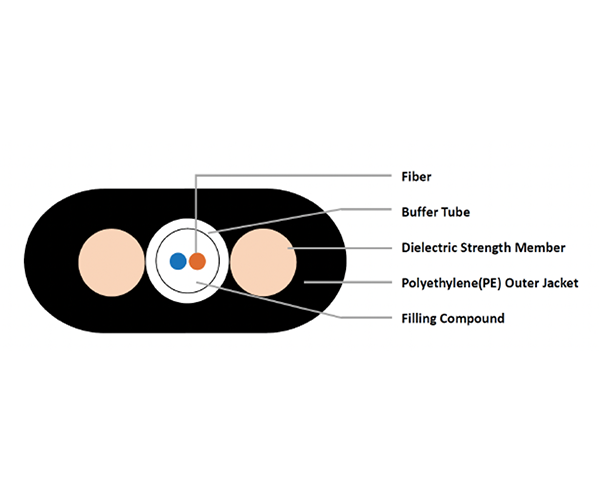

Drop FTTP offers the most flexible solution for fiber to the premise applications. The Drop cable unit allows for easy location after installation. The small profile reduces cost and increases both ease of use and access to small conduits. The durable design incorporates two dielectric rigid rods for tensile and crush protection, bracketing a single gel filled, enhanced loose tube containing containing 2 fibers.
Features
Features
- Core Diameter: 8.2 μm
- Cladding Diameter: 125+/-0.7μm
- Core-Clad Concentricity Error: ≤0.5μm
- Cladding Non-Circularity: ≤0.7%
- Coating Diameter: 242+/-0.5 μm
- Coating-Cladding Concentricity: < 12 μm
- Mode Field Diameter: 9.2+/-0.4 μm@1310nm; 10.4+/-0.5 μm@1550nm
- Cable Cutoff Wavelength: ≤1260 nm
- PMD Link Design Value: ≤0.04ps/√km
- Maximum Individual Fiber PMD: ≤0.1ps/√km
- Attenuation (Maximum):
≤ 0.32 dB/km @1310nm
≤ 0.32 dB/km @1383nm
≤ 0.21 dB/km @1490nm
≤ 0.18 dB/km @1550nm
≤ 0.20 dB/km @1625nm
Applications
- Local Area Network(LAN)
- Subscriber Network System
- Long Haul Communication System
