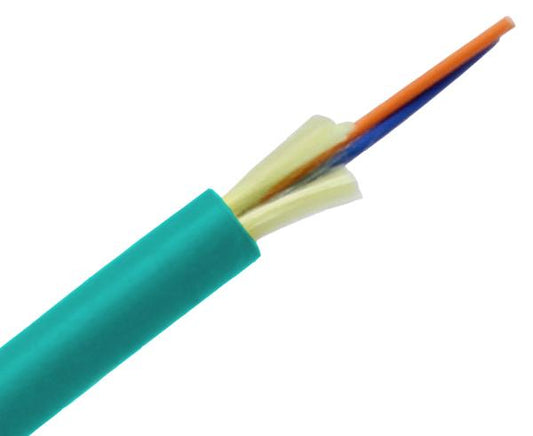

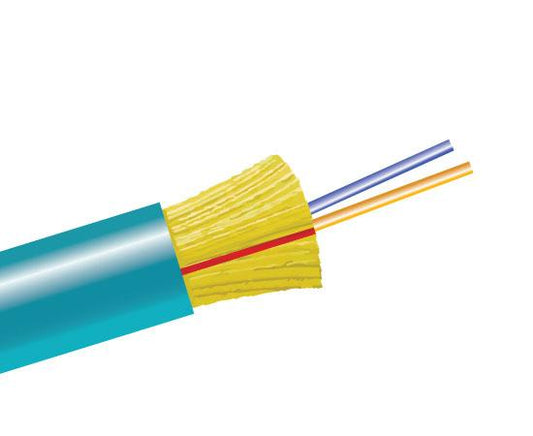

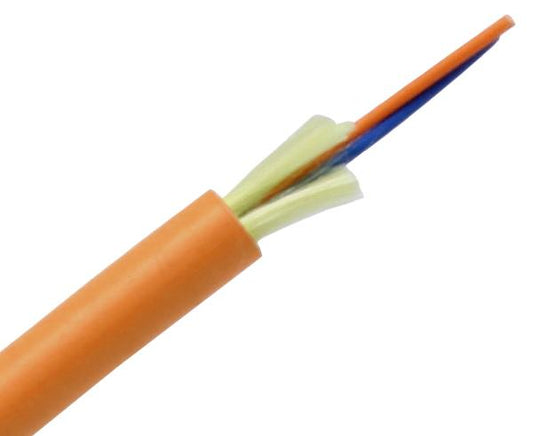

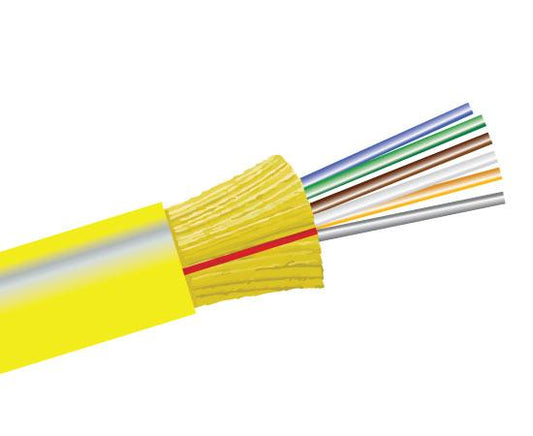

Distribution Fiber Optic Cable is ideal for applications that require a single termination point with multiple fibers; the tight buffered design allows Fiber Distribution Cable to be installed as a building backbone and/or for inter-building campus applications. In addition, Fiber Optic Distribution Cable is available in 4 main types: Single-Mode 9/125, Multimode OM1 62.5/125, Multimode OM3 50/125 and Multimode OM4 50/125. Implemented within these four fiber categories, there are Plenum and Riser options that yield to the National Electric Code (NEC), with a variation of Indoor/Outdoor or Indoor-Only jackets available. Generally, Tight Buffer Distribution Fiber Cables have strand counts ranging from 2 fibers to 72 fibers, though higher fiber strand counts are obtainable and referred to as Micro Distribution Fiber.
Indoor Plenum OFNP Distribution Fiber Optic Cable
Indoor Tight Buffered Plenum Fiber Optic Cables are designed for interior building applications, such as in walls, between floors, and within air ducts. The plenum rating maintains that the cable is slower to succumb to flames, releasing less smoke through a fire-retardant jacket. Moreover, in these building cable applications, the fiber must be able to withstand the stresses present during installation by the contractor. Plenum Indoor Distribution Fiber Optic Cables come in both Single-Mode and OM1, OM3 and OM4 Multimode options.

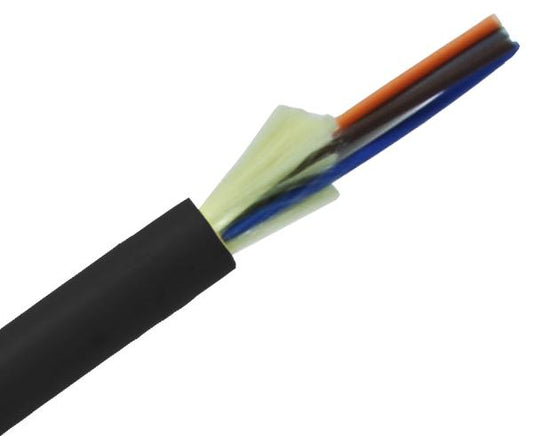

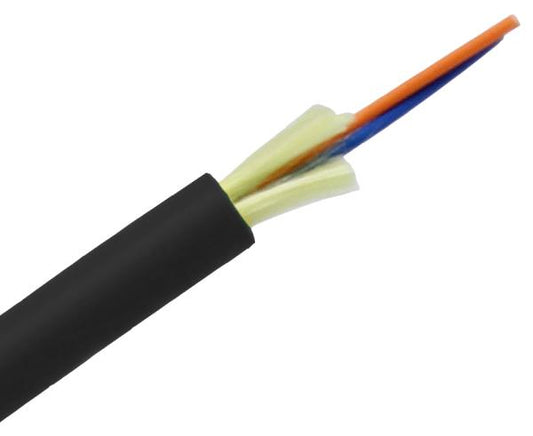

Indoor/Outdoor Plenum OFNP Distribution Fiber Optic Cable
Indoor/Outdoor Tight Buffered Plenum Fiber Optic Cables meet the same specifications as Indoor Tight Buffered Plenum Fiber Optic Cables, though Indoor/Outdoor Tight Buffered Cables are able to travel outdoors. The outer jacket of Indoor/Outdoor Tight Buffered Plenum Fiber Optic Cables is assembled with a UV stabilizer to provide protection against sun exposure and has anti-fungus protection for underground applications. Plenum Indoor/Outdoor Distribution Fiber Optic Cables come in both Single-Mode and OM1, OM3 and OM4 Multimode options.
Indoor Riser OFNR Distribution Fiber Optic Cable
Indoor Riser Distribution Fiber Optic Cables are ideal for vertical runs within a building, such as a shaft or duct that expands multiple floors. Riser Indoor Distribution Fiber Optic Cable is available in both Single-Mode and OM1, OM3 and OM4 Multimode, composed of up to 72 strands.

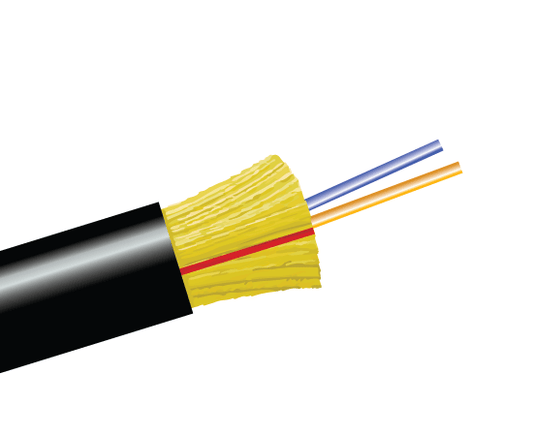

Indoor/Outdoor Riser OFNR Distribution Fiber Optic Cable
An option suitable for both indoor and outdoor applications is also available with the riser rating; comprised of up to 144 strands, Riser Indoor/Outdoor Distribution Fiber Optic Cable is available in both Single-Mode and Multimode options. In order to further the optimization and maximize the durability of Riser Indoor/Outdoor Distribution Fiber Optic Cable, an armored version is available for additional strength in direct burial and aerial applications.
Don't Forget to Factor in Fiber Optic Connectors
Fiber Savvy stocks a wide selection of Fiber Connectors, such as our Field Installable Fiber Optic FAST Connectors. Our Field Installable Connectors are available in LC, SC and ST styles; these connectors come pre-polished and ready to install. There is no epoxy required and a boot is also provided with each connector to ease the installation process.
Get the right tools for the job!
Having the right tools will help save you time and money. Make sure that you are prepared for your next fiber installation project with Fiber Savvy's large selection of Fiber Tools and Fiber Optic Testers.
Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget. Thank you for visiting our website!
Feel free to give us a call at (951) 801-5780 or email us at firstname.lastname@example.org for more information.
