Description

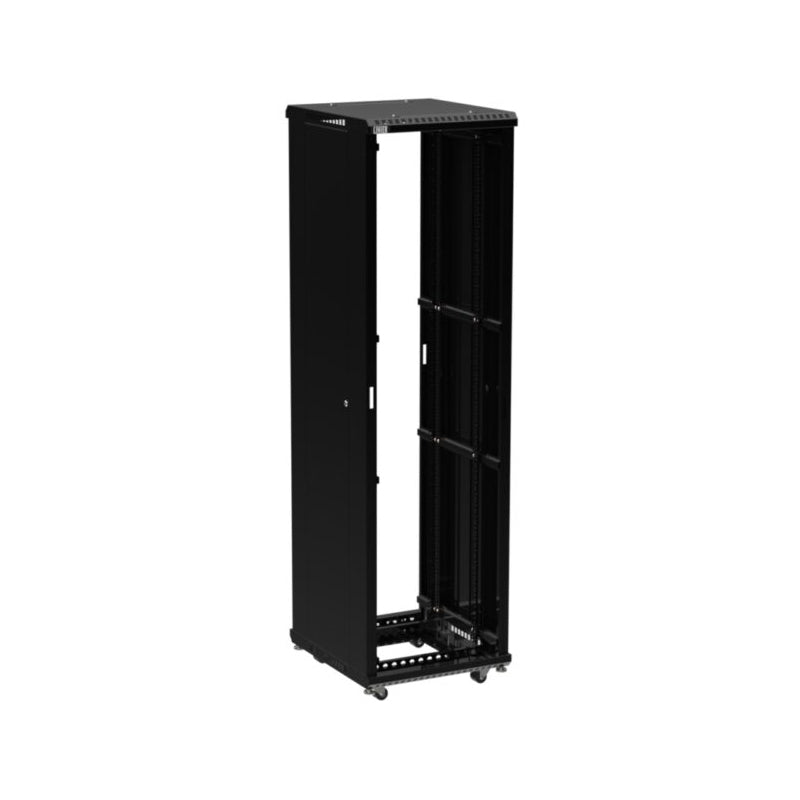

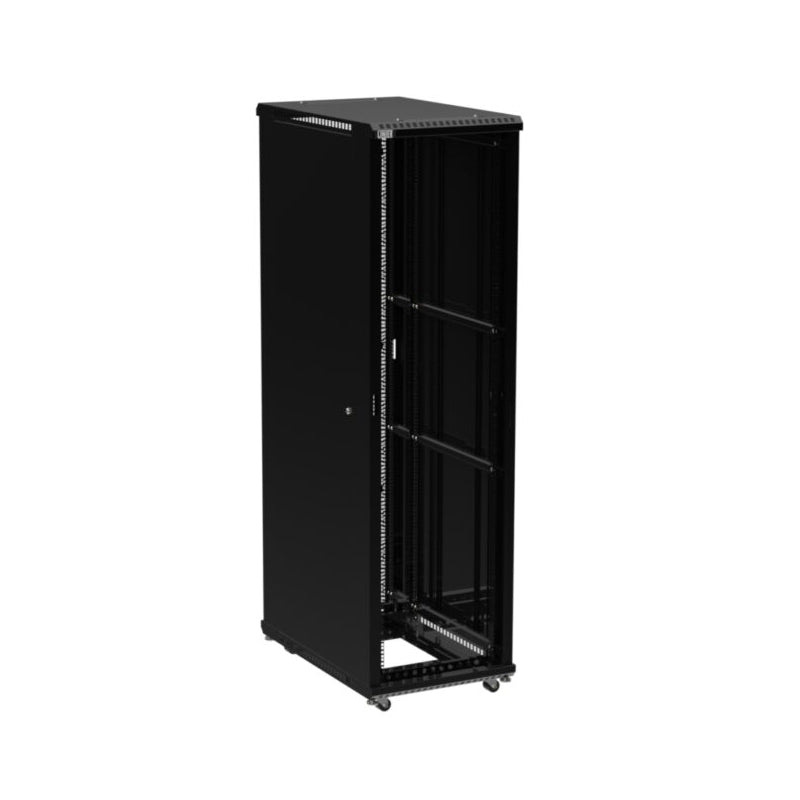

45U LINIER® Server Cabinet - No Doors With Side Doors
Unlike the 3100 series, the 3170 LINIER® Server Cabinets are built without doors making it easy to monitor and access the front and back of your network equipment. Side panels are included with this series to help enclose and protect your system. Built with a 24" or 36" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. Both front and rear access to your equipment is made available with the 3170 LINIER® Server Cabinets.
- No doors

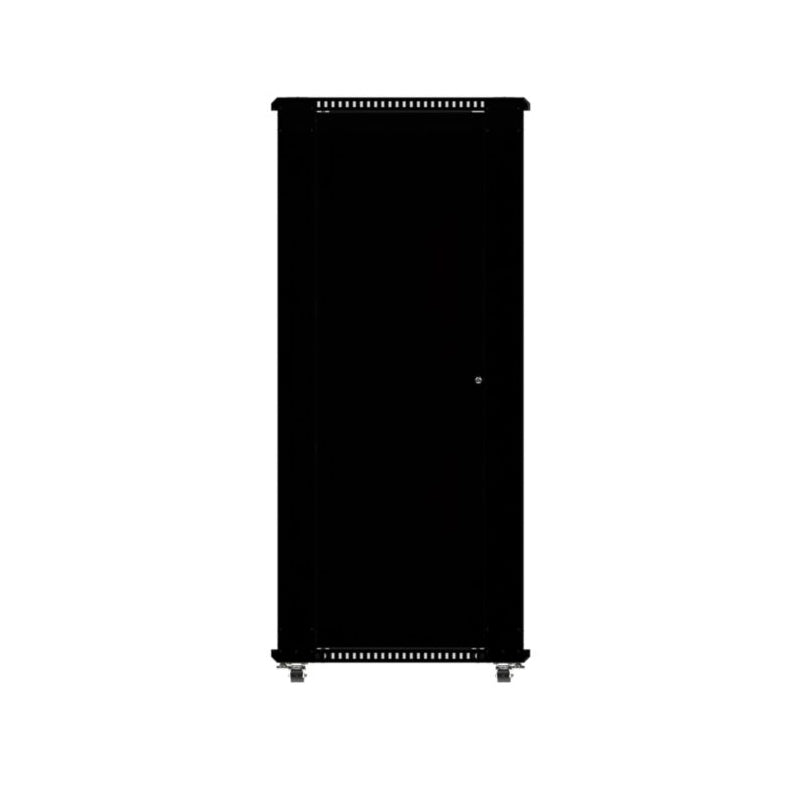

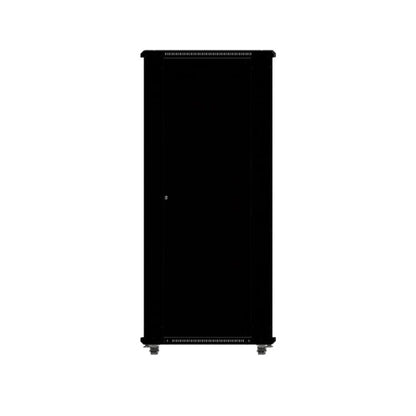

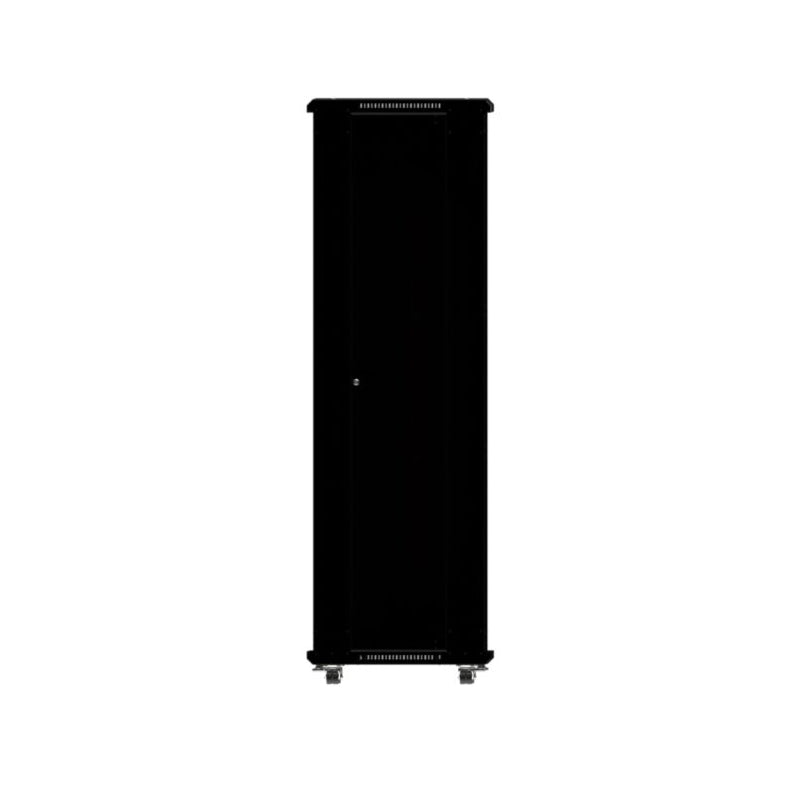

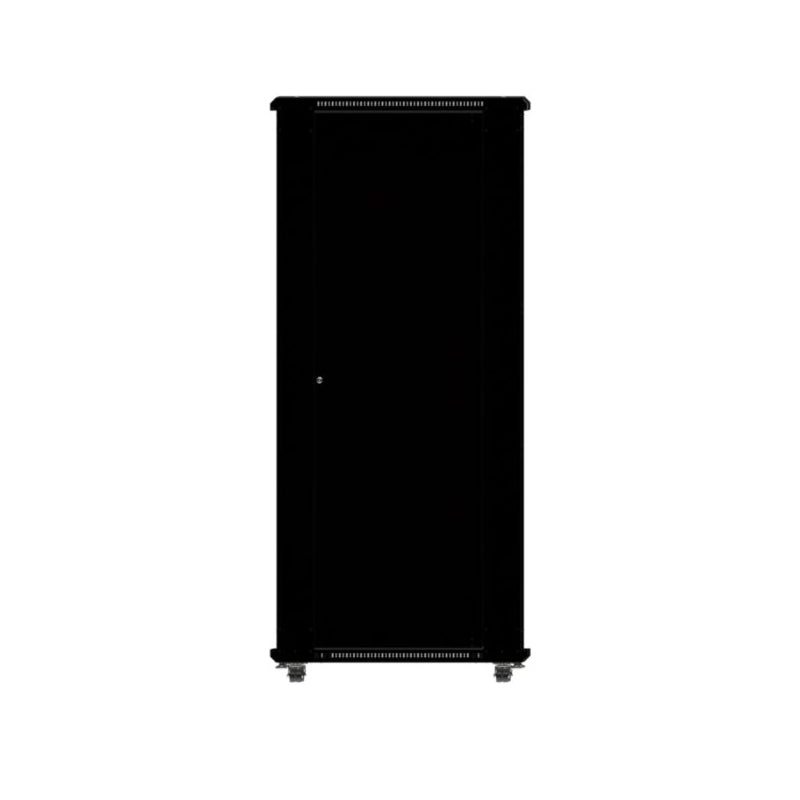

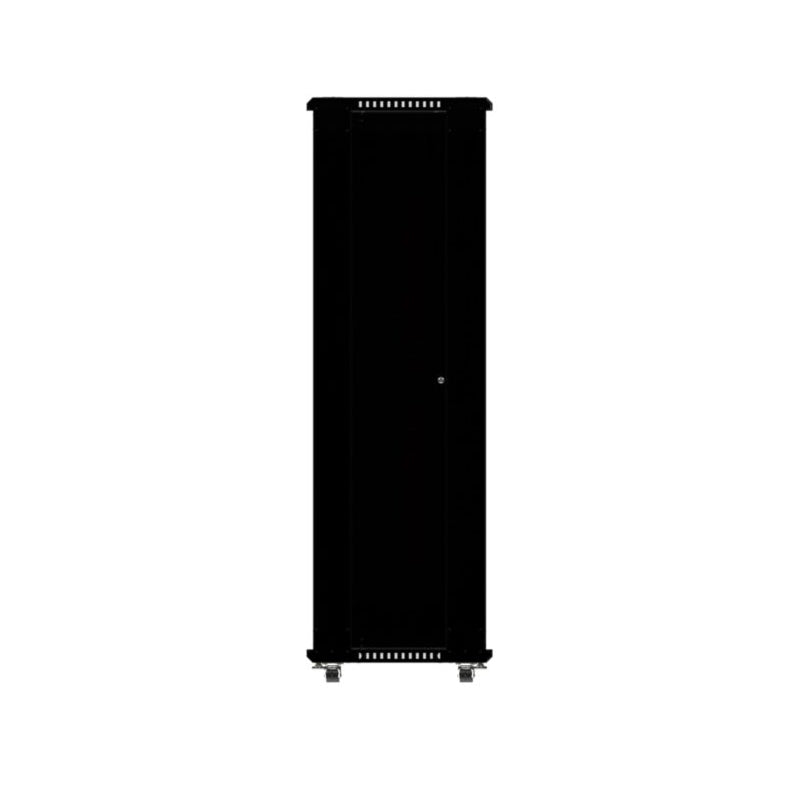

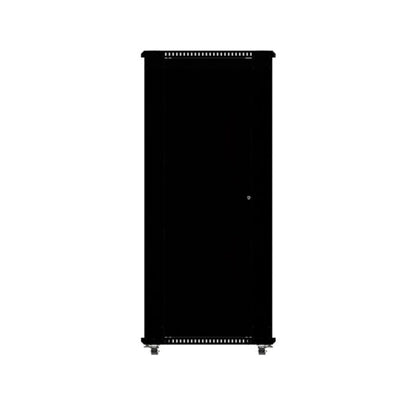

- Removable locking side panels
- 24" depth (Also available with a 36" depth)
- Other sizes available: 22U, 27U, 37U, and 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)

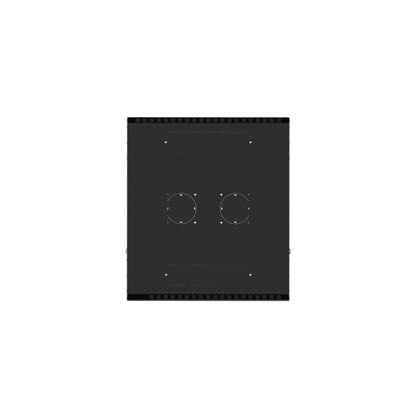

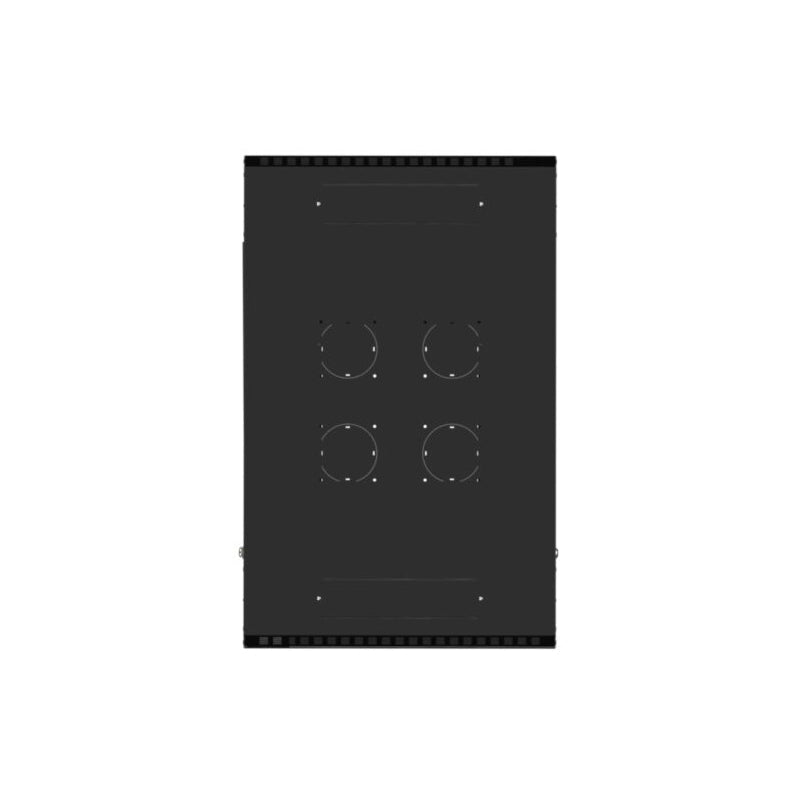

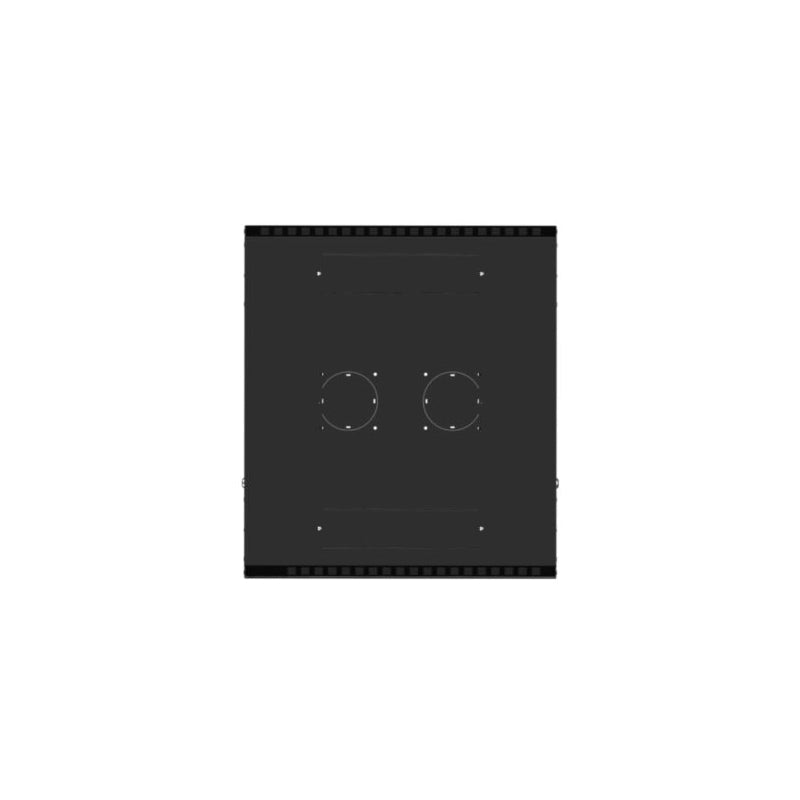

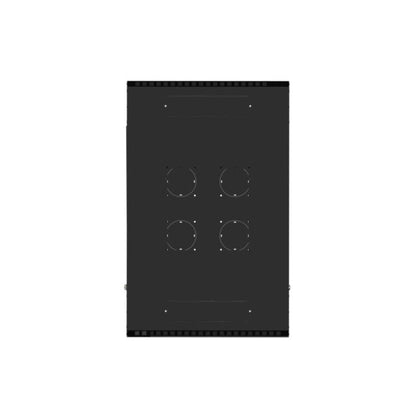

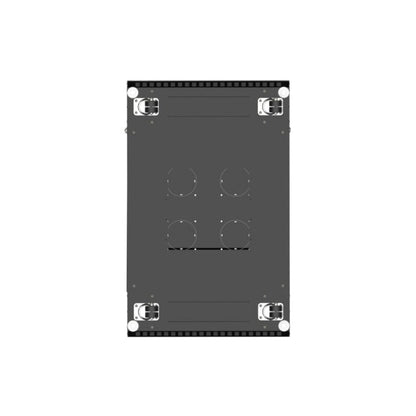

- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails

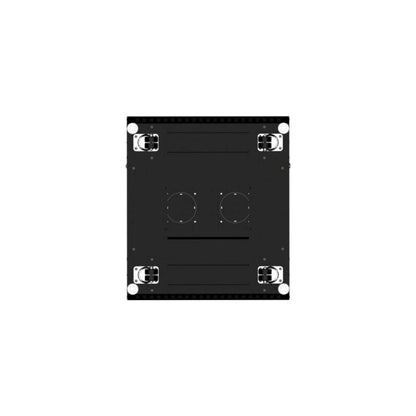

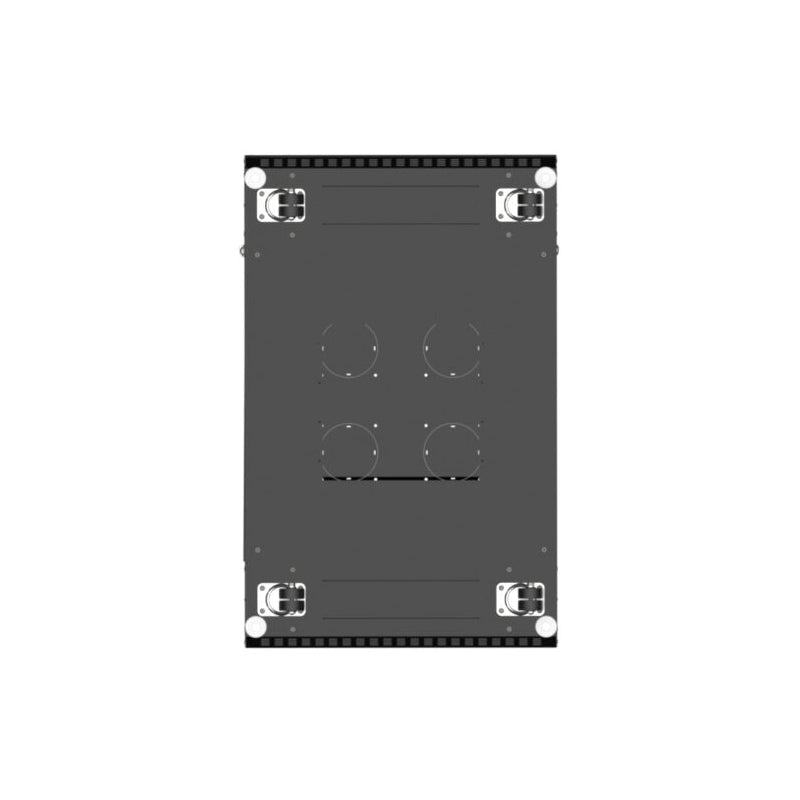

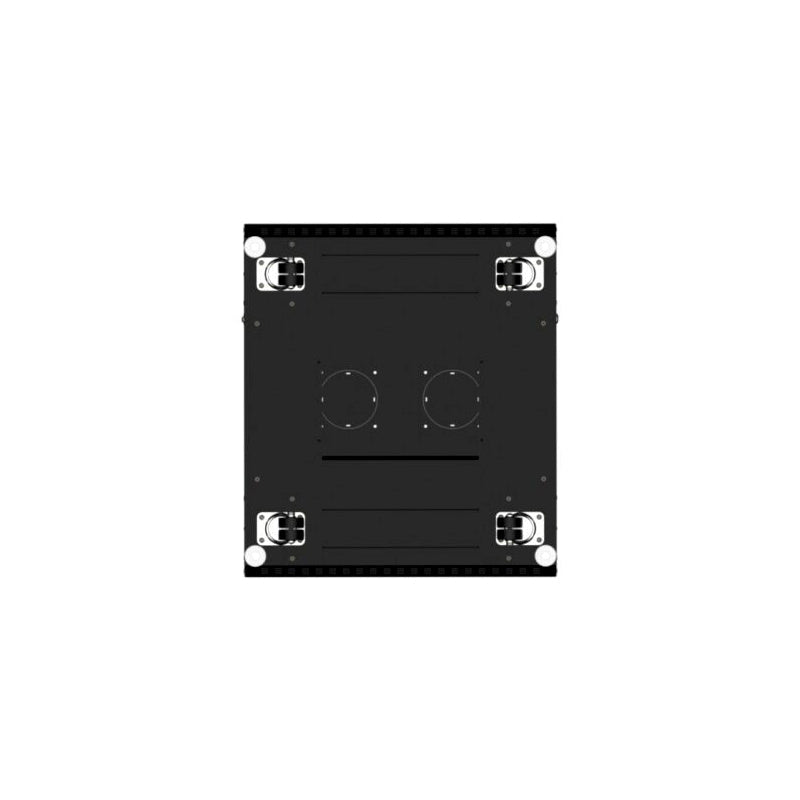

- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features
Features

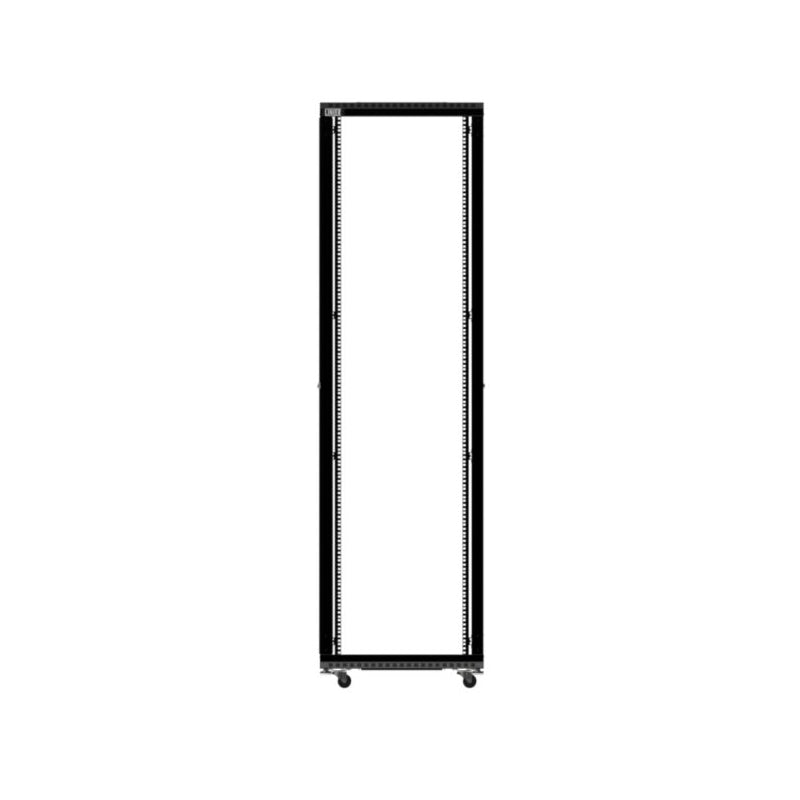

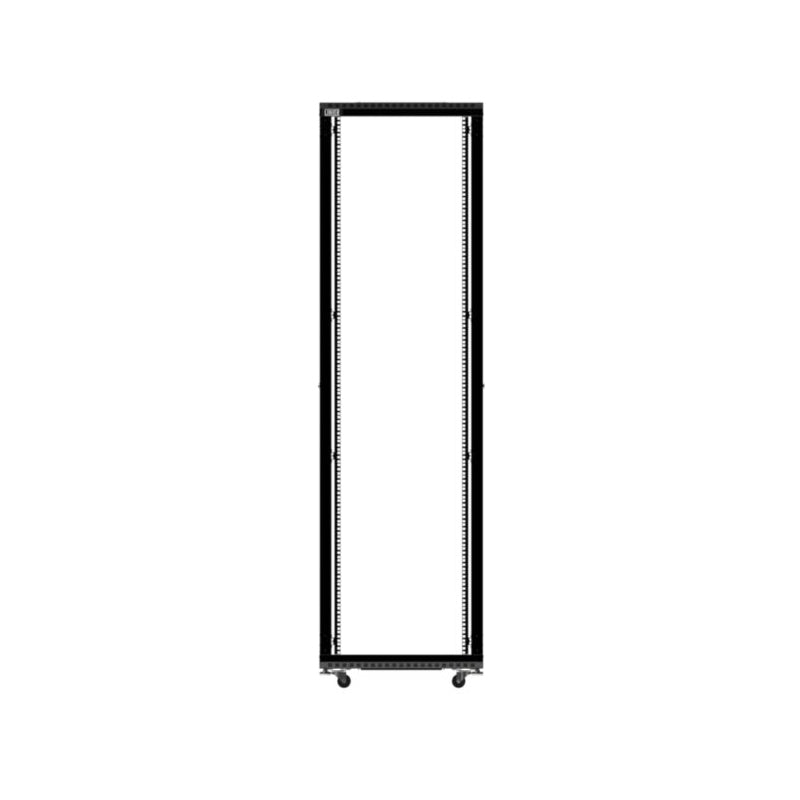

Open Frame Design
- The open frame design allows for maximum air flow for your network equipment.
Easy Installation
- Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Adjustable Rails
- Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Front and Rear Rails
- The fixed set of front and rear (which are really left and right) cage nut style rails provide a 20″ mounting depth for equipment that requires a 4-point mounting.
Specifications
|
Width |
24" or 36" |
|
Depth |
27" (24" usable depth) or 38" (36" usable depth) |
|
Height |
86" with Castors |
|
Weight |
24" - 108 lbs. 36" - 194 lbs. |
|
Material(s) |
(CRS) Cold Rolled Steel |
|
Color/Finish |
Medium Texture Black |
Additional Information
Free Standing Server Cabinets Accessories
Server cabinets are an excellent means of providing both physical and environmental protection for your network equipment. We offer free standing server cabinets with either a vented or tempered glass door. We offer the LINIER® line of free standing server cabinets by Kendall Howard suitable for server storage, battery backups, and switching banks.
To learn more about our Free-Standing Enclosure Racks please visit our overview page. Kendall Howard's Server Enclosures can be combined with a wide array of products such as:
What's in the Box?
What's in the Box?
- Qty 1 - LINIER® Server Cabinet - No Doors
