Description

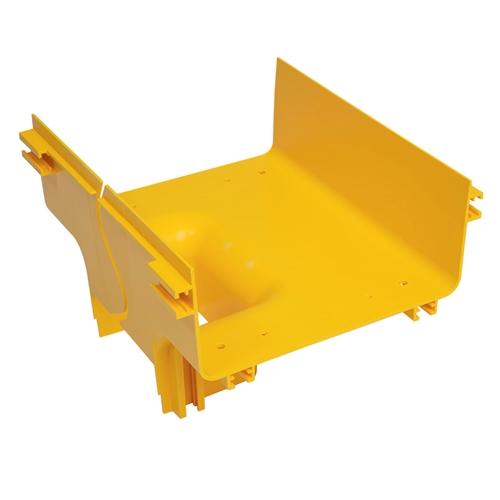

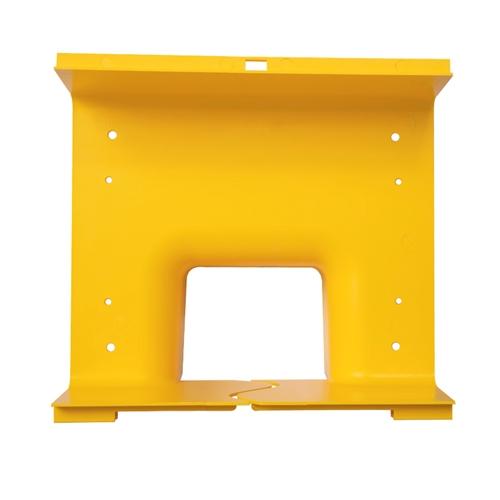

10" to 5" Vertical Tee
This vertical tee is inserted into a 10" wide horizontal channel to provide a 90 degree vertical drop to a 5" wide channel.
Features
Features
- Maintains minimum cable bend radius requirements
- Requires (2) 10" coupler and (1) CM-T3-4771-CNC 5" coupler for installation (sold separately)
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
Specifications
| TECHNICAL SPECIFICATIONS |
| 10" TO 5" VERTICAL TEE |
| MATERIAL |
LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) |
| COLOR |
YELLOW |
| DIMENSIONS (L X W X H) |
11.8" X 10.9" X 7.5" |
| WEIGHT |
1.54 LBS |
| COMPLIANCE & STANDARDS |
UL2024 & UL94-V0 |
| SELLING UNIT |
1 PIECE |
Additional Information
| TECHNICAL ILLUSTRATIONS AND ANIMATION |
 |
 |
What's in the Box
What's in the Box
-
Qty 1 - 10” to 5” Vertical Tee - Fiber Cable Tray Channel
