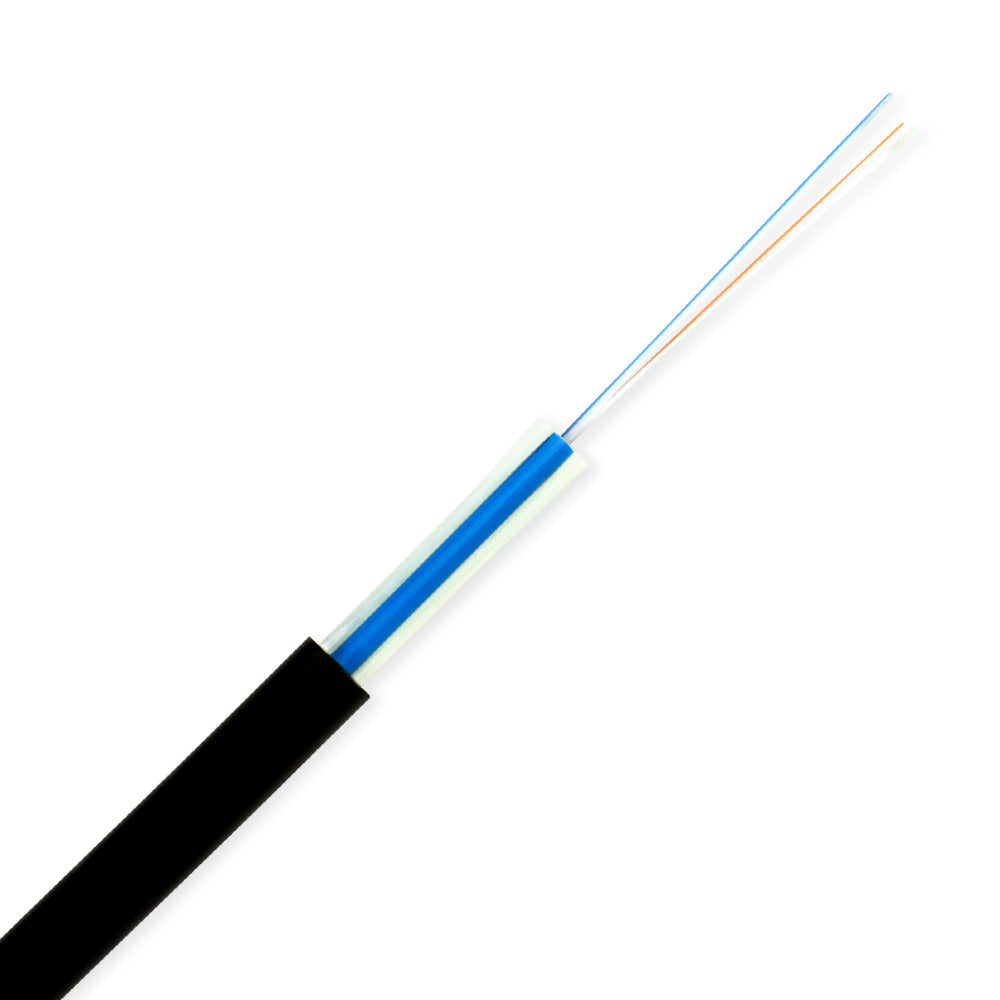

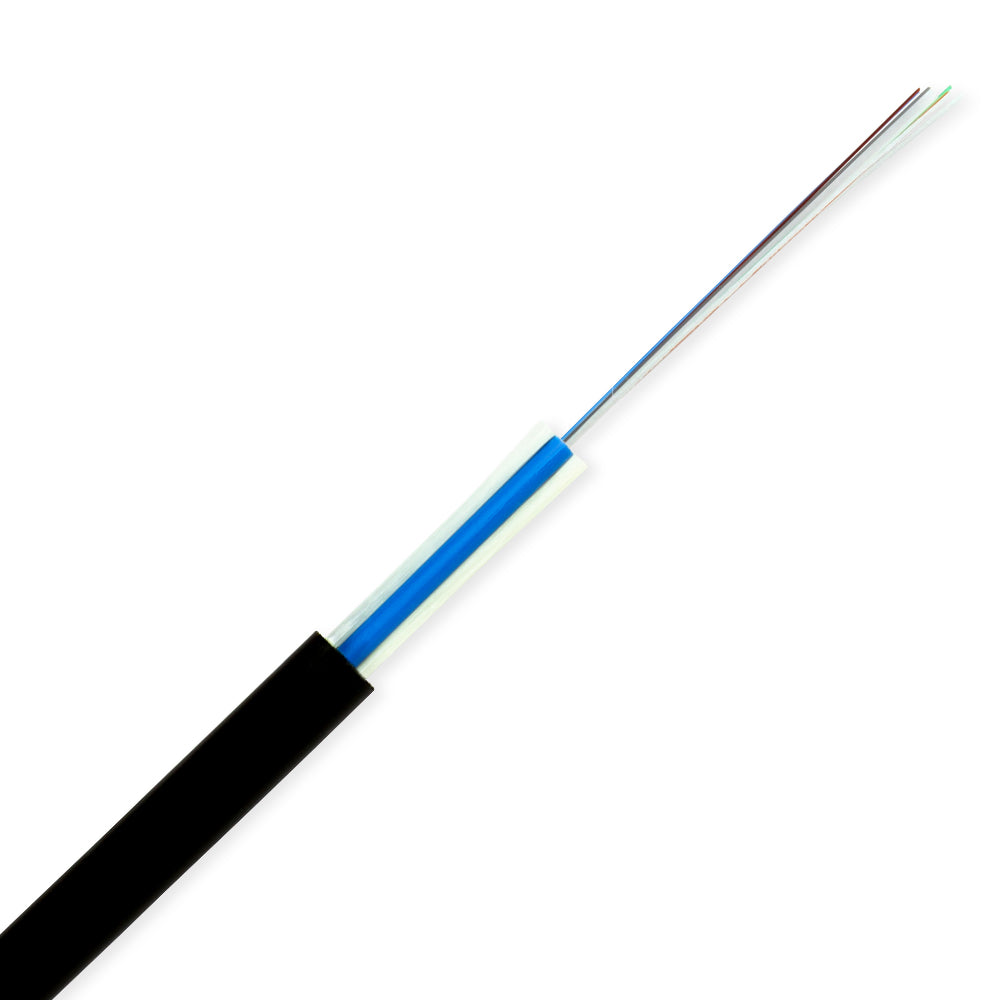

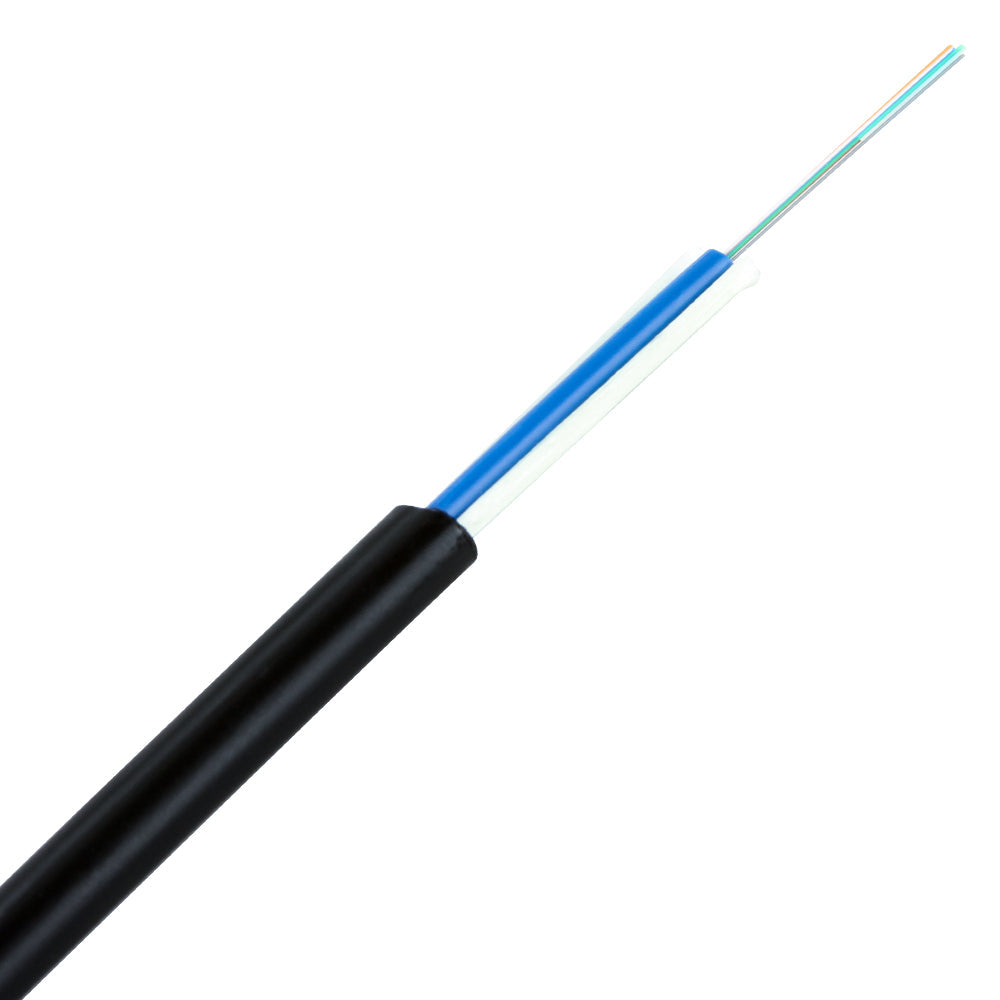

Dielectric Dry Flat Drop Loose Tube Fiber Cable Single Mode 9/125 OS2, Polyethylene Jacket

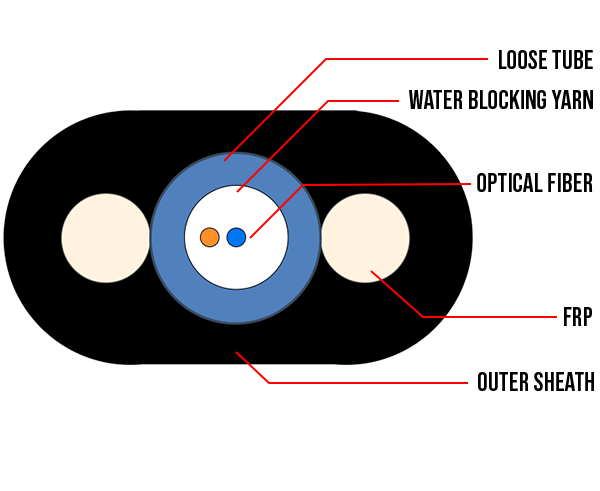

The Dielectric Dry Flat Drop Cable is composed of bare colored optical fibers (available fiber counts are 1, 2, 4, 6 and 12) with water blocking aramid yarn inside a 3.0mm dry buffer tube. The UV resistant polyethylene outer jacket encases the buffer tube along with 2 dielectric FRP strength members, one on each side of the buffer tube. All component materials meet the EU RoHS Directive standard.
Dry Flat Drop Cable is available in black jacket only. Standard surface print denotes construction, fiber type, and includes footage markers.
FeaturesAll dry (Gel-free): Easy preparation Color-coded fibers: Easy and quick identification Loose tube design: Stable performance and compatibility with all common fiber type All-dielectric construction
- Local Area Network(LAN)
- Subscriber Network System
- Long Haul Communication System
Standards and Certifications
RUS 7 CFR 1755. TELCORDIA GR-20.
ISO 9001, 14001. OHSAS 18001. TIA-598-D.
- Storage : -40°F to +158°F (-40°C to +70°C)
- Operation : -40°F to +158°F (-40°C to +70°C)
- Fiber: 12 Colors Coding
- Loose Tube: Gel-free
- Central Strength Member: Dielectric Strength Material
- Overall Jacket Material : Polyethylene
- Strength Member: 2 FRP's
- Fiber Type: SMF-28° Ultra
- Core Size: 9/125
- Attenuation (Max): 0.4dB/km @1550nm
- Numerical Aperture : 0.14
- Mode-Field Diameter (1310/1550nm): 9.2/10.4mm
- Link Length @1550: 10,000m/5,000m
