Flexible Braided Grounding Strap 25ft, 100ft lengths-Discontinued

Flexible Braided Grounding Strap 25ft, 100ft lengths-Discontinued

Fiber Savvy

SKU:NPNB-SA382B


Width
Length
Regular price Price: $191.62
Regular price Sale price Price: $191.62
*Shipping calculated at checkout
Sale Sold out
View full details

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

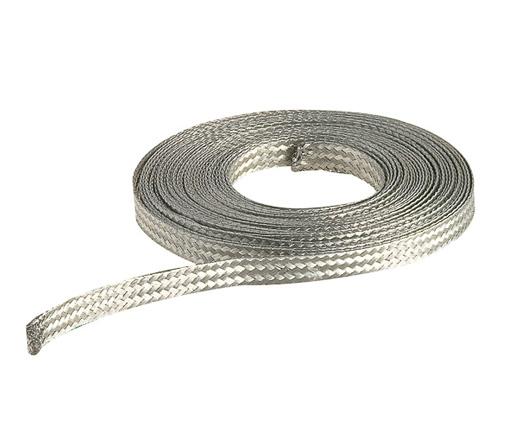

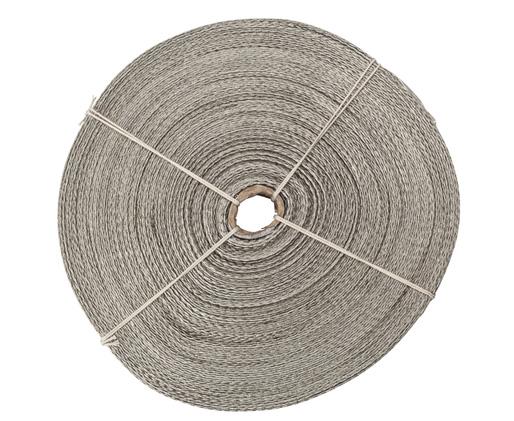

Flexible Braided Grounding Strap 25ft, 100ft lengths

Flexible Braided Grounding Straps in 25ft or 100ft.

Features

Features

  • Woven of high conductivity, annealed, tinned copper wire, this braided ground strap provides maximum flexibility and ease of handling when installing ground or shield continuity.
  • This braid is used for shield and lead-sheath grounding and is easily soldered to lead, copper and tinned metals.
  • It is also used for continuing the fault-carrying capacity of the cable shield as a jumper braid.

    Specifications

    Specifications

     Part# Equivalant AWG Size Length (ft) Width (in)
    NPNB-SA382B 9 AWG 25 3/8
    NPNB-SA382C 9 AWG 100 3/8
    NPNB-SA582B 6 AWG 25 1/2
    NPNB-SA582C 6 AWG 100 1/2

    What's In The Box

    What's In The Box

    • Qty 1 - Ground Strap Flexible 25'-100'
