Description

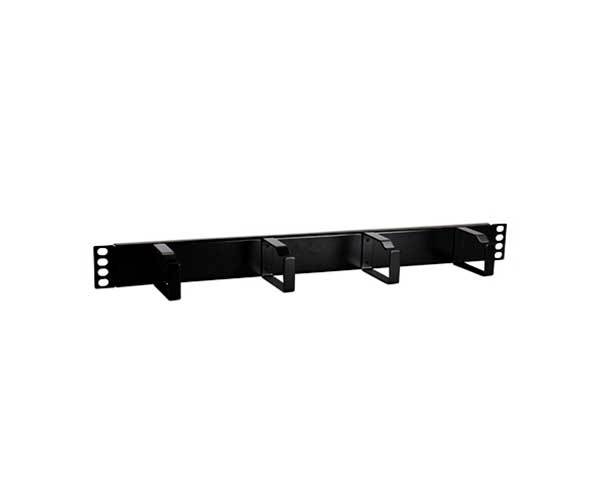

Horizontal D-Ring Cable Manager (4 rings, steel), 1U
This product is designed to help organize your cables and minimize clutter within your rack or cabinet. Durably constructed from powder coated, 18 gauge cold rolled steel, these cable managers provide support to both copper and fiber cables in today’s high-density installations.
Features
Features
- 19” EIA 310D compliant
- Mounting hardware included
Specifications
Specifications
Horizontal D-Ring Cable Manager (4 rings, steel), 1U |
|
|---|---|
| Number of D-Rings | 4 |
| D-Ring Material | Cold Rolled Steel |
| Backplate Material | 18 Gauge Cold Rolled Steel |
| Backplate Finished | Powder Coated |
| Dimension (HxWxD) | 1.73” x 19” x 3.1” |
| Rack Unit Qty | 1U |
| Cable Capacity (CAT5e) | 69 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6) | 44 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6A) | 24 (Based on 50% Fill Rate) |
| Qty Per Package |
1 (Sold Individually) |
What's in the box?
What's in the box?
Qty 1 - Horizontal D-Ring Cable Manager, 1U
