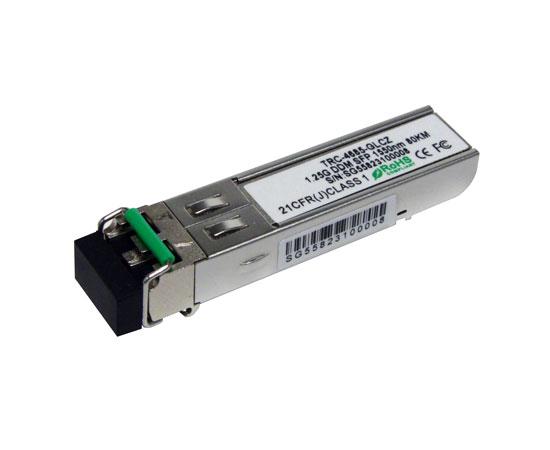

SFP Fiber Transceiver Modules, 1000BASE-ZX, 1550nm SMF, up to 80 Kilometers, LC, Cisco Compatible

The industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of media converters and Ethernet switches.

The TRC-4685-GLCZ SFP operates on standard single-mode fiber-optic link spans of up to approximately 80 km in length. The SFP provides an optical link budget of 21 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.

When shorter distances of single-mode fiber (SMF) are used, it might be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. A 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the SFP at each end of the link whenever the fiber-optic cable span loss is less than 8 dB.

Specifications

Mode: Single-mode Fiber (SMF)

Data-rate: 1000BASE-ZX

Form-factor: SFP

Connector: LC

Wavelength: 1550nm

Distance (9um): 70km - 100km (43.4miles to 62miles)

Cisco Compatibility Chart

Metro Ethernet

ME-2400-24TS-A
ME-2400-24TS-D
ME-3400-24TS-A
ME-3400-24TS-D
ME-3400G-12CS-A
ME-3400G-12CS-D
ME-3400G-2CS-A
ME-3400-24FS-A
ME-3400E-24TS-M
ME-3400EG-2CS-A
ME-3400EG-12CS-M
ME-C3750-24TE-M
ME-3600X-24FS-M¹
ME-3600X-24FS-M²
ME-3600X-24TS-M²
ME-3600X-24CX-M
ME-3800X-24FS-M³
ME-3800X-24FS-M²
ME-4924-10GE
ME-C6524GS-8S
ME-C6524GT-8S

Catalyst 2900 Series

WS-C2948G-GE-TX
WS-C2940-8TF-S
WS-C2950ST-8 LRE
WS-C2950ST-24 LRE
WS-C2950ST-24 LRE997
WS-C2960-24TC-L
WS-C2960G-24TC-L
WS-C2960-48TC-L
WS-C2960-24PC-L
WS-C2960-48PST-L
WS-C2960-8TC-L
WS-C2960G-8TC-L
WS-C2960G-48TC-L
WS-C2960+48PST-L
WS-C2960+24PC-L
WS-C2960+24LC-L
WS-C2960+48TC-L
WS-C2960+24TC-L
WS-C2960S-48FPS-L
WS-C2960S-48LPS-L
WS-C2960S-24PS-L
WS-C2960S-48TS-L
WS-C2960S-24TS-L
WS-C2960S-48FPD-L
WS-C2960S-48LPD-L
WS-C2960S-24PD-L
WS-C2960S-48TD-L
WS-C2960S-24TD-L
2960S-F48FPS-L
2960S-F48LPS-L
2960S-F24PS-L
2960S-F48TS-L
2960S-F24TS-L
WS-C2960CG-8TC-L
WS-C2960C-8TC-L
WS-C2960C-8PC-L
WS-C2960C-12PC-L
WS-C2960X-24PSQ-L
WS-C2960X-24PS-L
WS-C2960X-24TS-L
WS-C2960X-48TS-L
WS-C2960X-48LPS-L
WS-C2960X-48FPS-L
WS-C2960X-24TD-L
WS-C2960X-24PD-L
WS-C2960X-48TD-L
WS-C2960X-48LPD-L
WS-C2960X-48FPD-L
WS-C2960XR-24TS-I
WS-C2960XR-48TS-I
WS-C2960XR-24PS-I
WS-C2960XR-48LPS-I
WS-C2960XR-48FPS-I
WS-C2960XR-24TD-I
WS-C2960XR-48TD-I
WS-C2960XR-24PD-I
WS-C2960XR-48LPD-I
WS-C2960XR-48FPD-I
WS-C2970G-24TS-E
WS-C2975GS-48PS-L

Catalyst 3500 Series

WS-C3560-24PS
WS-C3560-48PS
WS-C3560G-24TS
WS-C3560G-48TS
WS-C3560G-48PS
WS-C3560G-24PS
WS-C3560-48TS
WS-C3560-24TS
WS-C3560-8PC
WS-C3560-12PC-S
WS-C3560V2-24PS
WS-C3560V2-24TS
WS-C3560V2-48PS
WS-C3560V2-48TS
WS-C3560E-24TD⁵
WS-C3560E-24PD⁵
WS-C3560E-48TD⁵
WS-C3560E-48PD⁵
WS-C3560E-48PDF⁵
WS-C3560E-12D⁵
WS-C3560E-12SD
WS-C3560E-12SD⁵
WS-C3560X-24T⁶
WS-C3560X-48T⁶
WS-C3560X-24P⁶
WS-C3560X-48P⁶
WS-C3560X-48PF⁶
WS-C3560X-24T⁷
WS-C3560X-48T⁷
WS-C3560X-24P⁷
WS-C3560X-48P⁷
WS-C3560X-48PF⁷
WS-C3560CG-8TC-S
WS-C3560CG-8PC-S
WS-C3560C-8PC-S
WS-C3560C-12PC-S

Catalyst 3600 Series

WS-C3650-24TS
WS-C3650-48TS
WS-C3650-24PS
WS-C3650-48PS
WS-C3650-48FS
WS-C3650-24TD
WS-C3650-48TD
WS-C3650-24PD
WS-C3650-48PD
WS-C3650-48FD
WS-C3650-48FQ
WS-C3650-48PQ
WS-C3650-48TQ

Catalyst 3700 Series

WS-C3750G-12S
WS-C3750G-24TS
WS-C3750G-48TS
WS-C3750G-24PS
WS-C3750G-48PS
WS-C3750-24TS
WS-C3750-48TS
WS-C3750-24PS
WS-C3750-48PS
WS-C3750-24FS-S
WS-C3750-24WFS
WS-C3750V2-24PS⁴
WS-C3750V2-24TS⁴
WS-C3750V2-48PS⁴
WS-C3750V2-48TS⁴
WS-C3750V2-24FS⁴
WS-C3750E-24TD⁵
WS-C3750E-24PD⁵
WS-C3750E-48TD⁵
WS-C3750E-48PD⁵
WS-C3750E-48PDF⁵
WS-C3750X-24T⁶
WS-C3750X-48T⁶
WS-C3750X-24P⁶
WS-C3750X-48P⁶
WS-C3750X-48PF⁶
WS-C3750X-24T⁷
WS-C3750X-48T⁷
WS-C3750X-24P⁷
WS-C3750X-48P⁷
WS-C3750X-48PF⁷
WS-C3750X-12S⁸
WS-C3750X-24S⁸
WS-C3750X-12S⁹
WS-C3750X-24S⁹

Catalyst 3800 Series

C3850-NM-4-1G
C3850-NM-2-10G
C3850-NM-4-10G

Catalyst 4500 Series

WS-X4013+TS
WS-X4013+10GE
WS-X4748-SFP-E
WS-X4724-SFP-E
WS-X4712-SFP-E
WS-X4448-GB-SFP
WS-X4506-GB-T
WS-X4516-10GE
WS-X45-SUP6-E¹⁰
WS-X4606-X2¹⁰
WS-X4624-SFP-E
WS-X45-SUP6L-E¹⁰
WS-X4612-SFP-E
WS-X4640-CSFP-E
WS-X4712-SFP+E
WS-X45-SUP7-E
WS-X45-SUP7L-E
WS-X45-SUP8-E
WS-C4500X-32SFP+
WS-C4500X-F-32SFP+
WS-C4500X-40X-ES
C4KX-NM-8SFP+
WS-C4500X-16SFP+
WS-C4500X-F-16SFP+
WS-C4500X-24X-ES

Catalyst 4900 Series

WS-C4948
WS-4928-10GE
WS-C4948E
WS-X4908¹¹

Catalyst 6500 Series

WS-SUP720
WS-SUP720-3B
WS-SUP720-3BXL
WS-SUP32-GE-3B
WS-SUP32-10GE-3B
WS-SUP32-GE-PISA
VS-S720-10G-3C
VS-S720-10G-3CXL
WS-X6724-SFP
WS-X6748-SFP
VS-S2T-10G
VS-S2T-10G-XL
WS-X6824-SFP-2T
WS-X6824-SFP-2TXL
WS-X6848-SFP-2T
WS-X6848-SFP-2TXL
WS-X6904-40G-2T
WS-X6904-40G-2TXL

Catalyst 6800 Series

C6880-X

Data Center and Blade Switching

N7K-M148GS-11
N7K-M148GS-11L
N7K-F132XP-15
N7K-F248XP-25
N7K-F248XP-25E
N77-F348XP-23

Routers

CISCO892F-K9
CISCO892FW-K9
HWIC-1GE-SFP
EHWIC-1GE-SFP-CU
NME-XD-24ES-1S-P
NME-XD-48ES-2S-P
Cisco 2921
Cisco 2951
SM-D-ES3G-48-P
SM-D-ES3-48-P
SM-D-ES2-48
Cisco 3825
Cisco 3845
Cisco 3925
Cisco 3945
Cisco 4451-X
CISCO7301
7304-NPE-G100
7300-NSE-150
WS-SUP720
WS-SUP720-3B
WS-SUP720-3BXL
WS-SUP32-GE-3B
WS-X6724-SFP
WS-X6748-SFP
RSP720-3C-GE
RSP720-3CXL-GE
RSP720-10GE
4GE-SFP-LC
EPA-3GE-SX/LH-LC
A901-12C-F-D
A901-12-C-FT-D
A901-4C-F-D
A901-4-C-FT-D
A901-6CZ-F-D
A901-6-CZ-FT-D
A901-6CZ-F-A
A901-6-CZ-FT-A

LAN Controllers

AIR-CT5760-25-K9
AIR-CT5760-50-K9
AIR-CT5760-100-K9
AIR-CT5760-250-K9
AIR-CT5760-500-K9
AIR-CT5760-1K-K9
AIR-CT5760-HA-K9

¹ SFP ports
² SFP+ ports
³ Client ports
⁴ Uplink ports
⁵ With CVR-X2-SFP (for X2 ports)
⁶ With C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
⁷ With C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
⁸ Client ports and uplink ports with C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
⁹ Uplink ports with C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
¹⁰ With CVR-X2-SFP Twin Gig converter
¹¹ With CVR-X2-SFP Twin Gig converter in a WS-C4900M
