Splice trays, adapter panels and pigtails are included
Item is not assembled and items are packaged separately
Description
48-Strand Pre-Loaded 1RU Singlemode LC Fiber Patch Panel with jacketed Pigtails and Splice Trays, Slide-Out
This rack mount fiber optic patch panel is a 1 Rack Unit (1U/1RU) high density fiber distribution unit that Includes fiber optical pigtail with a jacket, LGX SC adapter panels and three 24 fiber splice trays. This panel also includes a smooth sliding drawer type pull out system.
For additional fiber adapter panels use our LGX FB24 adapter panel inserts. To find out more, give us a call or email us.
Features
Slide-Out Fiber FDU Patch Panel Enclosure
- Fits up to 72 fiber splices
- Fits 3 LGX fiber optic adapter panels
- Includes three 24 fiber splice trays
- Durable powder coat finish
- Made from SPCC steel
- Smooth gliding pull out system

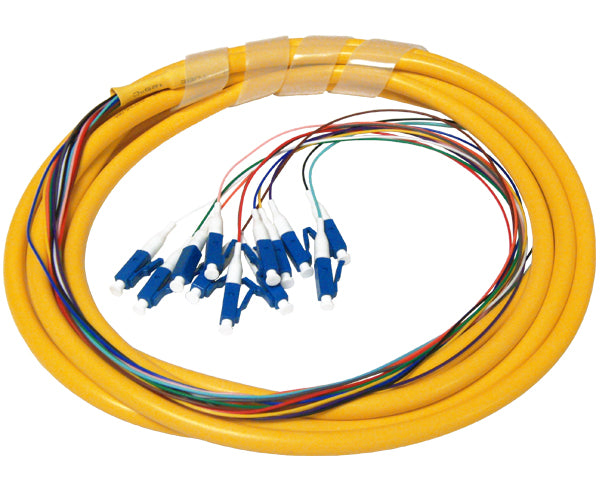

Singlemode Fiber Optic Jacketed Pigtails, LC(UPC), 12 Strand, 2 Meter
- Jacketed Pigtail for tighter spaces.
- Pre-terminated fiber to reduce installation time and ensure accuracy.
- 12 Singlemode LC connectors ready to plug directly into an adapter panel.
Fiber Adapter Plates
- Steel LGX type adapter plates with black paint
- LC duplex fiber adapters/couplers
- Metal clips secure the adapters/couplers in the adapter plates
Specifications
Included
Fiber Patch Panel- 1U Steel Slide-Out Fiber Patch Panel
- Jacketed 2 Meter 12 Fiber Singlemode Pre-Terminated LC
- LC LGX Fiber Adapter Panels
- Blank LGX Adapter Plates
- 3x - 24 Fiber Splice Trays
Physical Properties
- Color
- Black
- Material
- Powder Coated SPCC Steel
What's included
48 Fiber, LC Single Mode Fiber Patch Panel Contents
- 1 - Slide-Out 1U Fiber Patch Panel Housing
- 4 - Single Mode 2 Meter 12 Fiber LC Jacketed Pigtails
- 2 - 24 Port, LC Single Mode Quad Adapter Panel
- 1 - Blank LGX Adapter Plates
- 3 - 24 Fiber Splice Trays with 72 Fiber Protective Sleeves
