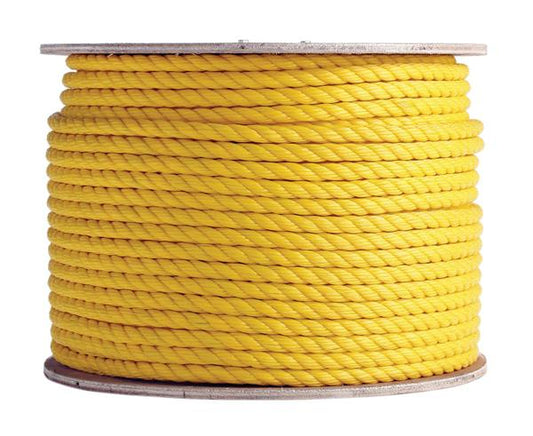

Twisted 3 Strand Polypropylene Rope, U.V. Stabilized, Yellow

This lightweight economical three-strand yellow polypropylene rope is made from premium grade U.V. stabilized polypropylene fiber. Inexpensive, lightweight, and buoyant, polypropylene pulling rope can be used for medium-duty pulling of wire and cable. This type of pulling rope has more stretch than polyester and has excellent dielectric properties.

The minimum break strength varies depending on the diameter size but ranges from 720 lbs. per foot to 12,600 lbs. per foot. Most sizes are supplied in the following lengths 300', 600', 1200', and 2,400', and are supplied on a durable wooden spool.

Features

Premium grade
U.V. stabilized
3 strand
Polypropylene fiber rope
Versatile
Economical
Lightweight
Floats

Specifications

3 Strand Twisted Yellow Polypropylene Rope
Diameter (Inches)	Length (Feet)	Minimum Break Strength (Lbs)	Approximate Density (Lbs/100ft)	Approximate Package Weight (Lbs)
3/16	600	720	0.7	4.2
3/16	1,200	720	0.7	8.4
3/16	6,000	720	0.7	42.0
1/4	100	1,250	1.2	1.2
1/4	300	1,250	1.2	3.6
1/4	600	1,250	1.2	7.2
1/4	1,200	1,250	1.2	14.4
1/4	2,400	1,250	1.2	28.8
1/4	5,000	1,250	1.2	60.0
5/16	600	1,710	1.8	10.8
5/16	1,200	1,710	1.8	21.6
3/8	100	2,440	2.8	2.8
3/8	300	2,440	2.8	8.4
3/8	600	2,440	2.8	16.8
3/8	1,200	2,440	2.8	33.6
3/8	2,400	2,440	2.8	67.2
3/8	3,600	2,440	2.8	100.8
1/2	100	3,780	4.7	4.7
1/2	300	3,780	4.7	14.1
1/2	600	3,780	4.7	28.2
1/2	1,200	3,780	4.7	56.4
1/2	2,400	3,780	4.7	112.8
5/8	100	5,600	7.5	7.5
5/8	600	5,600	7.5	45.0
5/8	1,200	5,600	7.5	90.0
5/8	2,400	5,600	7.5	180.0
3/4	100	7,650	10.7	10.7
3/4	300	7,650	10.7	32.1
3/4	600	7,650	10.7	64.2
3/4	1,200	7,650	10.7	128.4
1	100	12,600	18.0	18.0
1	600	12,600	18.0	108.0
1	1,200	12,600	18.0	216.0
1-1/4	600	18,900	27.0	162.0
1-1/2	600	26,800	38.0	230.0
2	600	46,800	69.0	414.0

Please See Our 'Care and Use' in Additional Information

Additional Information

Proper Care and Use

Warning: Misuse of Ropes Could Result in Serious Injury

CAUTION: Use of Working Loads

Because of the wide range of rope use, rope condition and exposure to the various factors affecting the rope, it is impossible to make blanket recommendations as to the correct choice of rope to use. However, we have provided the tensile strength for each diameter and type of rope. These strengths are based on tests of new and unused rope, with appropriate splices. Proper choice, care and inspection of the rope are essential for reasonably safe use of the rope. Consult your cordage vendor for proper use.

Dynamic Loading Voids Normal Work Loads

Dynamic Loading occurs when rope is subjected to sudden or extreme stress. Figures given as working loads are void if rope has been subjected to dynamic loading, high temperatures, long periods of load, extreme stress, improper storage.

Effect of Temperature on Tensile Strength

The tensile strength charts apply to ropes tested at normal room temperature (70°F). Ropes have lower tensile strength at higher temperatures. Continued exposure at elevated temperatures causes permanent damage.

Avoid Abrasion

All ropes should be protected against sharp edges and abrasive surfaces. When worn areas are visible, the tensile strength is compromised. Protect the rope's surface with chafing gear around the rope.

Avoid Chemicals

Acids and Alkalis are damaging to ropes and fibers. Caution should be used when ropes are used around building cleaning acids, cast soda and paints. Proper inspection should be made of rope prior to use.

Rope Inspection

Rope Inspection should be a continuous process that takes place before, during and after each use. When fiber shows wear in any given area, the rope should be re-splices, downgraded or replaced.

Knots and Splicing

Splicing should be used instead of knots. Knots can decrease a rope's tensile strength by up to 50%

Rope Storage

All ropes should be stored in a clean dry location, out of direct sunlight and extreme heat. Natural fiber ropes, if not kept dry, will rot over time, reducing tensile strengths dramatically.

Sunlight Degradation

Polypropylene and polyethylene ropes are subject to ultraviolet degradation. The product should be replaced when signs of excessive deterioration is indicated by discoloration or broken filaments. Tensile strengths may be dramatically reduced by sunlight degradation.

Dielectric Properties

Dielectric property testing applies only to new, unused clean rope and holds true only under these ideal conditions. Dirt, grease, entrapped moisture, or other contaminants will increase conductivity greatly. Nylon or natural fiber ropes would not be used around energized lines. Rope dielectric properties must be tested under actual operation conditions.
