Descriptions
Basic PDU 120V 15A w/ (12) 5-15R Sockets (Horizontal)
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.
This horizontal rack mount PDU features (12) NEMA 5-15R outlets (2 front-facing, 10 rear-facing) protected by a single 15A circuit breaker, a reset button in the event of an overload, and 700 joules of surge suppression. The On/Off switch includes a hinged cover to protect from accidental shutoffs and three indicator lights display the operating status. Options cord lengths are available: 3ft, 6 ft and 10 ft.
Features
Features
- 12 NEMA 5-15R outlets (2 front/10 rear)
- Single 15A circuit breaker w/reset button
- 700 joules surge suppression
- Covered On/Off switch
- 3 status indicator lights
Specifications
Specifications
| Input Voltage | 120V |
| Input Frequency | 60Hz |
| Maximum Input Current | 15A |

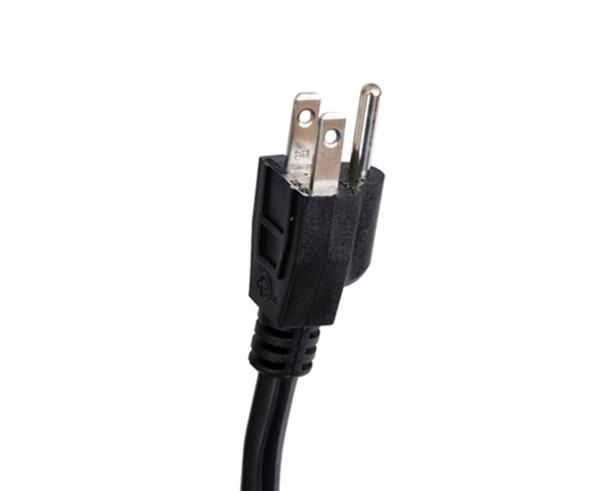

| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Specs |
14 AWG 3-Wire Grounded SJT |
| Output Voltage | 120V |
| Output Frequency |
60Hz |
| Output Wattage | 1800W |
| Circuit Breaker / Overload Protection | 15A |
| Maximum Continuous Operating Voltage | 130V |
| Outlet Quantity | 2 Front/ 10 Rear |
| Outlet Type | NEMA 5-15R |
| Surge Suppression | 700 Joules |
| Protection Mode | N-H, N-G, H-G |
| Response Time | <1 Nanosecond |
| Maximum Surge Current | 10KA |
| Maximum Surge Voltage | 470V |
| Clamping Voltage | 775V |
| EMI/RFI Filtration | 40~60dB@10MHz |
| PDU Style | Rack Mount 1U |
| Pre-Installed Rack Mount Brackets | Removable |
| Housing Material | PVC and Metal Enclosure |
| Product Dimensions (HxWxD) | 1.75” x 17.5” (without ears) |
| Product Weight | 3.5 Lbs |
| Inner Carton Quantity | 1 Unit |
| Inner Carton Dimensions (LxWxH) | 3.6” x 21.25”x 2.5” |
| Inner Carton Weight | 3.71 Lbs |
| Master Carton Quantities | 10 pcs |
| Master Carton Dimensions (LxWxH) | 13.78” x 21.65”x 11.61” |
| Master Carton Weight | N/W: 35 lbs. G/W: 37.1 lbs |
| UL Certified Power Cord | Yes |
| RoHS | Yes |
| Operating Temperature Range | -40° to 70° |
| Operating Humidity | ≤95% |
What's in the box?
What's in the box?
- Qty 1 - Basic PDU 120V 15A w/ (12) 5-15R Sockets (Horizontal)
