To see which products are compatible with our 1-port, 2-port, 3-port, 4-port
and 6-port MIG+ Wall Plates click on the additional information tab.

Description

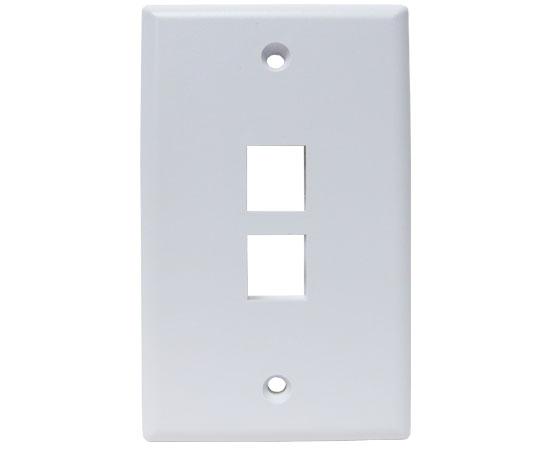

MIG+ Wall Plates - 1, 2, 3, 4, & 6 Ports - Almond, Ivory, White, Black:

Our Commercial Grade Single Gang MIG+ Wall Plates are the perfect option for your home or office, providing keystone connections for high-speed Internet, cable, satellite TV, and more. MIG+ Wall Plates mount flush against the wall and allow the MIG+ jacks to mount flush in the wall plates, thus decreasing the chances of snagging on the wall plate or the jack. Our MIG+ Wall Plates offer field-configurable flexibility in a professional and clean single-piece housing which allows them to be easily installed.

Our MIG+ Wall Plates are designed to work with our MIG+ line of keystone jacks and high density inserts. We offer them in 1-port, 2-port, 3-port, 4-port, and 6-port options, which allows for a variety of configurations and room for future expansion if needed. We also offer them in 4 color options: almond, ivory, white and black. Our MIG+ Wall Plates are high density type wall plates that include 2 mounting screws that are painted to match the wall plate colors. Our line of MIG+ Wall Plates is made from ABS UL 94V-0 plastic, with rounded edges to lessen the amount of snagging and to give the wall plates a professional, finished look. Our MIG+ Wall Plates are 2.75" wide by 4.5" tall and are UL listed and RoHS Compliant.

Features

Features

Single Gang
Commercial Grade
Flush Mount
1 2 3 4 & 6 Ports
Field-Configurable Flexibility
Single Piece Housing
Fits All MIG+ Jacks & IN2 Inserts
2 Mounting Screws Included
Easy Installation
UL Listed
RoHs Compliant
Available in 4 Colors
Size: 2-3/4" Wide x 4-1/2" Tall

Specifications

Specifications

Physical Characteristics
Material	ABS UL 94V-0
Color	White \| Ivory \| Almond \| Black
Height	114 mm
Width	69.6 mm
Thickness	6 mm
Port Hole Dimension	14.6 mm x 16.2 mm \| Supports new MIG+ Keystone Jacks

Note: Mounting Screws painted to match plate color.

Additional Information
Port Configurations	1 \| 2 \| 3 \| 4 \| 6
Applications	Voice \| Data \| Audio \| Video \| Security \| keystone Modules \| CAT3, 5E, 6 \| RJ45
Description	WP2 Series, Wall Plate, 2.3/4(W)x4.1/2(H) - (Designed to fit all MIG+ Keystone Inserts)
Important Notes	The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only

Additional Information

Additional Information

Wall plates protect electrical outlets and accommodate a variety of cabling solutions such as coaxial, twisted pair, fiber, and HDMI cables. Wall plates protect your network by keeping your connections safe from dust, physical damage, and foreign objects. We carry a variety of wall plates ranging from single port to up to twelve ports.

To learn more about our Wall Plate Accessories please visit our overview page. Our Double Gang Wall Plates can be combined with a wide array of products such as

What's in the Box

What's in the Box

Qty 1 - MIG+ Wall Plate
Qty 2 - Mounting Screws
