Images are for demonstrative purposes only.

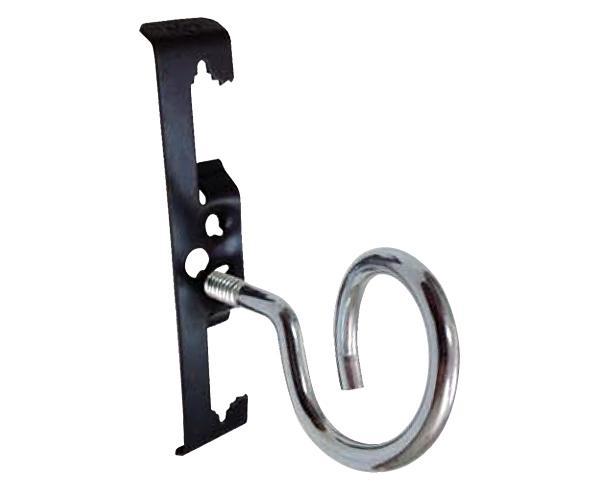

The Pressed Beam Clamp or Multi-Function Clip is not included. See related items below for accessories.
These products are all Made to Order
Which means they are non-cancelable and non-refundable.
Description
Description

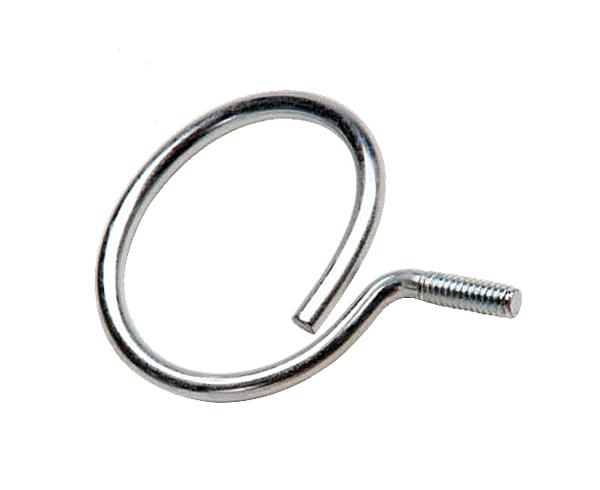

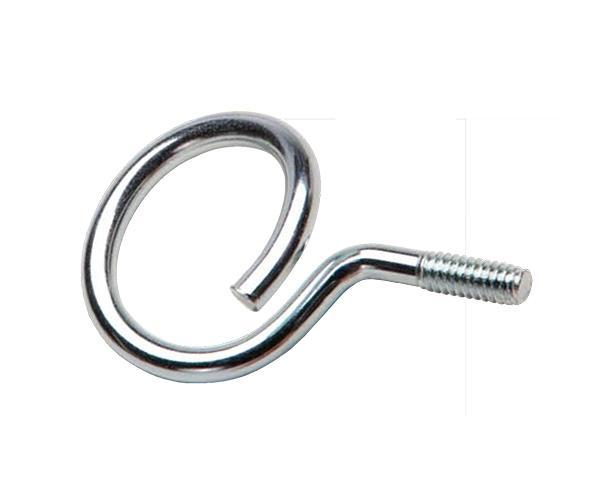

Steel Bridle Rings for Beam Clamps, 10x24 Thread
Support and secure your communication and other low-voltage cables with this 3/4" or 2" diameter bridle ring. Simple, effective, and constructed of solid, low-carbon steel. Excellent for use with our Beam Clamps to help manage cables. The perfect choice for cable management made easy!
Features
Features

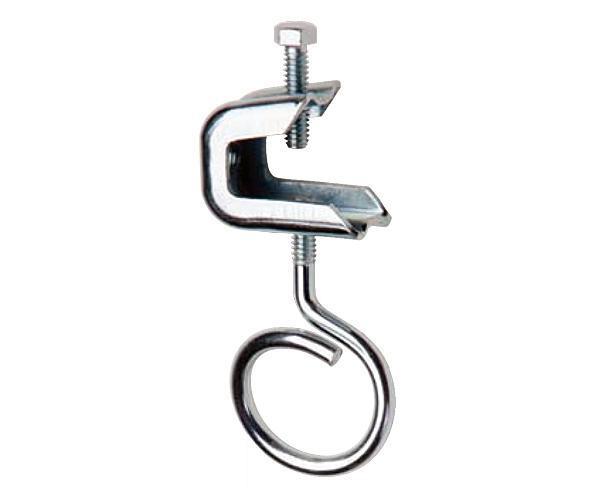

- Works well with our Pressed Beam Clamps, P/N JH-4483-BC.
- Material: Low Carbon Steel.
- Finish: Electro-Galvanized Zinc.
- Load Capacity (all sizes): Max static load 45 lbs.
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Hook Size | 10x24 (3/4") |
| Hook Size | 10x24 (2") |
| Load Capacity | 45 lbs. |
| Material | Low Carbon Steel |
| Finish | Electro-Galvanized Zinc |
| SMOOTH EDGES ELIMINATE CABLE SNAGS | |
Additional Information
Additional Information
| Product Videos | |
|---|---|
HOW-TO: INSTALL HANGING HARDWARE AND BRIDLE RINGS |
CABLE MANAGEMENT: SECURE MULTIPLE CABLES WITH BRIDLE RINGS |
Available Bridle Ring Styles:
- 3/4" Bridle Ring for Beam Clamp, 10x24
- 2" Bridle Ring for Beam Clamp, 10x24
- 1 1/4" Bridle Ring for Beam Clamp, 1/4x20 Thread
- 2" Bridle Ring for Beam Clamp, 1/4x20 Thread
What’s In The Box
What’s In The Box
- Qty 1 - Bridle Rings for Beam Clamps
