Descriptions

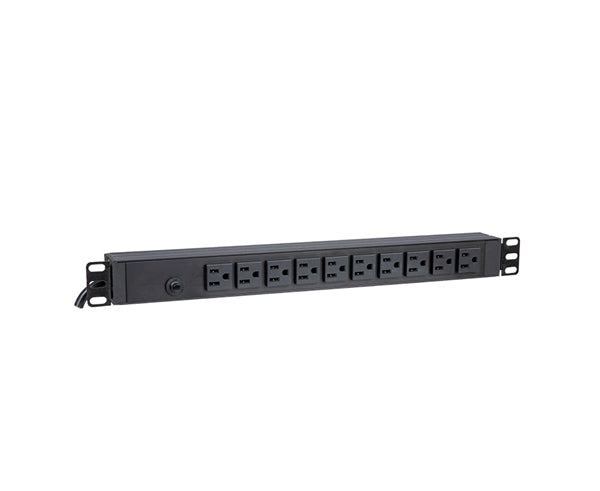

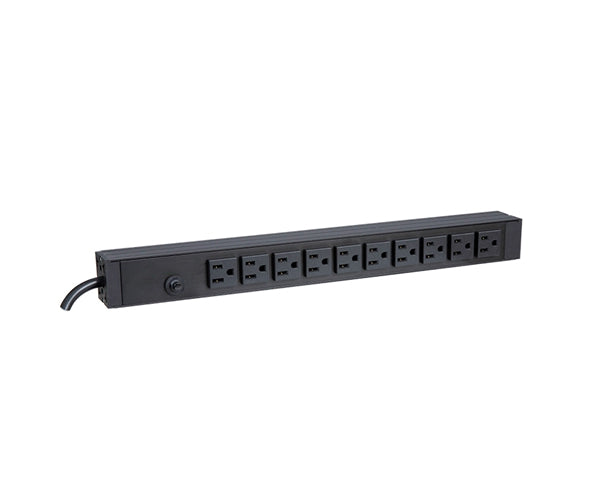

Basic Rack Mount PDU - 20A, 120V, 1.9kW w/NEMA 5-20R Outlets
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.
VPB-5151015H features (10) NEMA 5-15R outlets protected by a single 15A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA 5-15P plug connects to an external power supply, while the versatile mounting design allows outlets to face any of four directions.
Features
Features
- 10 NEMA 5-15R outlets
- Single 15A circult breaker w/reset button
- Switchless design prevents accidental shutdowns
- Includes toolless 19" EIA mounting brackets that allow outlets to face the front, back, top, or bottom
- Conforms to UL 60950-1 and is RoHS compliant
Specifications
Specifications
| OVERVIEW |
||
|---|---|---|
| Item Number |
NPNB-VPB-5201020H |
|
| PDU Type |
Basic |
|
| Form Factor |
Horizontal (1U) |
|
| UPC Code |
846788117291 | |
| OUTPUT |
||
| Rated Output Voltage | 120V Single Phase | |
| Output Recepticles | (10) NEMA 5-20R | |
| Overload Protection | (1) 20A Circuit Breaker | |
| INPUT |
||
|
Rated Input Voltage |
120V Single Phase | |
|
Max. Input Current |
20A |
|
|
Frequency |
50/60 Hz |
|
|
Power Capacity |
1.9 kW |
|
|

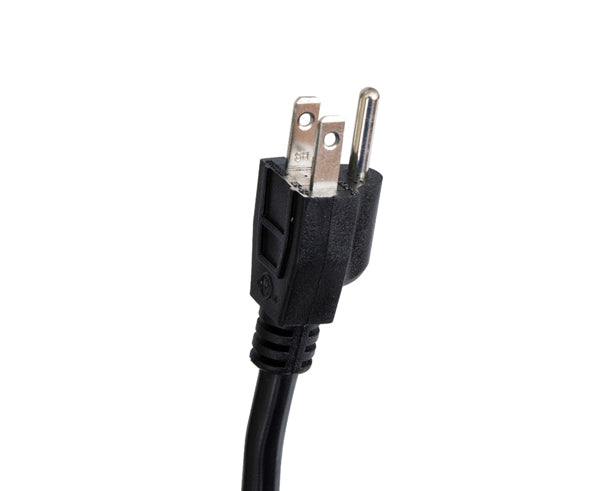

Plug Type |
NEMA 5-20P |
|
|
Cord Type |
123 AWG |
|
|
Cord Length |
10 ft (3.05 meters) |
|
| PHYSICAL |
||
|
Unit Width |
17.1 inches (435.6mm) |
|
|
Unit Height |
1.7 inches (44.0mm) |
|
|
Unit Depth |
1.7 inches (44.0mm) |
|
|
Unit Weight |
2.7 lbs (1.0 kgs) | |
|
Shipping Length |
33.5 inches (851mm) |
|
|
Shipping Width |
3.0 inches (76.2mm) |
|
|
Shipping Depth |
3.0 inches (76.2mm) |
|
|
Shipping Weight |
3.2 lbs (1.5 kgs) |
|
|
Chassis Material |
Annodized Aluminum (black) |
|
|

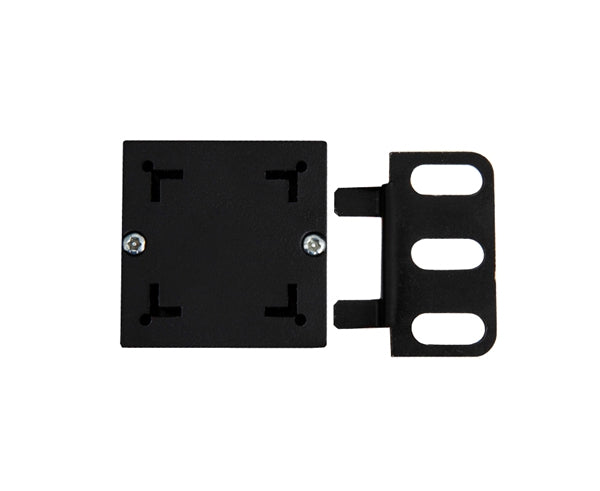

Mounting Options |
Toolless 19 inch EIA 4-way mounting brackets |
|
| ENVIRONMENTAL | ||
|
Operating Temperature |
30° to 140° F (0° to 60° C) |
|
|
Operating Relative Humidity |
0 - 95% |
|
|
Operating Elevation |
0 - 13,123 ft (4,000 meters) |
|
|
SPECIAL FEATURES |
||
|
Breaker Reset |
Push button on front |
|
|
COMPLIANCE |
||
|
Certifications |
Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme RoHS |
|
What's in the box?
What's in the box?
- Qty 1 - Basic Rack Mount PDU - 20A, 120V, 1.9kW w/NEMA 5-20R Outlets
