Basic Rack Mount PDU - 30A, 200-240V, 5.7kW w/IEC C13 Outlets
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.

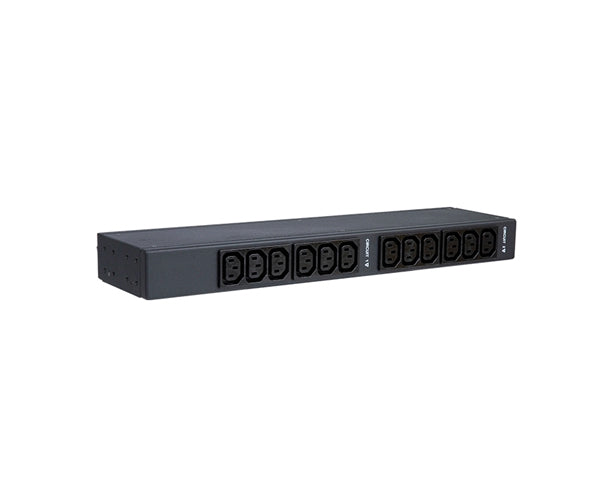

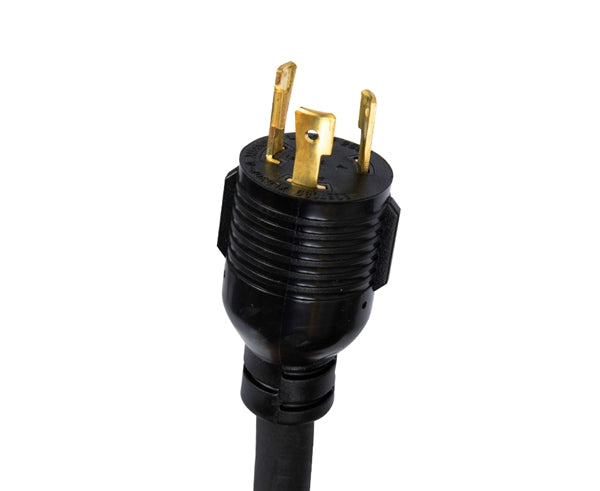

NPNB-VPB-L631213H features (12) IEC C13 outlets protected by a pair of hydraulic magnetic circuit breakers and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L6-30P twist-lock plug connects to an external power supply, while the versatile mounting design allows outlets to face the front or back.
Features
Features
- 12 C13 outlets

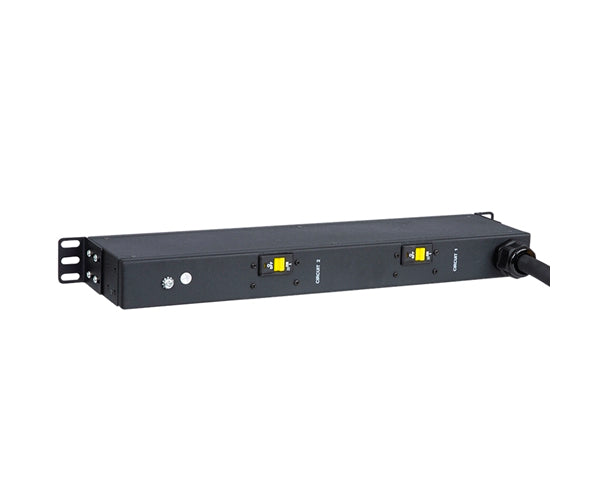

- Dual 20A 2 pole hydraulic magnetic circuit breakers
- Switchless design prevents accidental shutdowns

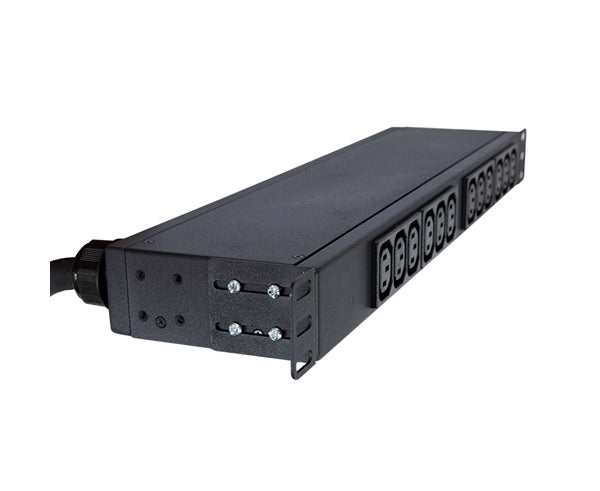

- Includes 19" EIA mounting brackets that allow outlets to face the front or back
- Conforms to UL 60950-1 and is RoHS compliant
Specifications
Specifications
| OVERVIEW |
||
|---|---|---|
| Item Number |
NPNB-VPB-L631213H |
|
| PDU Type |
Basic |
|
| Form Factor |
Horizontal (1U) |
|
| UPC Code |
846788117314 | |
| OUTPUT |
||
| Rated Output Voltage | 208V Single Phase | |
| Output Recepticles | (12) IEC C13 | |
| Overload Protection | (2) 20A Magnetic Hydraulic Circuit Breakers | |
| INPUT |
||
|
Rated Input Voltage |
200-240V Single Phase | |
|
Max. Input Current |
30A |
|
|
Frequency |
50/60 Hz |
|
|
Power Capacity |
5.7 kW |
|
|
Plug Type |
NEMA L6-20P Twistlock |
|
|
Cord Type |
10/3 AWG |
|
|
Cord Length |
10 ft (3.05 meters) |
|
| PHYSICAL |
||
|
Unit Width |
16.94 inches (430.4mm) |
|
|
Unit Height |
1.7 inches (44.0mm) |
|
|
Unit Depth |
4.33 inches (110mm) |
|
|
Unit Weight |
7.7 lbs (3.5 kgs) | |
|
Shipping Length |
20.4 inches (518.2mm) |
|
|
Shipping Width |
8.5 inches (215.9mm) |
|
|
Shipping Depth |
2.9 inches (73.66mm) |
|
|
Shipping Weight |
8.2 lbs (3.7 kgs) |
|
|
Chassis Material |
Annodized Aluminum (black) |
|
|
Mounting Options |
Toolless 19 inch EIA 2-way mounting brackets |
|
| ENVIRONMENTAL | ||
|
Operating Temperature |
30° to 140° F (0° to 60° C) |
|
|
Operating Relative Humidity |
0 - 95% |
|
|
Operating Elevation |
0 - 13,123 ft (4,000 meters) |
|
|
SPECIAL FEATURES |
||
|
Breaker Reset |
Push button on front |
|
|
COMPLIANCE |
||
|
Certifications |
Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme RoHS |
|
What's in the box?
What's in the box?
- Qty 1 - Basic Rack Mount PDU - 30A, 200-240V, 5.7kW w/IEC C13 Outlets
