Description
Easy-Splice Push On Gel Stub
Quickly and conveniently insulate, seal, and protect stub splice connections up to 1,000 volts.
Features
Features
- Quickly and conveniently insulate, seal, and protect stub splice connections up to 1,000 volts.
- Specially formulated material provides excellent abrasion resistance, insulation value, and UV resistance.
- Each cap size is designed to fit a wide range of cable sizes the expandable design keeps the cap as small as possible allowing it to expand only as much as needed to fit.

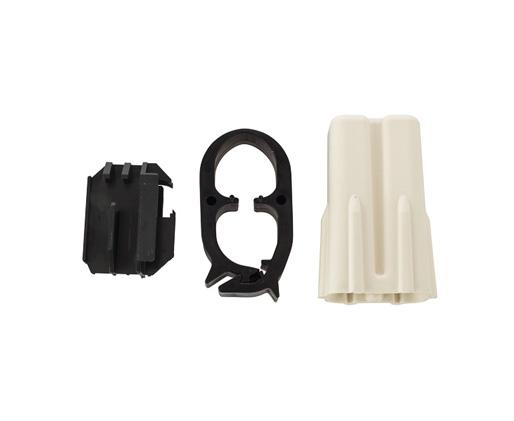

- The GSS-10 kit is designed for three phases in one kit.
- It includes one gel filled cap, one cap clamp, and one phase separator.

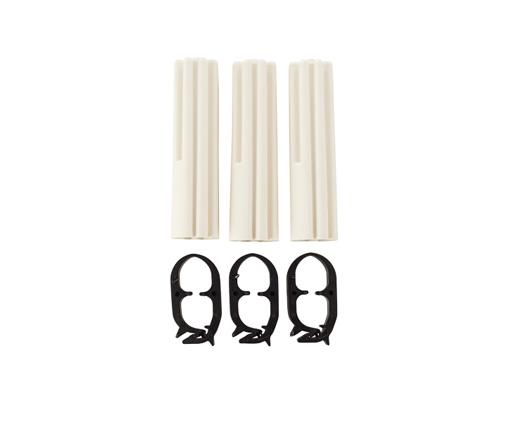

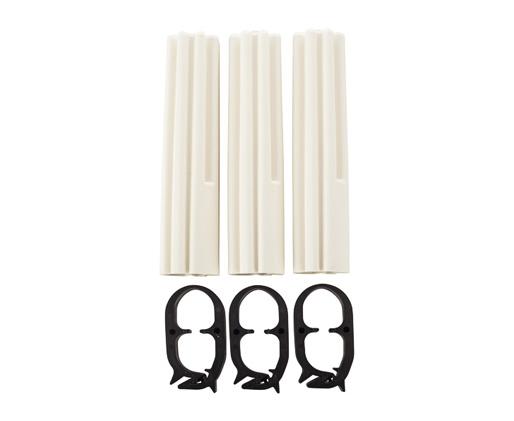

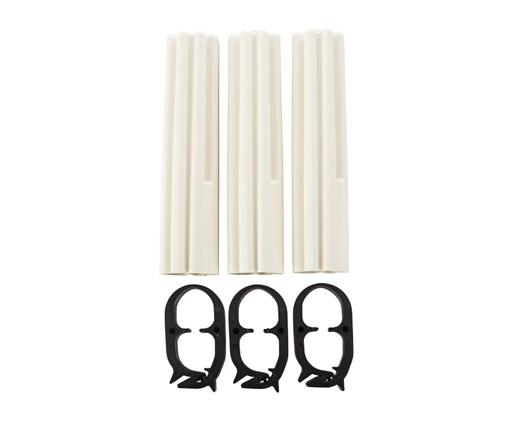

- The remaining kits include three of each – one per phase.
Specifications
Specifications
| Part No. | Wire Range | Max Bolt Width (In.) | Max Bolt Length (In.) | Max Lug Total Length (In.) | Max Lug Barrel Length (In.) |
| NPNB-GSS-10 | 16-10 AWG | 0.375 | 0.500 | 1.000 | 0.500 |
| NPNB-GSS-2 | 8-2 AWG | 0.625 | 1.000 | 2.000 | 1.000 |
| NPNB-GSS-4/0 | 2-4/0 AWG | 0.850 | 1.300 | 3.000 | 1.500 |
| NPNB-GSS-500 | 250-500 MCM | 1.100 | 1.850 | 5.000 | 2.000 |
What's In The Box
What's In The Box
- Qty 1 - Easy-Splice Push On Gel Stub
