Description

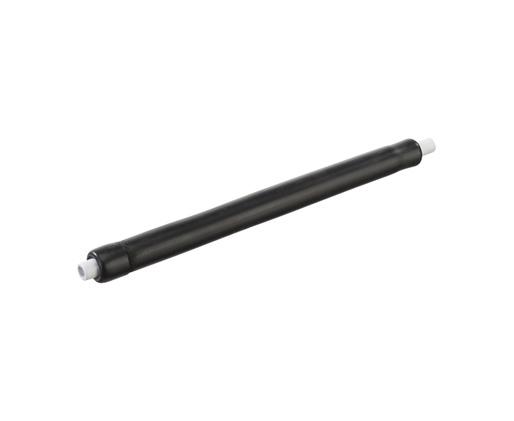

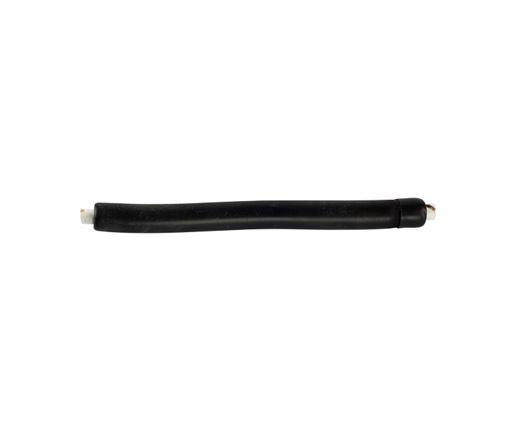

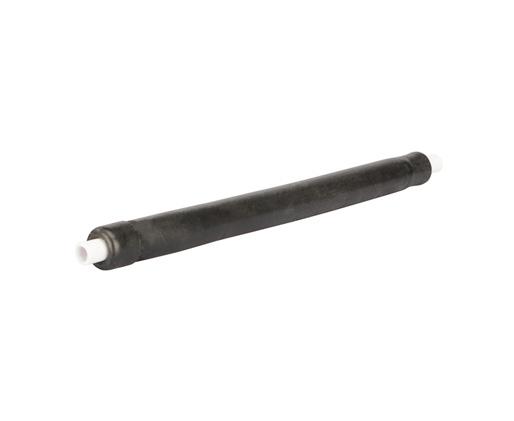

Easy Splice™ Direct Burial Roll-On Splice Sleeve
Easy “roll-on” way to insulate and seal cable connections up to 1,000 volts.
Features
- Easy “roll-on” way to insulate and seal
- Cable connections up to 1,000 volts.
- The gripping force of the EPDM elastomer combines with high performance sealant to form a water resistant, UV resistant insulating sleeve appropriate for direct burial application over in-line compression connectors.
- Ideal for use where gas or electric heating devices are not approved.
- RUS accepted for use as a secondary tap or splice cover.
- Each kit includes one Easy-Splice™ sleeve and sealant strips
Specifications
| Part No. | Wire Range | Cable O.D. (In.) | Sleeve Length (In.) | Max. Connector Length (In.) |
| NPNB-ROS-2/0 | 8-2/0 AWG | 0.22-0.68 | 8.00 | 5.00 |
| NPNB-ROS-250 | 1/0 AWG-250 MCM | 0.50-0.90 | 9.50 | 4.50 |
| NPNB-ROS-600 | 250-600 MCM | 0.70-1.20 | 12.00 | 7.00 |
- UL Listed and CSAus.
- Qualified to ANSI C119.1-1986. CSA certified to C22.2 No. 198.2. UL 486D listed, suitable for direct burial.
- Application: For use on standard poly or elastomeric-insulated cables. Insulates and seals in-line compression connectors or terminal lugs. Cable can be energized immediately.
What's In The Box
- Qty 1 - Easy Splice™ Roll On Splice Kit
