This cassette is compatible with all 118 LGX® patch panels.
Description
Description

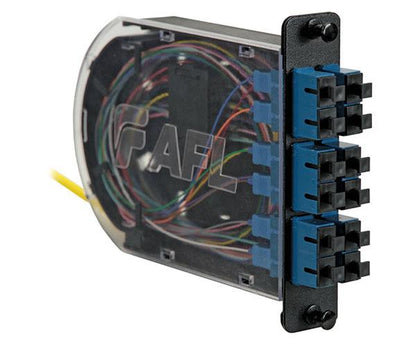

Poli-MOD SC Patch and Splice Module, 12 Ports, Single Mode, UPC
AFL's Poli-MOD is an innovative patch and splice module, which offers an inventive and effective means to accommodate up to 24 fiber interconnections in an industry-standard, single-slot LGX®118 footprint. The new Poli-MOD offers a unique and robust way to secure cable without the need for time-wasting, tie-wrap alternatives.

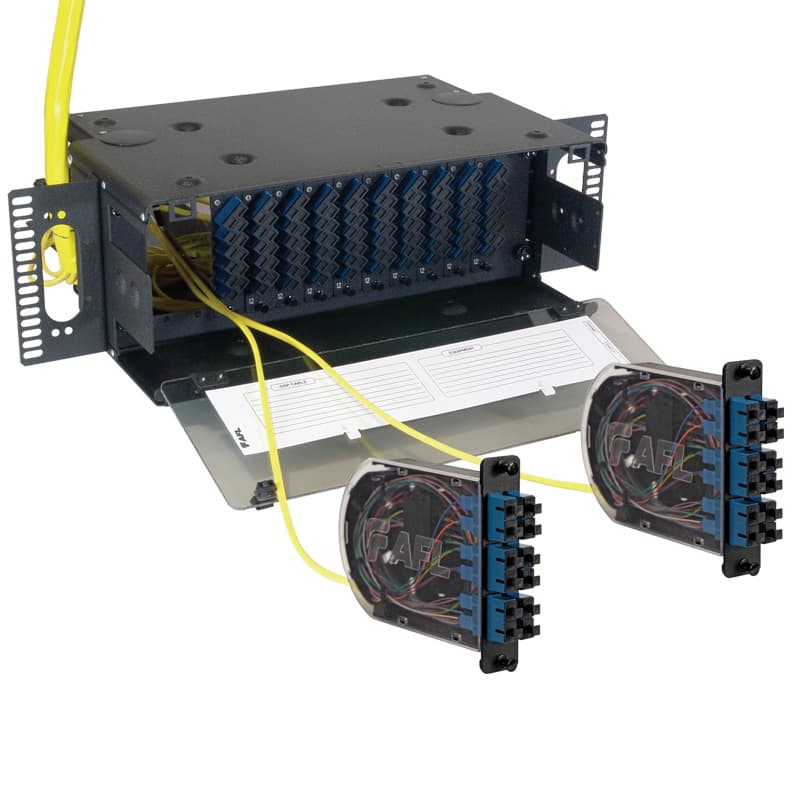

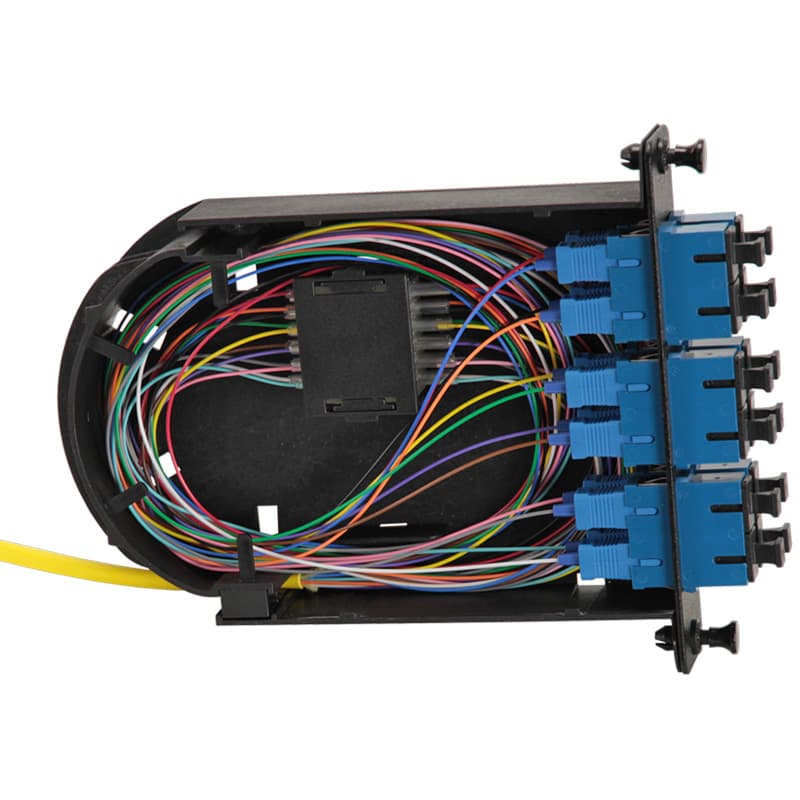

Additionally, the module leverages a creative snap-in splice sleeve cradle to securely manage both single and ribbon fiber arrangements. These features provide the capacity to outfit a standard 4RU rack-mount panel with up to 288-fiber interconnections.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- 12-fiber interconnection capacity
- SC connectors, single mode UPC
- LGX® 118 compatibility (single-slot module)
- Effective and time-saving cable mounting mechanism (no tie-wraps necessary)
- Inventive splice sleeve cradle
- Organized fiber routing
- Fixed solution, no moving parts
- Multi-directional cable entry access
Applications
- Telecommunications Closets
- Data Centers
- Customer Premise
- Local Area Networks
- Wide Area Networks
- Central Offices
- Hub Sites
- Cabinets
- Remote Terminals
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR TYPE | SC |
| MODE | SINGLE MODE, UPC |
| FIBER CAPACITY | 12 |
| PHYSICAL DIMENSIONS | |
| DEPTH | 6.07" (154MM) |
| HEIGHT | 1.14" (29MM) |
| WIDTH | 5.12" (130MM) |
Additional Information
Additional Information
| Product Videos | |
|---|---|
POLI-MOD PATCH AND SPLICE MODULE |
|
Poli-MOD® Patch and Splice Module 3D Model |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Cassette, Poli-MOD SC Single Mode Patch and Splice Module, UPC
