Grounding Connector Cu Lay-In 4-14 DB Rated - Discontinued

Grounding Connector Cu Lay-In 4-14 DB Rated - Discontinued

Primus Cable

SKU:NPNB-GLC-4DB


Material
Regular price Price: $12.14
Regular price Sale price Price: $12.14
*Shipping calculated at checkout
Sale Sold out
View full details

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Grounding Connector Cu Lay-In 4-14 DB Rated

A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.

Features

  • Lay-in lugs are used for grounding or in continuous loop bonding and are available in several variations, depending on the application. GLC-4
  • Copper body with a steel screw and is used for general grounding applications with copper wire. GLC-4 DB/GLC-4 DBP
  • Copper bodies with stainless steel screws, are UL Listed for direct burial in earth or concrete with copper wire.

Specifications

Part No. Certification Material Wire Range Use Length (in.) Width (in.) Height (in.)

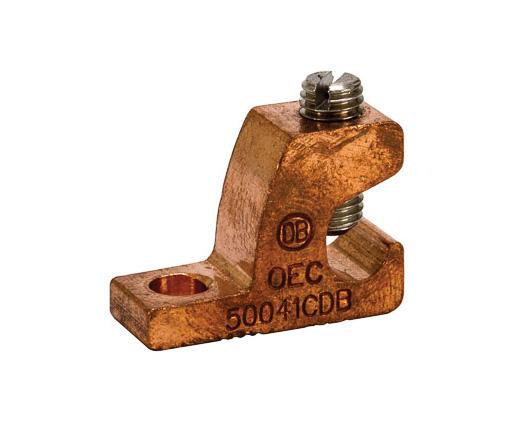

NPNB-GLC-4DB cULus Copper With Stainless Steel Screws 4-14 AWG Direct Burial For CU Wire Only 1.312 0.396 0.908

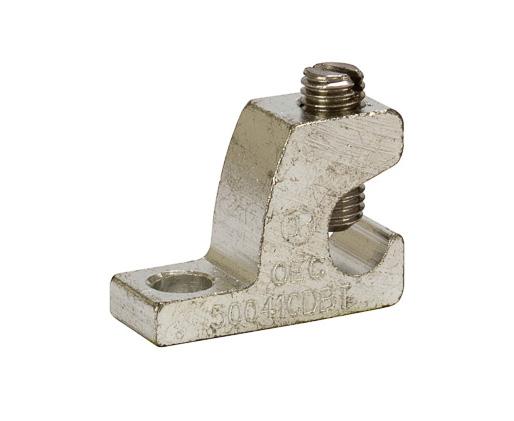

NPNB-GLC-4DBP cULus Tin-plated Copper With Stainless Steel Screws 4-14 AWG Direct Burial For CU Wire Only 1.312 0.396 0.908
  • cULus Listed 467 Grounding & Bonding.
  • UL467 Listed, Grounding & Bonding.
  • *UL486 A Listed wire connector.
  • Temperature Rating: 90 °C.
  • Voltage: 600V.



What's In The Box

  • Qty 1 - Ground Connector Cu Lay-In 4-14 DB Rated
