Description

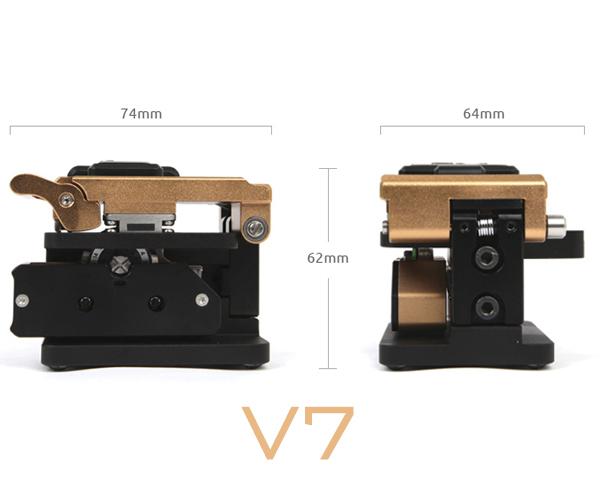

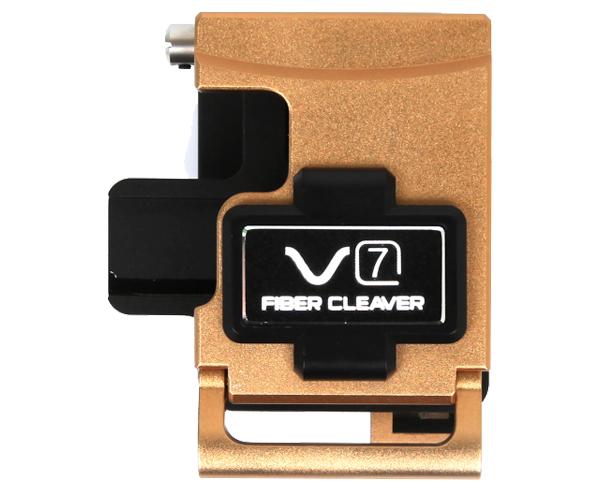

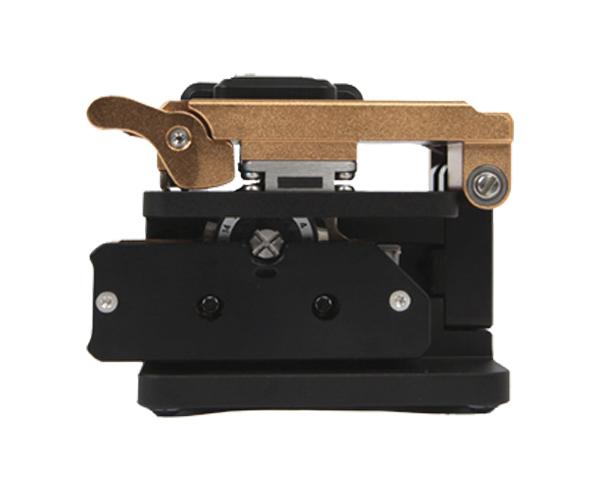

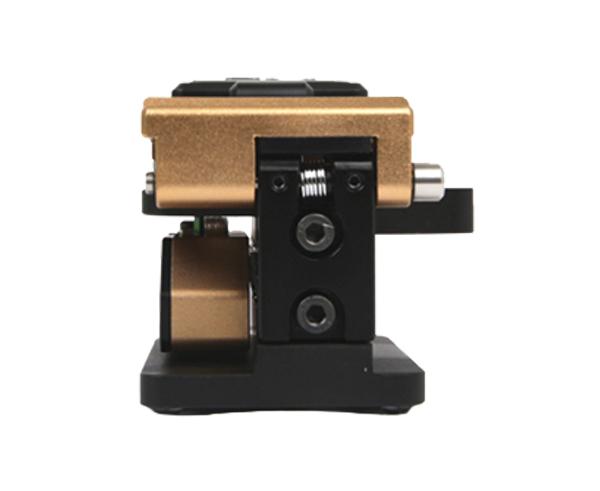

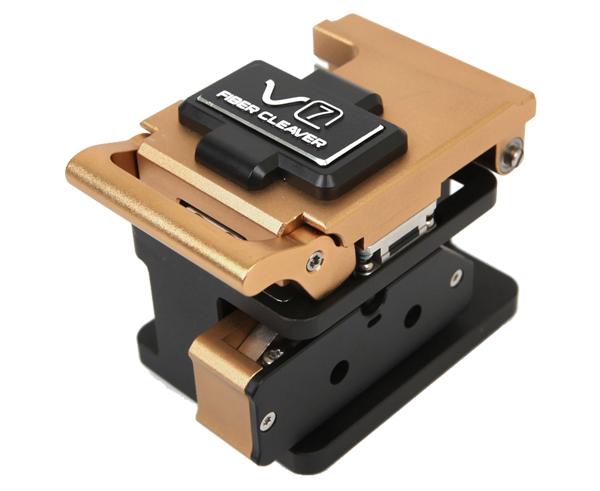

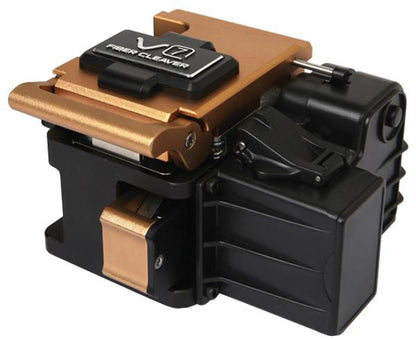

High Precision Cleaver V7/V7+
High-precision optical fiber cleaver V7 cuts optical fiber very precisely. V7 can be used for a wide range of holders for up to twelve ribbon cables as well as universal holders for 250um, 900um and 3.0mm fibers and flat cables. V7 fiber cleaver is easy and simple to operate in two steps to maximize work efficiency.
V7 is available with optional products which automatically pick up pieces of optical fiber (cutting blades provide more than 48,000 cuts with easy blade position selection). V7's superior cutting capability allow users to nail the most accurate cut and be prepared for the ideal fusion splicing.
Features
Applicable to Single and Ribbon Fiber
- High precision cleaving for ribbon fiber cable as well as 100µm to 900µm, 2mm- 3mm and drop cable with universal holder.
- Durable blade lifetime over 48,000 fiber cleaves.

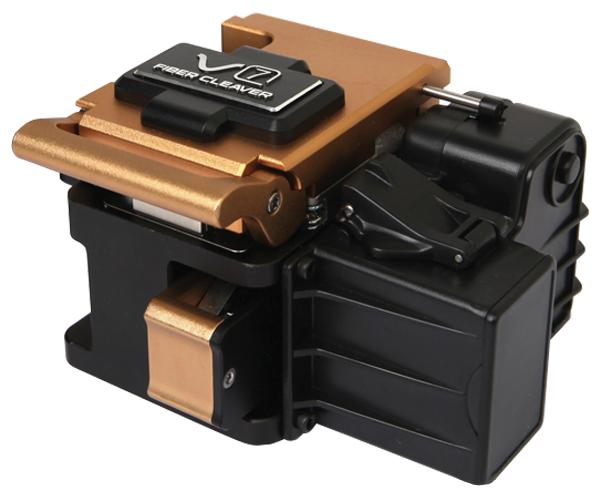

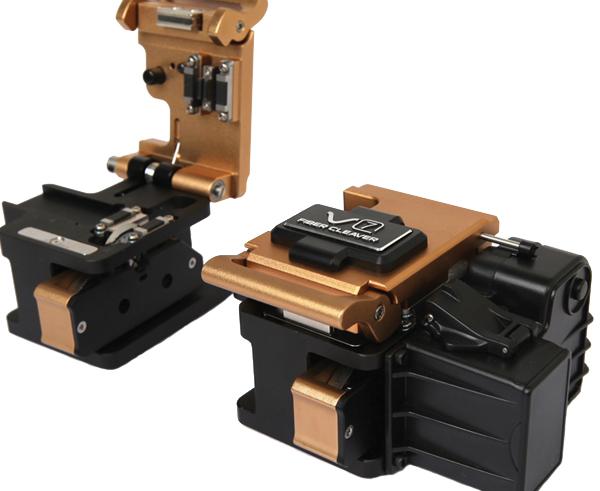

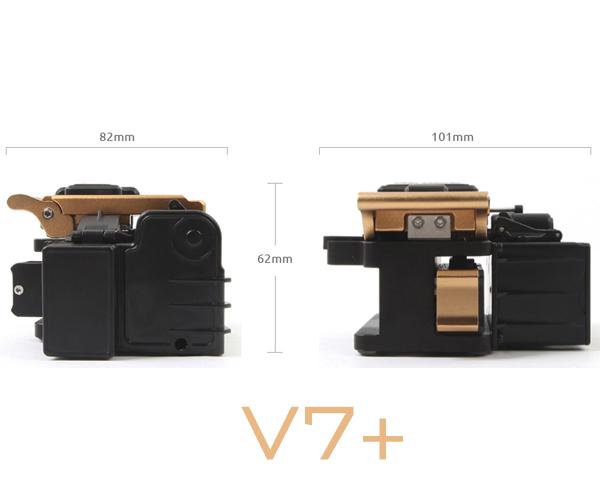

- Optional Automatic fiber shard collector (V7+)
Specifications
| Specifications | ||
|---|---|---|
| Fiber Type | Single Fiber & Ribbon Fiber | |
| Cladding Diameter | 125μm | |
| Cleave Length |
Single Fiber: 8~20mm Ribbon Fiber: 10mm |
|
| Applicable Fiber Type |
Single Fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon Fiber: 2 to 12 ribbon fiber cable |
|
| Cleaved Angle | Less than 0.5 Degrees | |
| Blade Life Span | Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights) | |
| Operation Steps | 2 Steps | |
| Reclaim Function | Blade pushback | |
| Holder |
Single: Universal holder Ribbon: Replaceable holder |
|
