Description
Horizontal Finger Duct Cable Management, 1U, 2U
Protect and organize cables with our plastic Finger Duct Cable Managers, available in 1U and 2U capacities. Featuring a removable cover that also swings open 45° and pass-through openings in the back panel, these cable managers provide support to both fiber and copper cables.
Features
Features
- 19” EIA 310D compliant
- Mounting hardware included
- Available in 1U (Plastic or Steel) and 2U (Plastic)
Specifications
Specifications

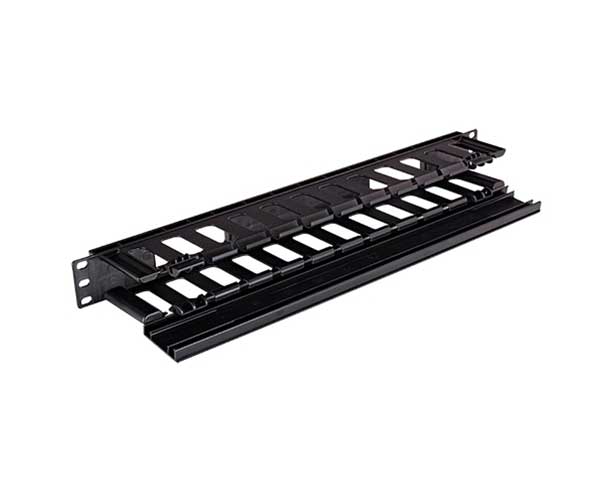

| 1U Horizontal Finger Duct Cable Manager | ||
|---|---|---|
| Product Number | NPNB-RAMPFD1 | NPNB-RAMSFD1 |
|
Material |

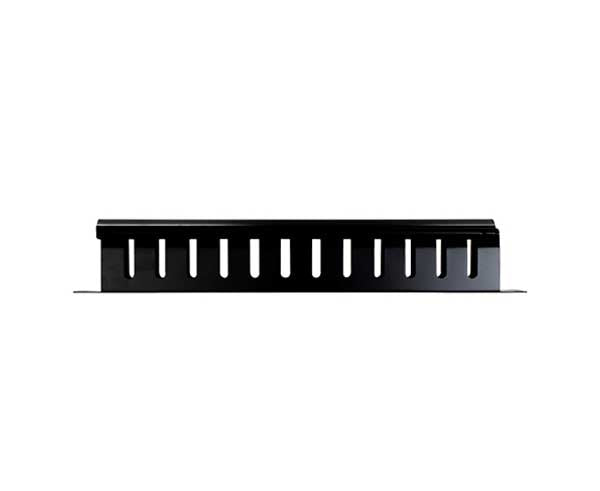

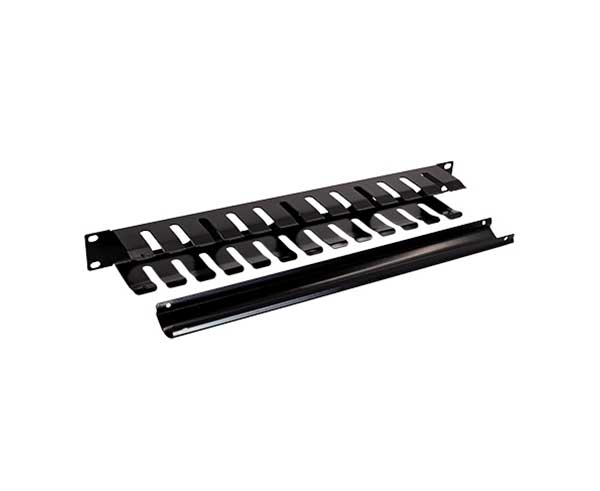

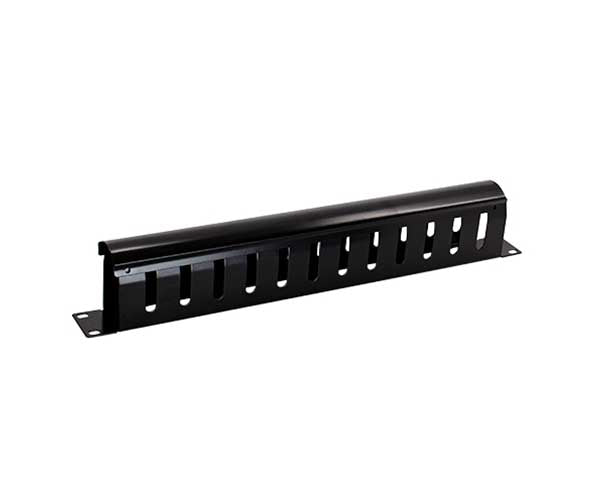

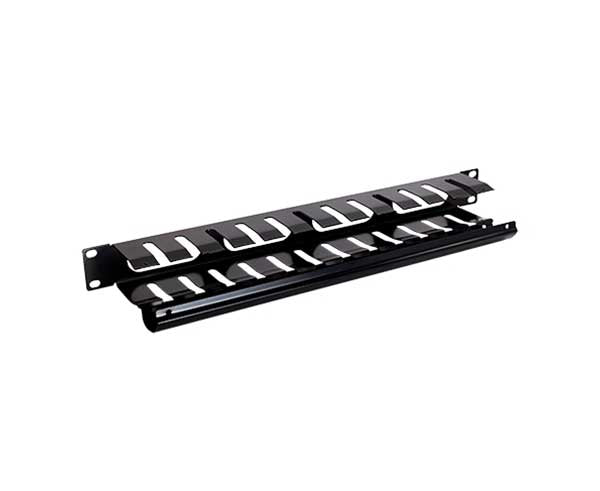

Plastic | Steel (18 Gauge Cold Rolled Steel) |
| Dimension (HxWxD) | 1.88” x 19” x 3.38” |
1.75” x 19” x 2.68” |
|
Removable Front Cover |
Swings Open 45° |
Yes |
|
Cable Capacity (CAT5e) |
40 (Based on 50% Fill Rate) | 72 (Based on 50% Fill Rate) |
|
Cable Capacity (CAT6) |
26 (Based on 50% Fill Rate) | 46 (Based on 50% Fill Rate) |
|
Cable Capacity (CAT6A) |
14 (Based on 50% Fill Rate) | 25 (Based on 50% Fill Rate) |
|

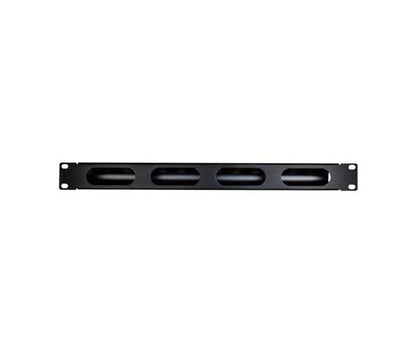

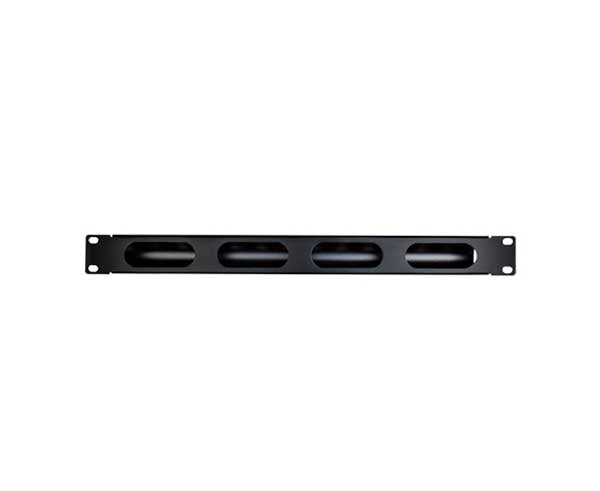

No. of Cable Pass-Through Openings |
2 | 4 |
| Pass Through Dimensions (Per) | 3.5" x 1" | - |
| Mounting Hardware | Included | Included |
| Qty Per Package | 1 (Sold Individually) | 1 (Sold Individually) |

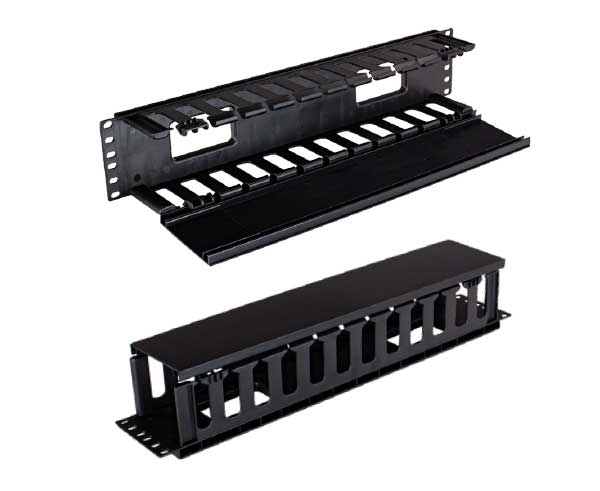

| 2U Horizontal Finger Duct Cable Manager | |
|---|---|
| Product Number | NPNB-RAMPFD2 |
| Material | Plastic |
| Dimension (HxWxD) | 3.63” x 19” x 3.38” |
| Removable Front Cover | Swings Open 45° |
| Cable Capacity (CAT5e) | 123 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6) | 79 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6A) | 42 (Based on 50% Fill Rate) |
| Pass Through Dimension (Per) | 3.5" x 1.5" |
| No. of Cable Pass-Through Openings | 2 |
| Mounting Hardware | Included |
| Qty Per Package | 1 (Sold Individually) |
What's in the box?
What's in the box?
42U:
- Qty 1 - 42U Horizontal Finger Duct Cable Manager
45U:
- Qty 1 - 45U Horizontal Finger Duct Cable Manager
48U:
- Qty 1 - 48U Horizontal Finger Duct Cable Manager
52U:
- Qty 1 - 52U Horizontal Finger Duct Cable Manager
