Various lead times may apply to this product. Please contact us for more details.Description
Horizontal Finger Duct Cable Management, 1U, 2U
Protect and organize cables with our plastic Finger Duct Cable Managers, available in 1U and 2U capacities. Featuring a removable cover that also swings open 45° and pass-through openings in the back panel, these cable managers provide support to both fiber and copper cables.
Features
Features
- 19” EIA 310D compliant
- Mounting hardware included
- Available in 1U (Plastic or Steel) and 2U (Plastic)
Specifications
Specifications

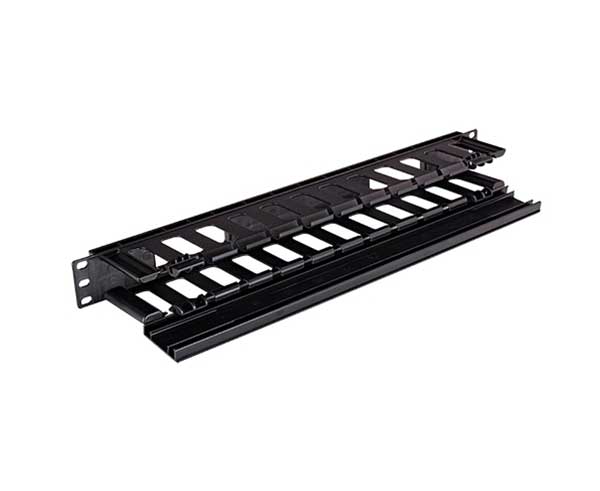

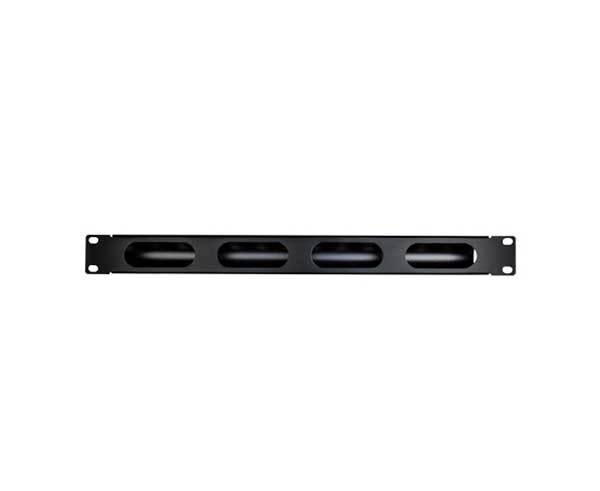

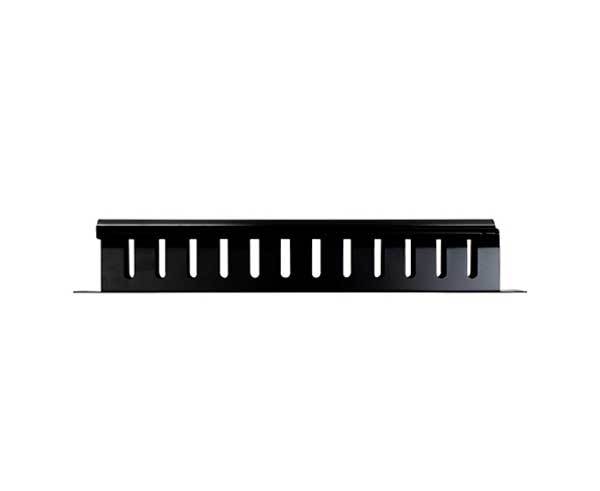

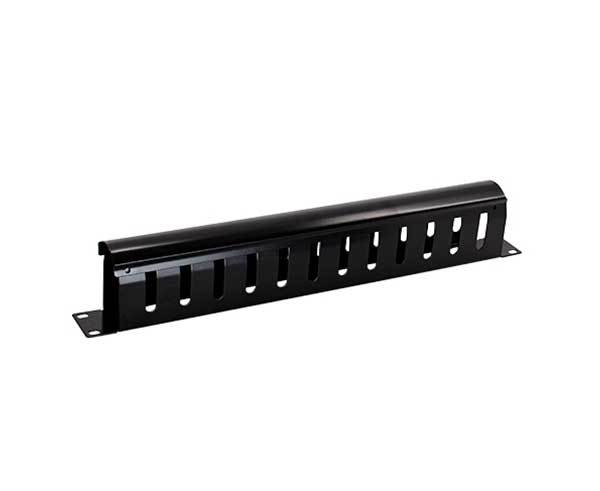

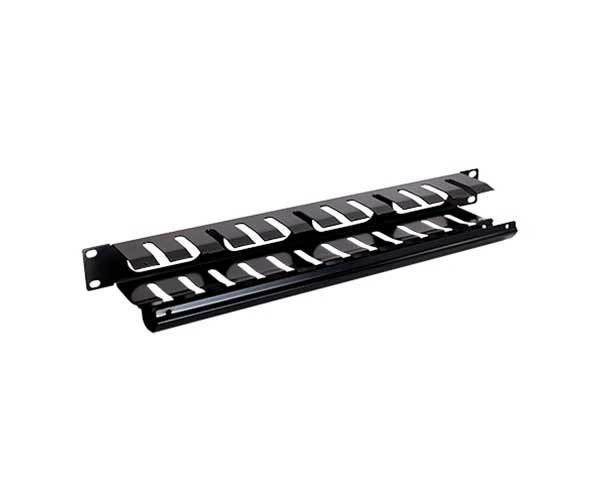

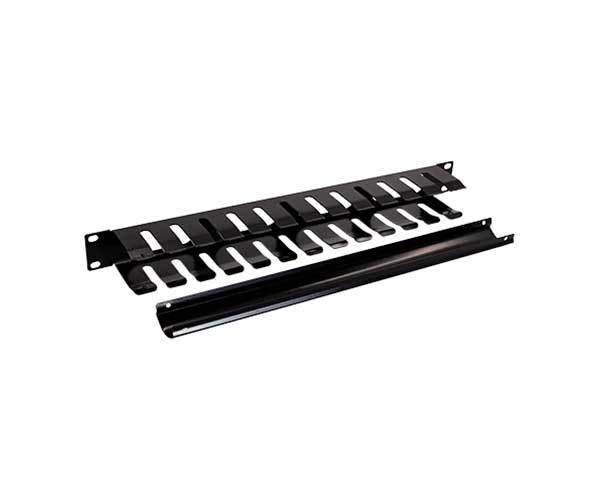

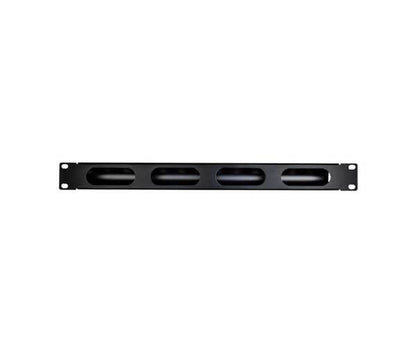

| 1U Horizontal Finger Duct Cable Manager | ||
|---|---|---|
| Product Number | NPNB-RAMPFD1 | NPNB-RAMSFD1 |
|
Material |
Plastic | Steel (18 Gauge Cold Rolled Steel) |
| Dimension (HxWxD) | 1.88” x 19” x 3.38” |
1.75” x 19” x 2.68” |
|
Removable Front Cover |
Swings Open 45° |
Yes |
|
Cable Capacity (CAT5e) |
40 (Based on 50% Fill Rate) | 72 (Based on 50% Fill Rate) |
|
Cable Capacity (CAT6) |
26 (Based on 50% Fill Rate) | 46 (Based on 50% Fill Rate) |
|
Cable Capacity (CAT6A) |
14 (Based on 50% Fill Rate) | 25 (Based on 50% Fill Rate) |
|
No. of Cable Pass-Through Openings |
2 | 4 |
| Pass Through Dimensions (Per) | 3.5" x 1" | - |
| Mounting Hardware | Included | Included |
| Qty Per Package | 1 (Sold Individually) | 1 (Sold Individually) |

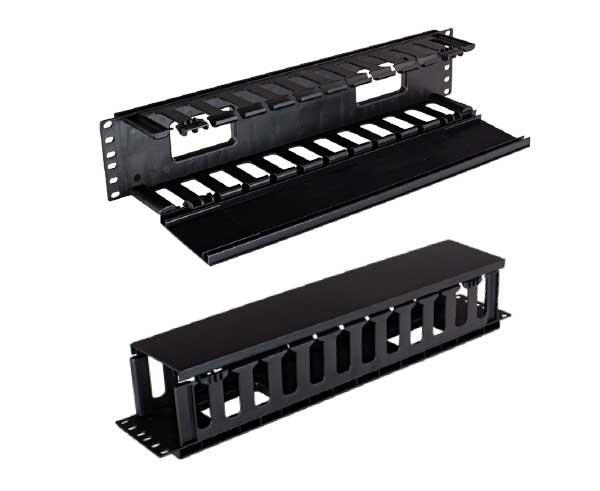

| 2U Horizontal Finger Duct Cable Manager | |
|---|---|
| Product Number | NPNB-RAMPFD2 |
| Material | Plastic |
| Dimension (HxWxD) | 3.63” x 19” x 3.38” |
| Removable Front Cover | Swings Open 45° |
| Cable Capacity (CAT5e) | 123 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6) | 79 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6A) | 42 (Based on 50% Fill Rate) |
| Pass Through Dimension (Per) | 3.5" x 1.5" |
| No. of Cable Pass-Through Openings | 2 |
| Mounting Hardware | Included |
| Qty Per Package | 1 (Sold Individually) |
What's in the box?
What's in the box?
42U:
- Qty 1 - 42U Horizontal Finger Duct Cable Manager
45U:
- Qty 1 - 45U Horizontal Finger Duct Cable Manager
48U:
- Qty 1 - 48U Horizontal Finger Duct Cable Manager
52U:
- Qty 1 - 52U Horizontal Finger Duct Cable Manager
