Network Rack, Swing-Out Wall Mount Bracket, Hinged, Adjustable Depth 2U, 4U, 8U

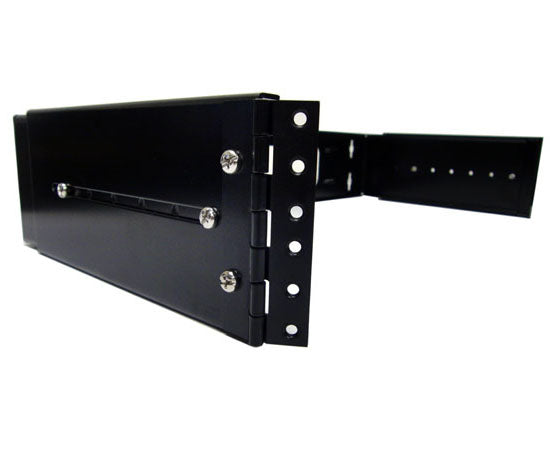

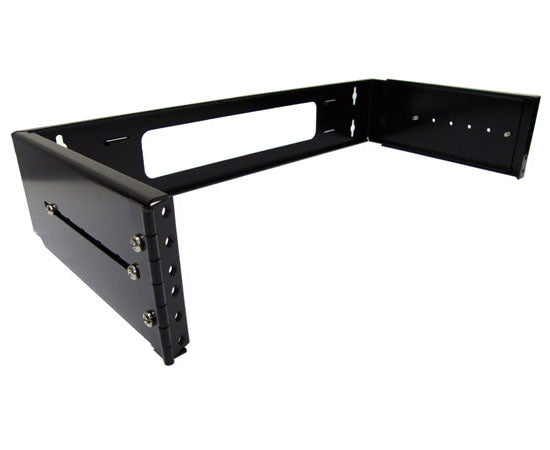

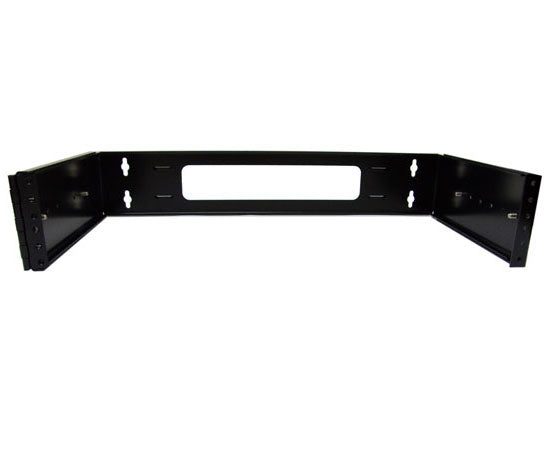

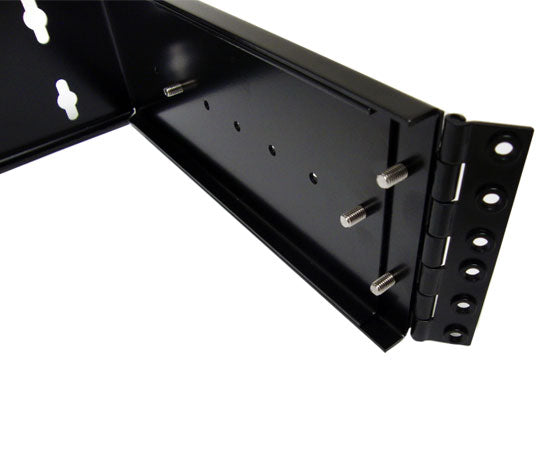

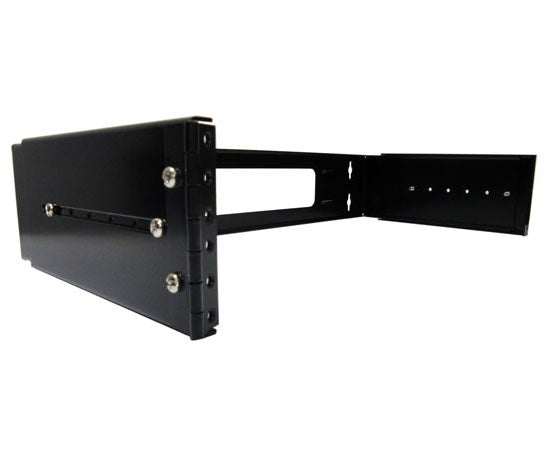

Adjustable Depth Hinged Wall Mount Bracket

The Hinged Wall Mount Bracket is ideal for two patch panels, switches or additional devices where up to 14" depth is needed. The adjustable depth design gives you 9 to 14 inches of depth to work with, and the hinged design allows panels to swing out for easy rear access. This hinged patch panel bracket has a weight capacity of 45 lbs and provides an economical and flexible alternative to buying a larger and more expensive networking cabinets, racks or enclosures, and also allows you to save space by mounting on a wall or inside an existing closet or enclosure.

This swing-out bracket has a rear access cutout that is big enough to feed whatever cables you need through the mounting surface with ease.

Features

• Hinged Type Wall Mount Bracket
• Depth Adjusts from 9" to 14"
• Weight Capacity: 45 lbs
• Meets ISO Standards
• UL Listed
• Install Instructions and Mounting Screws Included

2U Features

• 2U - holds Patch Panels, Rackmount Switches or any 2U combination

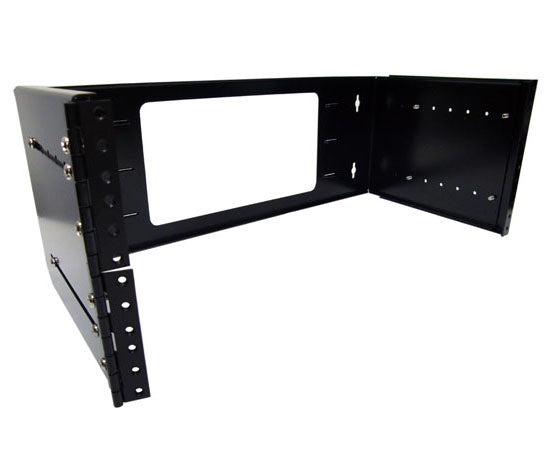

4U Features

• 4U - holds Patch Panels, Rackmount Switches or any 4U combination

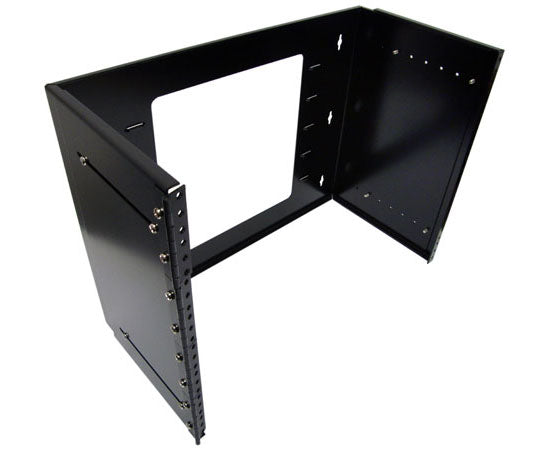

8U Features

• 8U - holds up to (2) 96-Port Patch Panels, Rackmount Switches or any 8U combination

Specifications

• 19" Width
• Adjustable Depth From 9" To 14"
• Weight Capacity: 45 lbs
• 2.0mm Steel SPCC
• Black Color Paint

2U Specifications

• 2U (2 x EIA Units) (3 1/2" Height)

4U Specifications

• 4U (4 x EIA Units) (7" Height)

8U Specifications

• 8U (8 x EIA Units) (14" Height)

Network Wall Rack & Bracket System Accessories

The network wall rack provides innovative networking and cable management solutions, especially when floor space is limited. Install a network wall rack and you can keep networking cables conveniently out of the way and organized. We offer a variety of network wall racks and bracket solutions including: swing-out open frame wall mounts, swing-out brackets, V-line open frame wall mounts and brackets. Our network wall rack solutions will help maximize the efficiency of your system.

To learn more about our Network Wall Racks & Wall Brackets please visit our overview page. Our Swing-Out Wall Mount Bracket can be combined with a wide array of products such as:

• Wall Mount Hardware Kit
• Phantom Class Swing-Out Open Frame Wall Mounts
• Cable Management Solutions
• Component Shelves, Rackmount Drawers, CPU Brackets

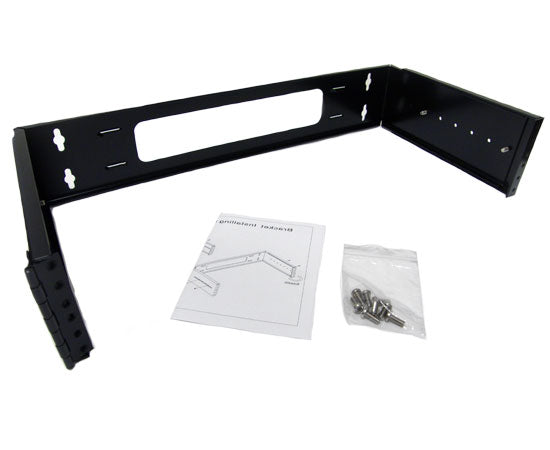

What's in the box?

• Qty 1 - Adjustable Depth Hinged Wall Mount Bracket
• Qty 4 - Mounting Screws
