Description

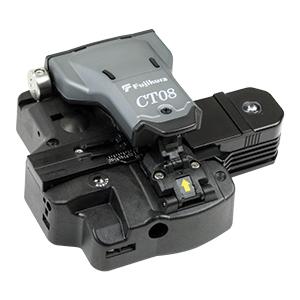

AFL CT-08 Fiber Optic Cleaver Kit

The CT08 cleaver is an extremely rugged, durable, and easy to use single fiber cleaver. Ideal for FTTH applications, the CT08 provides unmatched levels of impact resistance and also eliminates the requirement for tools during blade rotation. A thumbwheel on the bottom of the cleaver is utilized for blade rotation, and the blade position indicator has been relocated to enable quick and easy viewing.

The top clamp opens to a position past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted automatically when opening the top clamp and is activated upon closing, making this a true one-step cleaver. The cleaver blade and fiber clamping mechanism is extremely easy to replace in the field. A manual scrap collector is included.

Features

Dedicated for single fiber cleaving
Ruggedized design withstands extreme shock levels
Tool free blade rotation
Simple one-step operation
Blade and clamp/anvil assembly are field serviceable

Specifications

ITEM		VALUE
Applicable Fiber	Fiber Type	Single Mode Optical Fiber
	Fiber Type	Multimode Optical Fiber
	Fiber Count	Single Fiber
	Cladding Dia.	Approx. 125 μm
Applicable Coating	Fiber Plate	AD-50 : Max. 3 mm coating diameter
Applicable Coating	Fiber Holder	Coating shape. : Refer to splicer fiber holder options
Cleave Length	Fiber Plate	AD-50 [CD = coating diameter] CD= 250 μm or less : 5 to 20 mm 250 μm < CD < 1000 μm : 10 to 20 mm 1000 μm < CD < 3 mm : 14 to 20 mm
Cleave Length	Fiber Holder	Approx. 10mm
Cleave Angle	Single Fiber	Avg. 0.3 to 0.9 degrees
Blade Life		Approx. 48,000 fiber cleaves
Physical description	Dimensions W	Approx. 120 mm when closing the lever
	Dimensions D	Approx. 95 mm when closing the lever
	Dimensions H	Approx. 58 mm when closing the lever
	Weight	Approx. 185 g
Environmental condition	Temperature	Operate : -10 to 50oC
	Temperature	Storage : -40 to 80oC
	Humidity	Operate : 0 to 95% non-condensing
	Humidity	Storage : 0 to 95% non-condensing
Screw hole for tripod		1/4-20UNC
Other features	Blade rotation	Manual rotation dial
	Replaceable parts	Blade
	Replaceable parts	Clamp Arm

What's in the Box

What's in the Box

(1) - AD-50 Adapter Plate
(1) - CC-34 Carrying Case
(1) - SPA-CT08-10 Spacer
