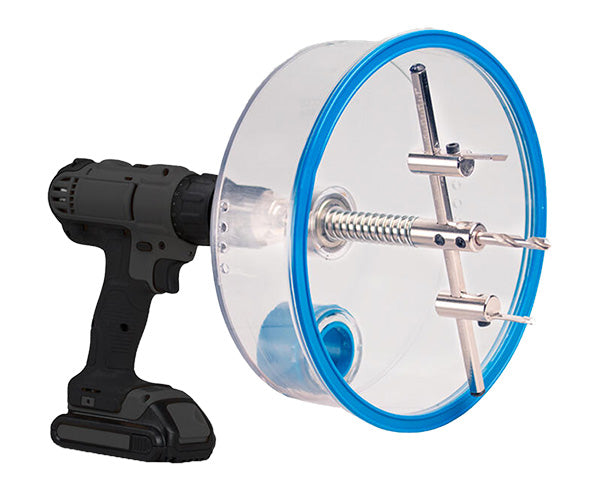

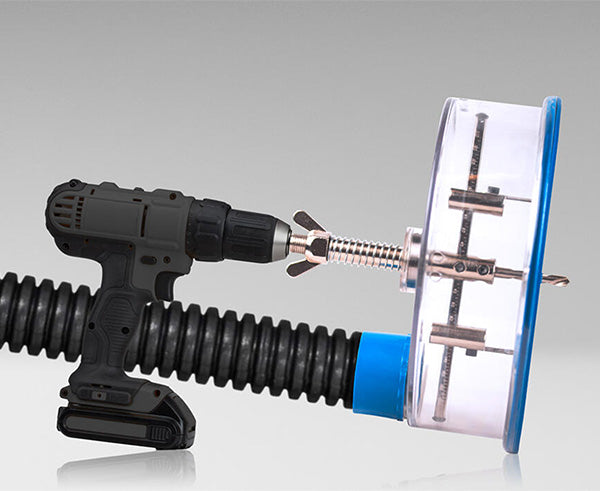

Power drill and vacuum not included with hole cutter
Description
AHC-19 Jonard Tools | Adjustable Round Hole Cutter w/ Vacuum Port, 9"

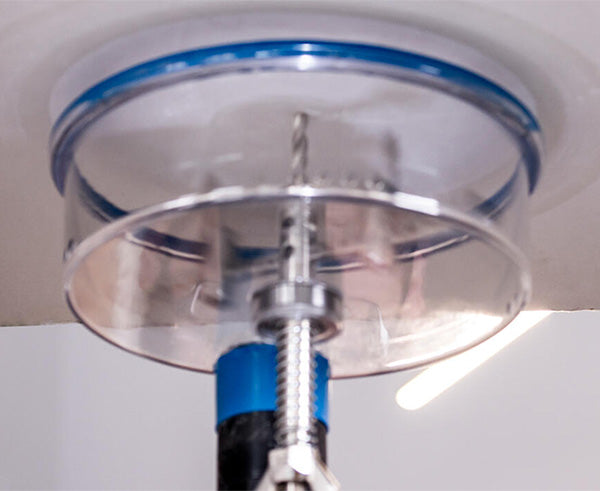

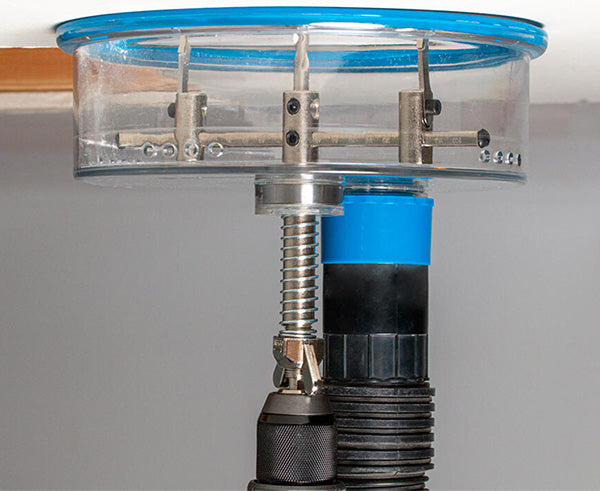

This hand tool is designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects.
Features
Features

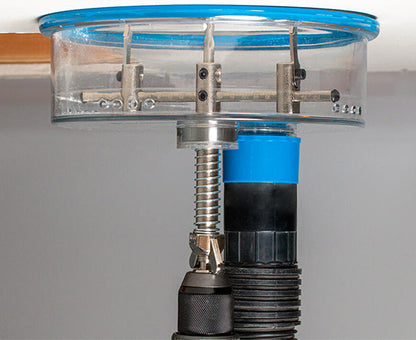

- Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
- Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (27 mm) thick

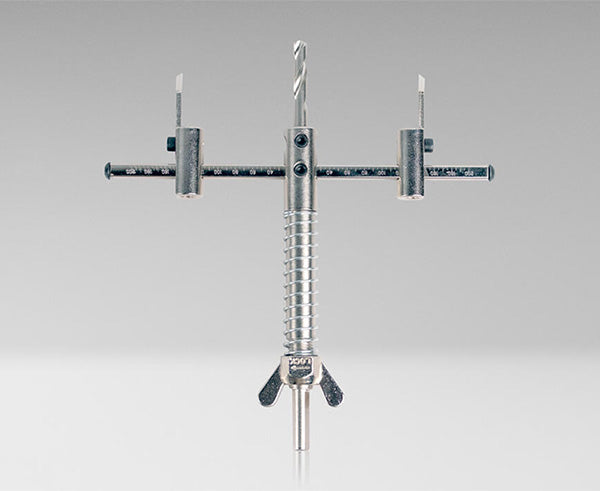

- Cutting depth is adjustable via hex locknut and compression spring
- Cuts hole sizes from 2.2" to 9" (56 mm - 228.6 mm) in diameter

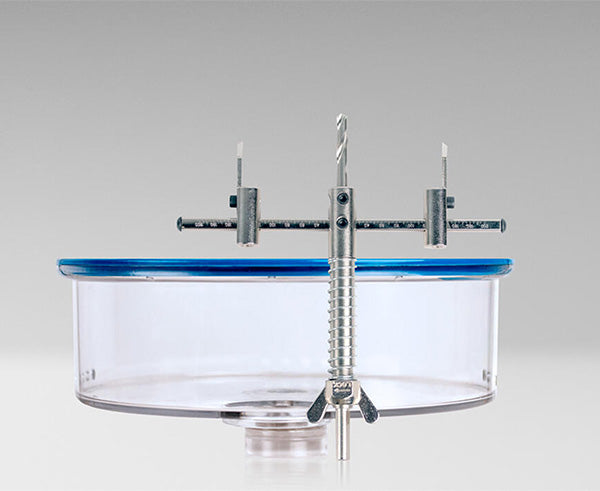

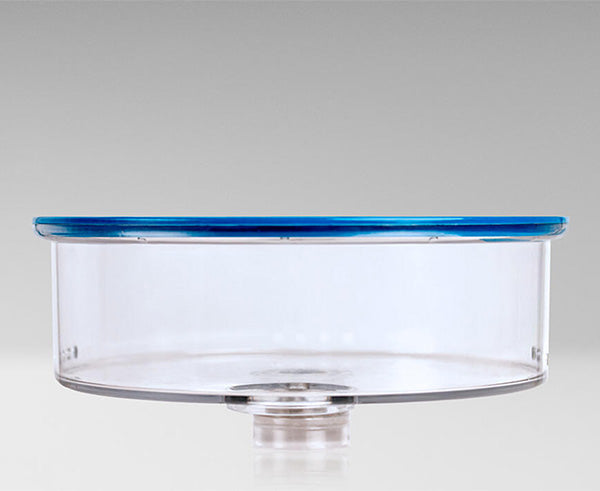

- Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
- Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
- Compression spring absorbs vibrations while cutting

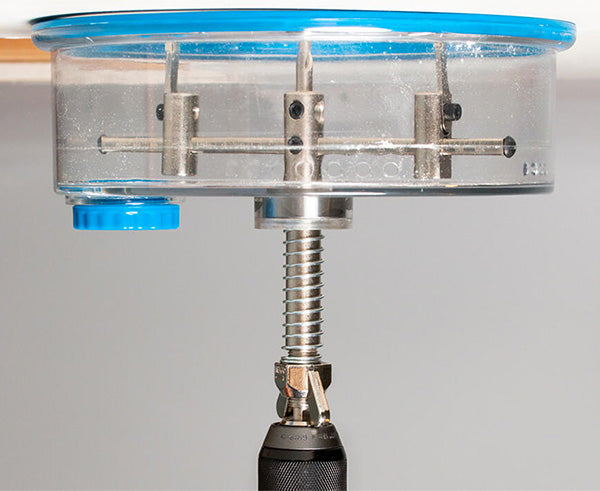

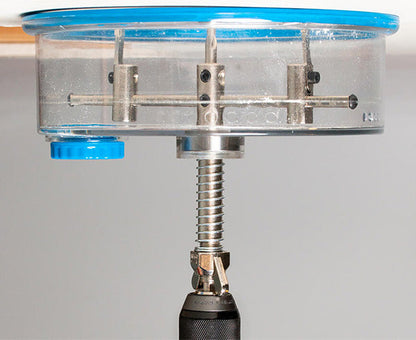

- Can be used with any variable-speed drill
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Cut Type | Round Hole |
| Works On | Plywood, Sheetrock, Plasterboard, Acrylic Sheet |
| Cutting Diameter Range | 2.2”- 9” (56 mm-228.6 mm) |
| Maximum Cutting Depth | 1.1” (27 mm) |
| Vacuum Port Size | 2.5” (63.5 mm) |
| Hex Chuck/Arbor Size | 3/8” (9.53 mm) |
| BIT SPECIFICATIONS | |
| Bit Diameter | 0.236” (6.0 mm) |
| Bit Length | 2.17” (55 mm) |
| Bit Material | Steel |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 13” x 4.50” x 13” (33 cm x 33 cm x 11.4 cm) |
| Weight | 5.43 lb (2.47 kg) |
| IDENTIFICATION | |
| UPC # | 810053350188 |
Additional Information
| Product Videos | |
|---|---|
Jonard Tools Adjustable Round Hole Cutter w/ Vacuum Port, 9" (AHC-19) Product Video |
Jonard Tools Live Event - Adjustable Round Hole Cutters Final |
What's In The Box
What’s In The Box
- Qty 1 – Cover
- Qty 1 – Adjustable Hole Cutter
- Qty 1 – Vacuum Port
- Qty 1 – Cap
- Qty 1 – Nut
- Qty 1 – Set of Replacement Blades
- Qty 1 – Hex Key

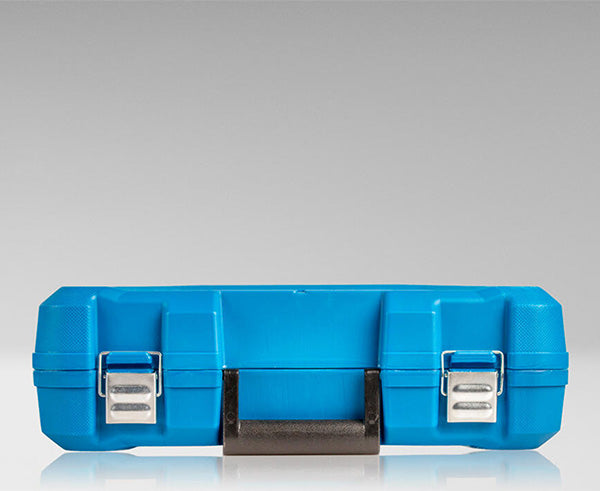

- Qty 1 – Rugged Carry Case
