Description

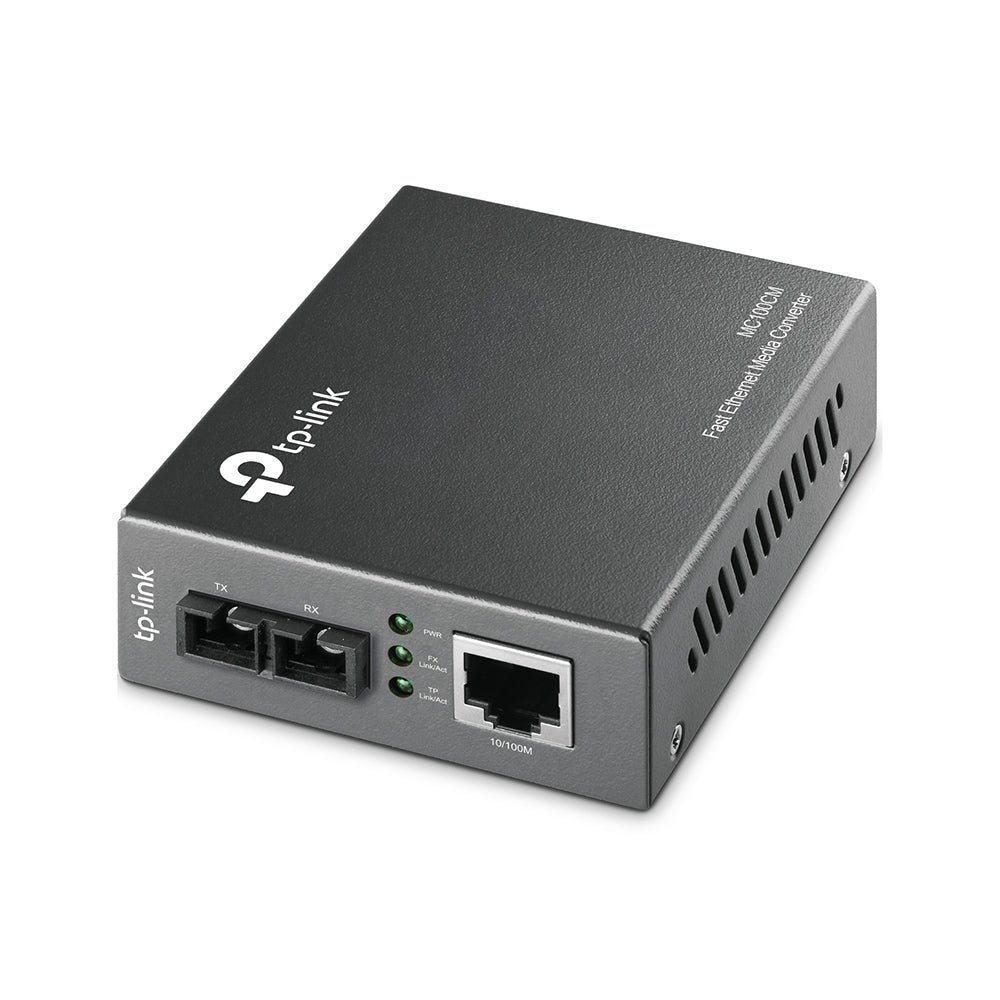

10/100Mbps Multimode Media Converter
The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Features
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX Standards
- Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
- Ranges up to 2km (1.2 miles) Transmission Distance with Multimode Fiber
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
Auto-negotiation of Half-duplex / Full-duplex Transfer Mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends Fiber Distance up to 2km (1.2 miles) |
| Ports |
1 x 100M Dual SC/UPC port 1 x 10/100M RJ45 Port (Auto MDI/MDIX) |
| Wave Length | 1310 nm |
| Network Media 10BASE-T |
UTP Category 3, 4, 5 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
| Network Media 100BASE-T |
UTP Category 5, 5e Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
| Network Media 100BASE-FX | Multimode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1 in (95 x 73 x 27 mm) |
| Power Supply | External Power Supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
What's in the Box
What's in the Box
- Qty 1 - Media Converter MC100CM
- Qty 1 - Power Adapter
- Qty 1 - Installation Guide
