Various lead times may apply to this product. Please contact us for more details.Description
Description

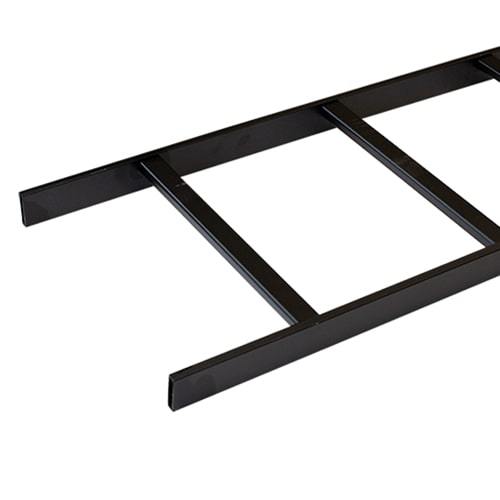

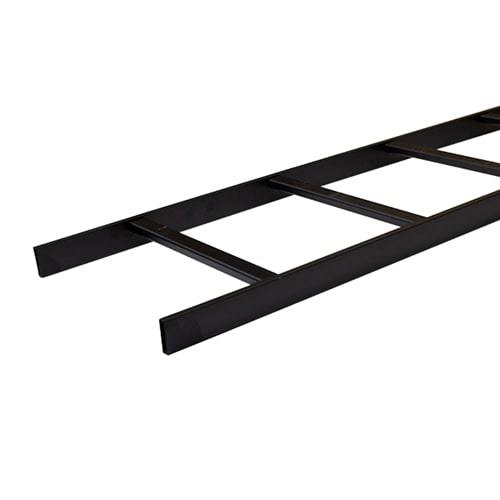

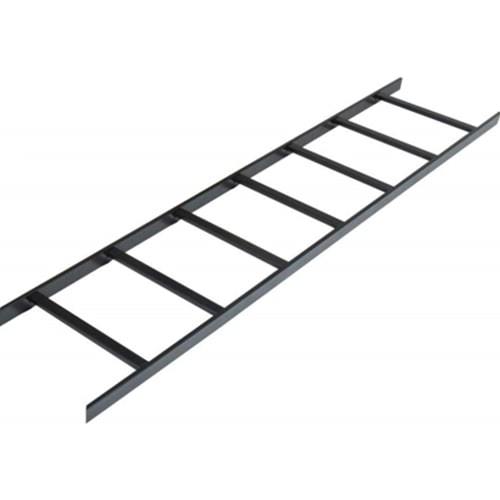

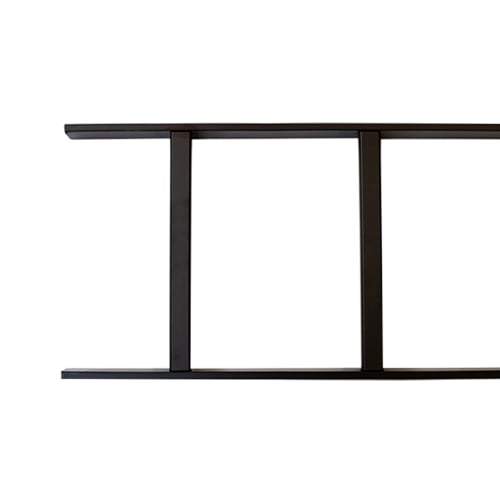

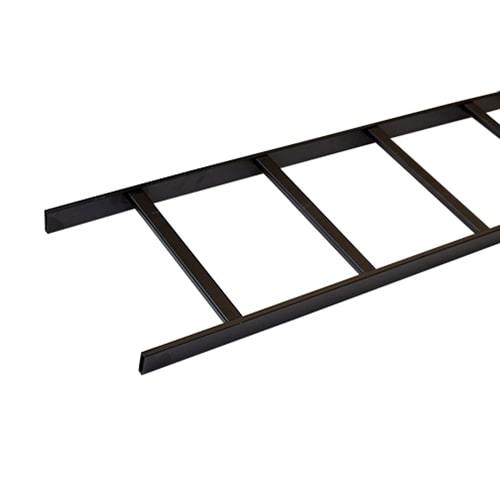

Our Cable Ladder Rack is an ideal solution anywhere an overhead cable run is required. The welded construction offers a maximum load of 132 lbs. per foot with minimum deflection (when supported every 5 ft). Constructed of (2)1-1/2 x 3/8 x 0.060 thick steel tubular stringers and (13) 1.00 x 1/2 cross members welded on 9.00 centers.
Features
Features
- Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
- Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
- RoHS compliant
- Max. load w/min. deflection: 132 lbs. per ft if supported every 5 ft
- Packaged and sold individually
Specifications
Technical Illustration
| Product Type |
Cable Ladder Rack |
| Product Material (Stringers) |
1-1/2 x 3/8 x 0.06 Thick Tubular Steel |
|
Product Material (Cross Members) |
1.00 x 1/2 Thick Tubular Steel Welded on 9.00 Centers |
| Compliance & Standards | RoHS Compliant |
|
Max. Load W/ Min. Deflection |
132 lbs. Per Foot If Supported Every 5 Feet |
What's in the Box?
What's in the Box?
Qty 1 - 10 ft. Ladder Rack For Cable Runway
