Description

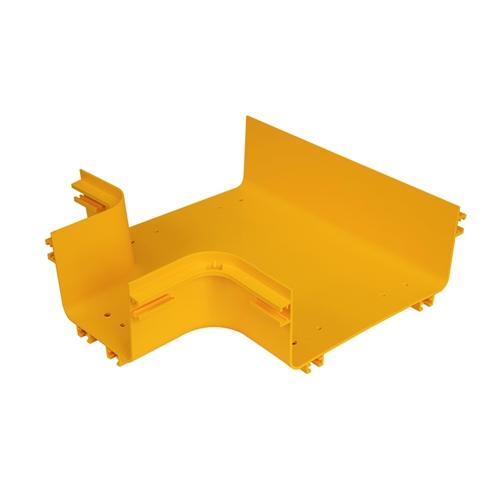

10" to 5" Horizontal Tee
This horizontal tee adapter connects a 5" channel to a 10" channel to create a horizontal branch in a fiber routing system.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires (2) 10" couplers and (1) CM-T3-4771-CNC 5" coupler for connection (sold separately)

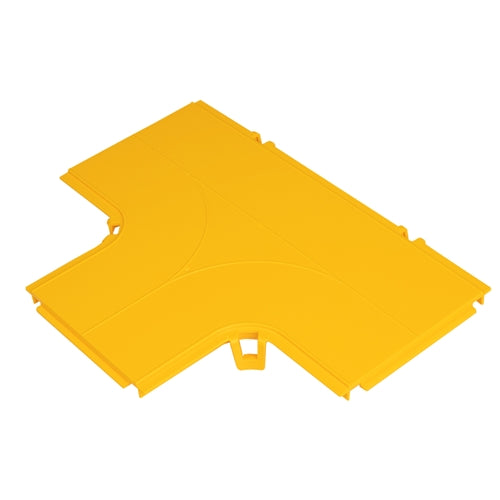

- Snap-on cover available (sold separately)
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| 10" X 5" HORIZONTAL TEE | |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) |
| COLOR | YELLOW |
| DIMENSIONS (L X W X H) | 14.7" X 13.9" X 4.6" |
| WEIGHT | 2.65 LBS |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 |
| SELLING UNIT | 1 PIECE |
Additional Information
| TECHNICAL ILLUSTRATION AND ANIMATIONS | |
|---|---|
 |
 |
What's in the Box
What's in the Box
- Qty 1 - 10” to 5” Horizontal Tee - Fiber Cable Tray Channel
