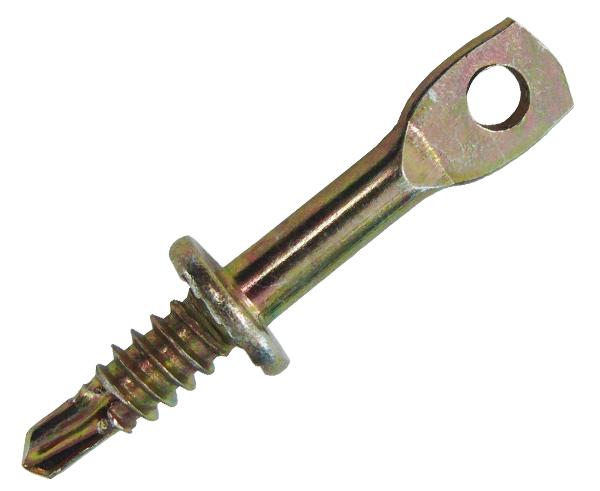

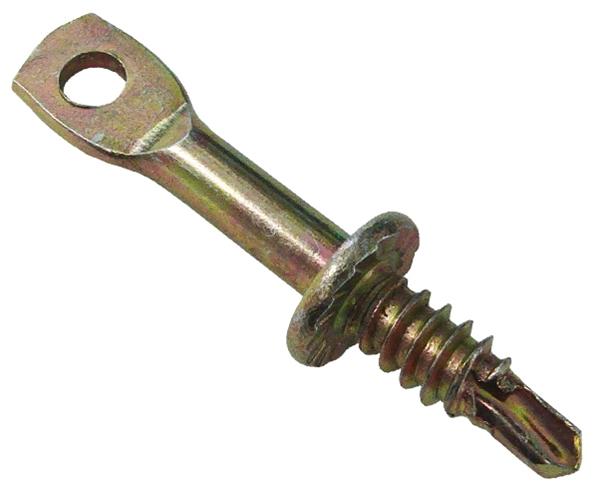

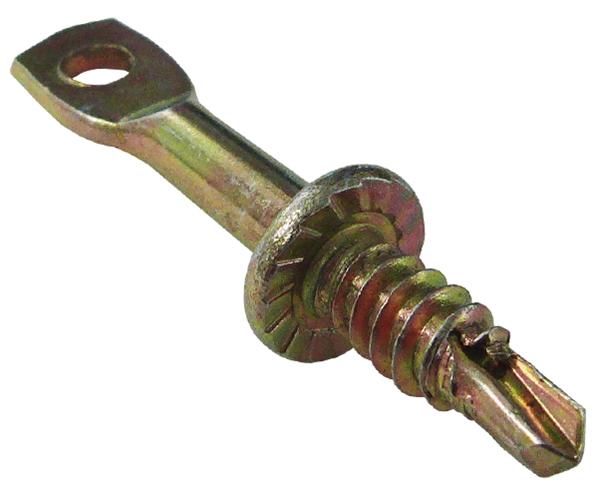

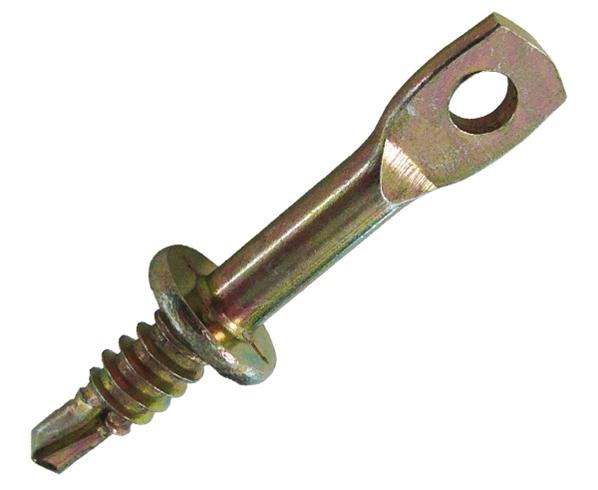

2" Eye Lag Screw 1/4" Hole 100pc box
The 2" Eye Lag Screws have a 1/4" Eye Hole, this screw is intended for sheet metal installations of J-Hooks, hanging ceiling wire & jack chain, threaded rod or s-hooks. This screw is designed as a efficient, secure and cost-effective solution for drilling into sheet metal surfaces.
These Self-Tap Eye Lag Screws are easily installed by using the 12" or 18" Xtender Pole and Eye Lag Driver Adapter also available. We've got everything you need for your overhead cable routing and management solution.
- High quality all steel construction
- 3/4" threaded length
- 1/4" plain hole for j-hooks, s-hooks, jack chain, wire, etc
Available Tension Loads for Eye-Lag Screws Installed in Steel Deck Panels (lbf)1,2
|Fastener Type||Minimum Design Base Metal Thickness (Inch)|
|Allowable Strength (ASD)|
|Design Strength (LRFD)|
For SI: 1 inch=25.4 mm, 1 lbf=4.4 N, 1 ksi=6.895 MPa.
1 The table allowable load values are for the screws only, based on fastener strength and pullout capacity. Ceiling wire capacity is outside the scope of this report. Deck capacity is aso outside of this report.
2 Values are based on installation into steel having a minimum tensile strength, Fu, of 45 ksi.
When overhead cable management is required to suspend and route your cable from purlin or beams, our J-Hooks & Hanging Hardware provide a simple, inexpensive and convenient solution. Whether you're hanging from wood, sheet metal, purlin, beams or i-beam flanges, we have what you need.
What's in the box?
What's in the box?
- Qty 100 - 2" Eye Lag Screws, Self-Tapping 1/4" Hole & 3/4" Thread
