Description
2-Post Racks - Aluminum & Steel

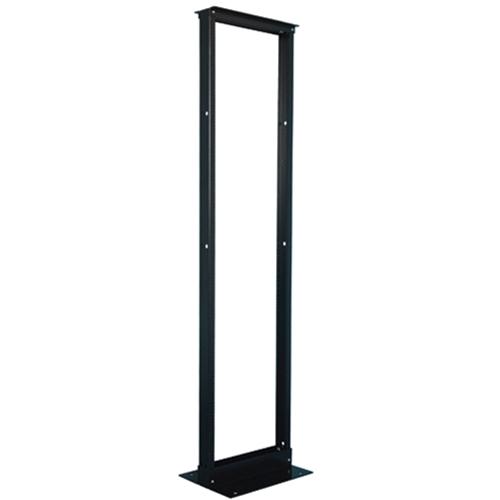

This 2 Post Steel Relay Racks are designed to work in a variety of rack system environments where a strong, stable, and durable relay rack is desired. With a small footprint that saves floor space, this 2 Post Steel Relay Rack provides unrestricted airflow for maximum ventilation and easy access to cables for moves, adds, and changes.
Our racks are offered in either high grade aluminum or steel and support up to 1,000 lbs. of standard 19 Inch EIA equipment. Available in multiple heights, these racks include 10-32 tapped holes and RU markings on both sides for fast and convenient equipment mounting.
Features
Features
- 1,000 lb load capacity
- Durable high grade steel construction
- RU markings on rails to simplify equipment installation
- Base plates are pre-drilled for mounting to floor
- 10-32 tapped on one side of posts and square cage holes on the other
- Flat packed and easy to assemble
Security & Protection
- Open design provides exceptional airflow and fast / easy access to equipment
- Available in three sizes to fit individual needs
Specifications
Specifications
Steel Relay Rack
|
Equipment Support |
1.75” RU Spacing, Marked and Numbered on Rails; 19”W, EIA-310-D Universal Hole Spacing; 10-32 Threaded Holes / Square Cage Holes. |
|
Frame Material |
Cold Rolled Steel |
|
Finish |
Black Powder Coat |
|
Dimensions |
20.25" x 15.00" |
|
Rack Unity Quantity |
42U, 45U, 48U |
|
Static Loading Capacity |
1000 lbs |
| Compliance & Standards | ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
Aluminum Relay Rack
|
Equipment Support |
1.75” RU Spacing, Marked and Numbered on Rails; 19”W, EIA-310-D Universal Hole Spacing; 10-32 Threaded Holes |
|
Frame Material |
4mm Aluminum |
|
Finish |
Black Powder Coat |
|
Dimensions |
20.25" x 15.00" |
|
Rack Unity Quantity |
42U, 45U, 48U |
|
Static Loading Capacity |
1000 lbs |
| Compliance & Standards | ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
What's in the box?
What's in the box?
- Qty 48 - 10-32 Mounting Screws & Washers
- Qty 48 - Cage Nuts
- Qty 1 - Assembly Instructions
