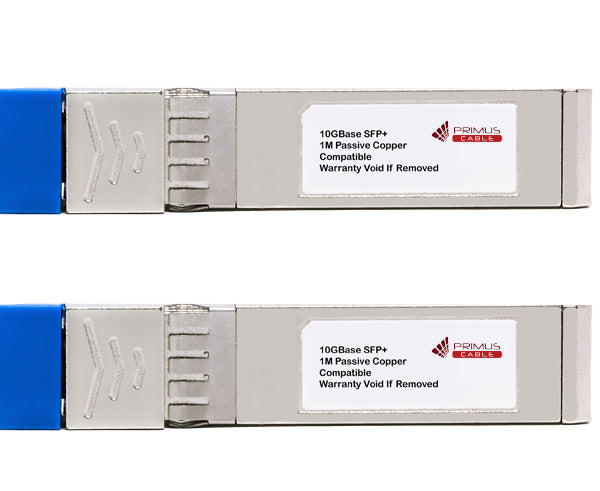

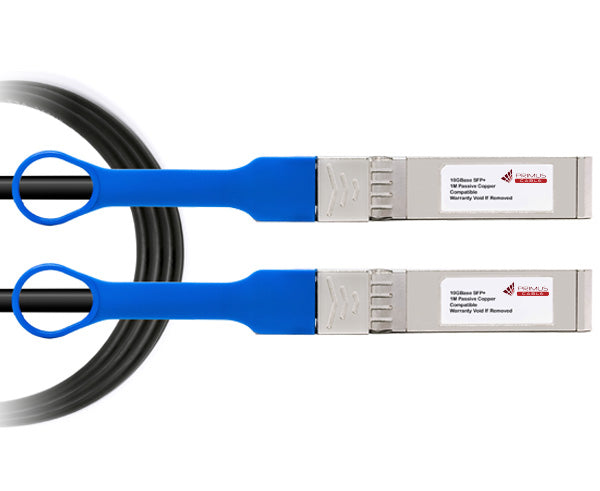

SFP+ 10GbE Copper Twinax Direct Attach Cable
The direct attach copper cables are based on the 25G Ethernet IEEE 802.3ae standard and are programmed to be fully compatible and functional with its brand's own designated switching devices. The passive design has no signal amplification. The passive SFP28 cable is a low-cost alternative for short-reach application.
Features
Features
- Up to 28 GBd bi-directional data links
- Hot-pluggable SFP footprint
- AC-coupled inputs and outputs
- 100 Ohm differential impedance
- Enhanced EMI design
- Single power supply 3.3V
- Operating Temperature Range: 0°C to +70°C
Compliance
- Meets MSA SFF-8402
- RoHS Compliant
Applications
- 25Gbase Ethernet
- Serial Data Transmission
Specifications
Specifications
| Connector Type | SFP28 to SFP28 |
| Max Data Rate | 25GB |
| Wire AWG | 30 AWG Twinax |
| Cable Type | Passive |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 - Passive SFP+ 10 GbE Copper Twinax Direct‑Attach Cable (with SFP+ latching plugs)
