Description

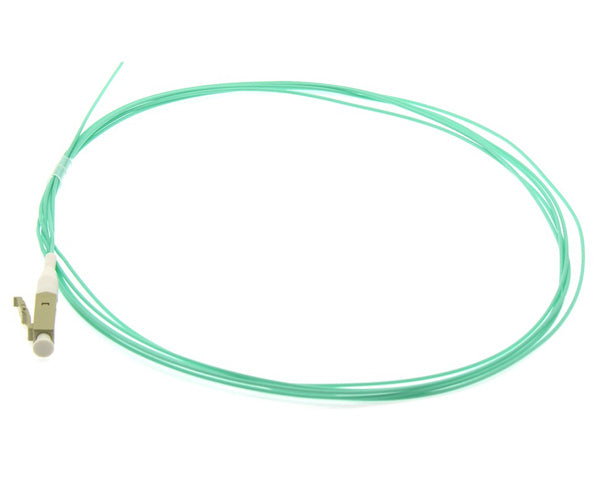

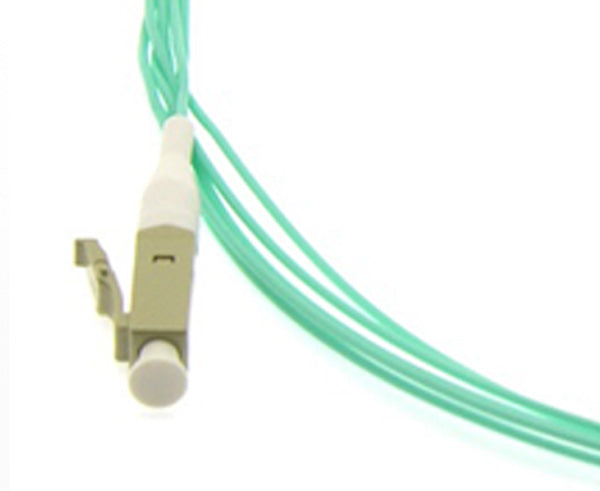

Fiber Pigtail - 3 Meter, LC/UPC, Simplex, Multimode, 10 Gig 50/125 OM3, Tight Buffer, Aqua
Fiber pigtails are ideal for fusion and splicing, our fiber pigtails are quality-tested to meet fiber industry standards and the most stringent performance specifications.
Features
Features
- Low Insertion Loss
- Low Back Reflection Loss
- Ideal with Telecommunication Networks
-
Meets ISO9001 and RoHS
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR TYPE | LC MULTIMODE |
| POLISH TYPE | UPC |
| RETURN LOSS | 55DB |
| INSERTION LOSS | 0.30DB |
| LENGTH | 3M |
| OD | 0.9MM |
| FERRULE | CERAMIC ZIRCONIA |
| OPERATION TEMPERATURE | -20°C TO 70°C |
| JACKET TYPE | OFNR/LSZH |
| JACKET COLOR | AQUA |
What's in the Box
What's in the Box
- Qty 1 – 3 m LC/UPC OM3 multimode fiber pigtail (900 µm buffered, aqua jacket)
- Qty 1 – Dust cap for the LC ferrule
- Qty 1 – Heat‑shrink splice‑protection sleeve (for fusion splicing the bare end)
- Qty 1 – Anti‑static polybag or pouch, labeled with part number
- Qty 1 – Instruction leaflet or brief datasheet
- Qty 1 – 3M warranty and compliance sheet
