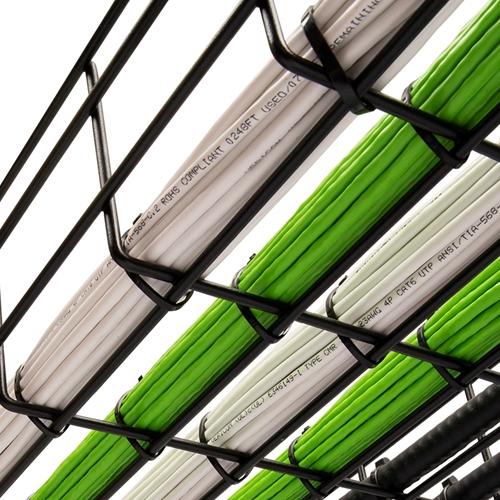

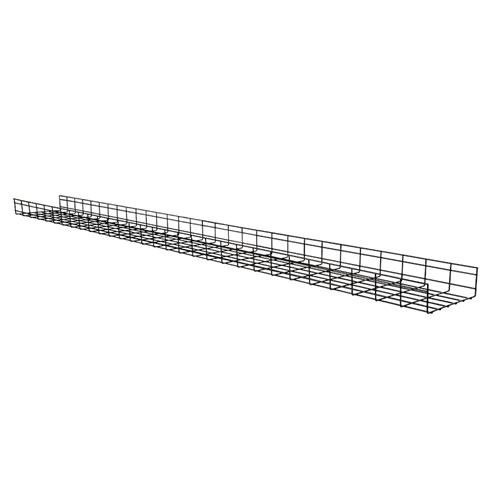

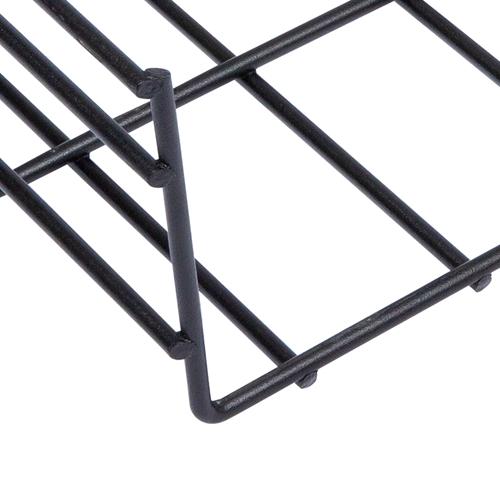

This series wire basket trays provide a durable yet adaptable pathway for routing cables along a wall, floor, or ceiling in a variety of applications, from short runs in a data closet to high-density data center installations. Each tray is constructed of welded high-strength carbon steel wire with stringers spaced every 2” and cross bars every 4”, providing a rigid structure that can handle large cable bundles. And with a black powder coated finish, our wire basket trays will protect both cabling and installers from cuts, scratches, and frays. Each tray section is 118” long but can be cut to any required length.
Features
Features
Available in 2”, 4”, and 6” depths
5mm diameter carbon steel wire
Field-adjustable to fit any installation environment
Conforms to IEC 61537 international standards for cable tray systems
Specifications
TECHNICAL SPECIFICATIONS
Material
High-strength carbon wire (0.197” [5mm] dia.)
Finish
Black powder coat
Compliance & Standards(L x H)
IEC 61537
Dimensions (L x H)
118.1” x 4.33”
ITEM NUMBER
WIDTH
WT PER PC
LOAD(lbs/ft)
CABLE FILL**
SPLICE QTY
in
mm
lbs
kgs
5 ft span
6.5 ft span
CAT6***
CAT6A***
VBT-ST10100-BP
4
100
11.35
5.15
22.85
18.82
197
142
3
VBT-ST10150-BP
6
150
12.90
5.85
45.69
34.94
295
212
3
VBT-ST10200-BP
8
200
14.44
6.55
68.54
47.71
393
283
3
VBT-ST10300-BP
12
300
17.53
7.95
68.54
51.07
590
425
4
VBT-ST10400-BP
16
400
20.61
9.35
83.32
56.45
787
566
4
VBT-ST10450-BP
18
450
22.16
10.05
83.32
59.14
885
637
4
VBT-ST10500-BP
20
500
23.70
10.75
83.32
61.82
983
708
4
VBT-ST10600-BP
24
600
26.79
12.15
86.01
53.76
1180
849
4
*Load calculations based on IEC 61537-2007 standards for cable tray systems testing.
**Cable Fill capacity based on NEC allowable fill of 50%.
***CAT6 rate based on 0.224” diameter; CAT6A rate based on 0.264” diameter. Actual diameters vary by cable manufacturer.
Additional Information

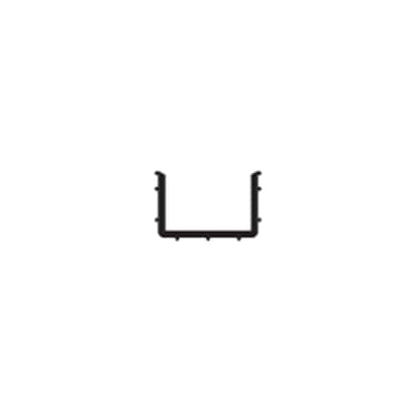

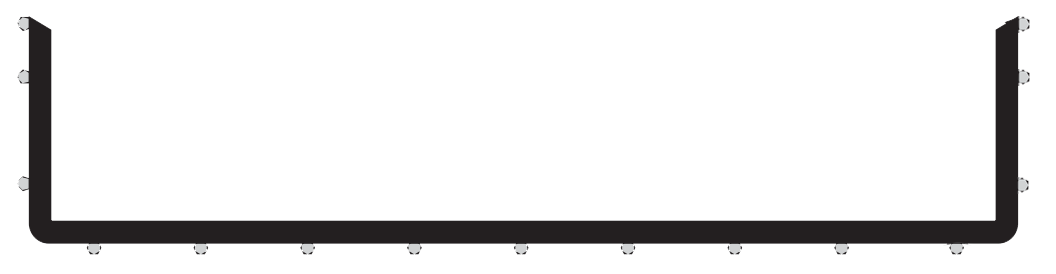

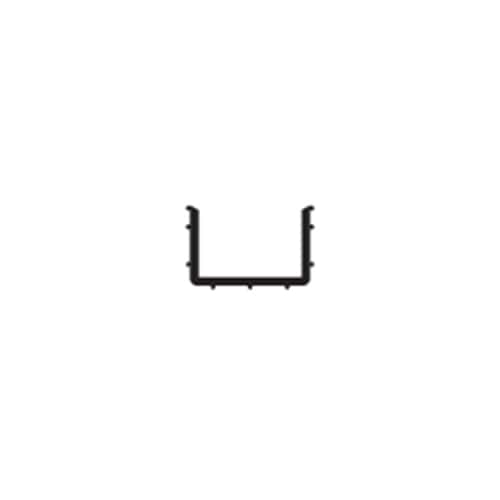

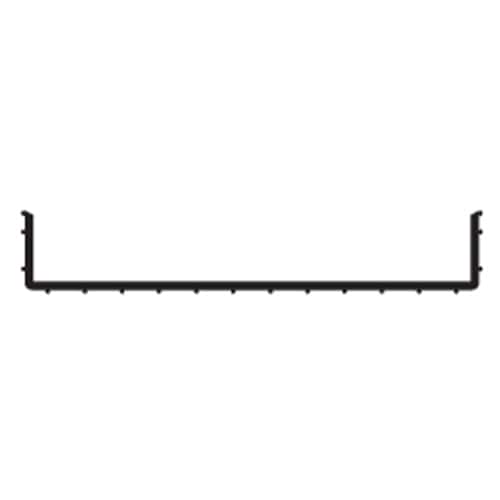

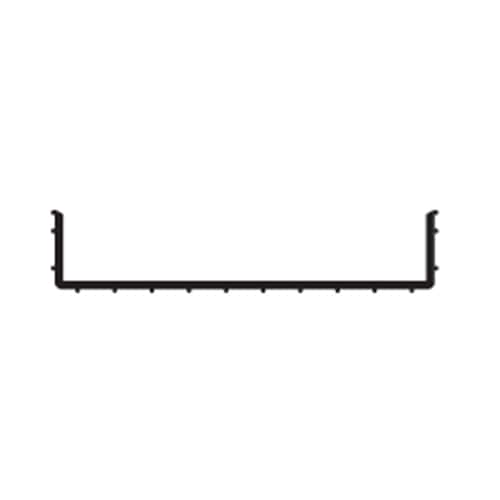

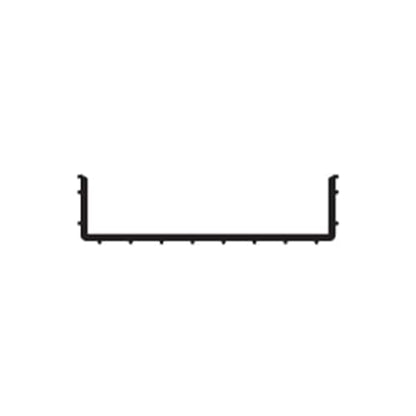

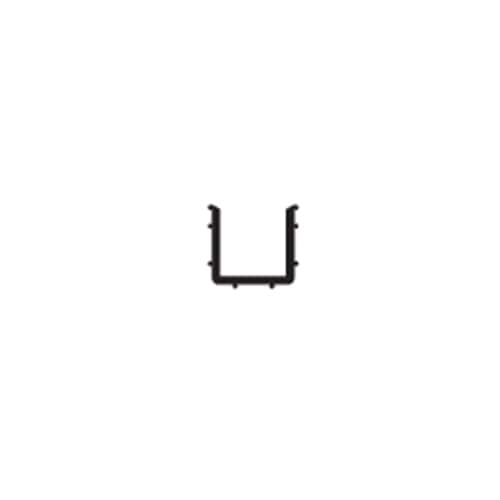

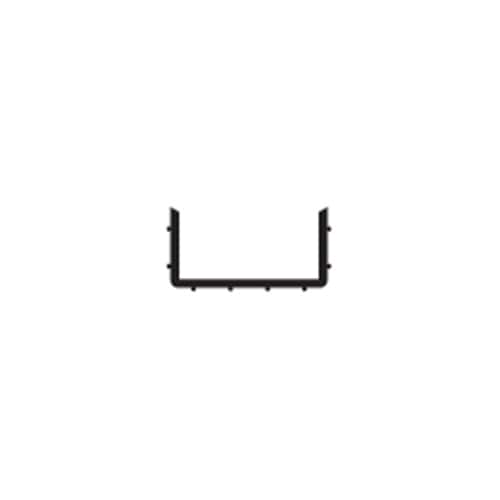

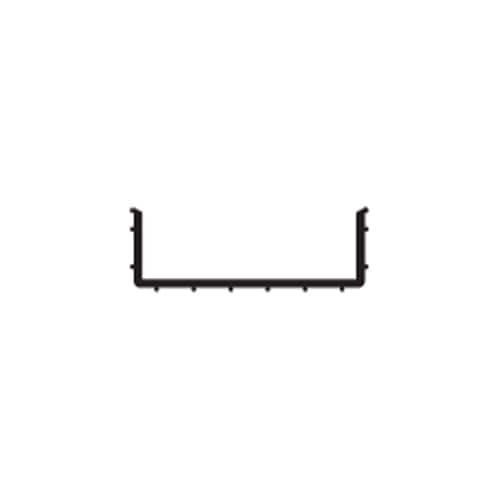

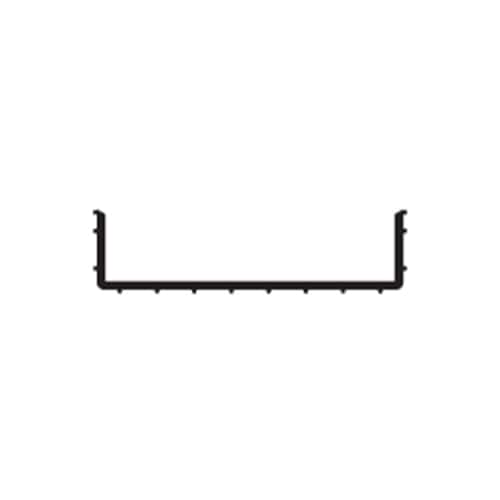

Technical Illustration
What’s In The Box
What’s In The Box
Qty 1 - Wire Basket Tray
