Splice trays, adapter panels and pigtails are included
Item is not assembled and items are packaged separately
Description
72 Strand Pre-Loaded OM3 Multimode 10G SC 2U Fiber Patch Panel with pigtails and Splice Trays
This rack mount fiber optic patch panel is a 2 Rack Unit (2U/2RU) high density FDU (Fiber Distribution Unit) that Includes OM3 Multimode 10G 12 Fiber Pigtails, LGX SC adapter panels and splice trays (24 fiber). The fiber housing has a slide out master panel with an integrated tray stop to prevent over extension of fiber cables. The FB36-6260R6 is one of a family of units that support fiber terminations in rack mount applications.
For additional fiber adapter panels use our LGX FB24 adapter panel inserts. To find out more, give us a call (951) 801-5780 or email us (sales@fibersavvy.com).Features

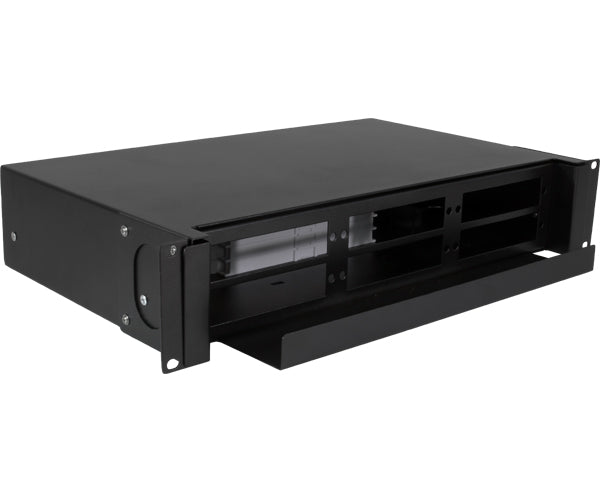

2U Slide-Out Fiber FDU Patch Panel Housing
- Fits up to 72 fiber splices
- Fits 6 LGX fiber optic adapter panels
- Includes six 24 fiber splice trays
- Durable powder coat finish
- Made from SPCC steel
- Smooth gliding pull out system

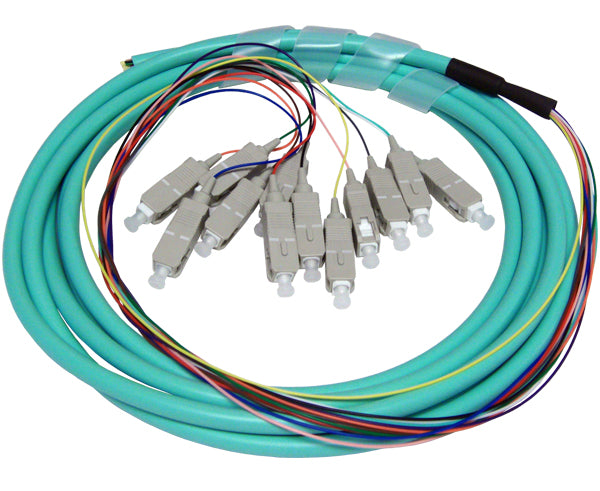

Multimode OM3 10G Fiber Optic Pigtail, SC, 12 Strand Jacketed, 3 Meter
- Protective outer jacket, which can easily be removed for tighter spaces.
- Pre-terminated fiber to reduce installation time and ensure accuracy.
- 12 OM3 Multimode 10G SC connectors ready to plug directly into an adapter panel.

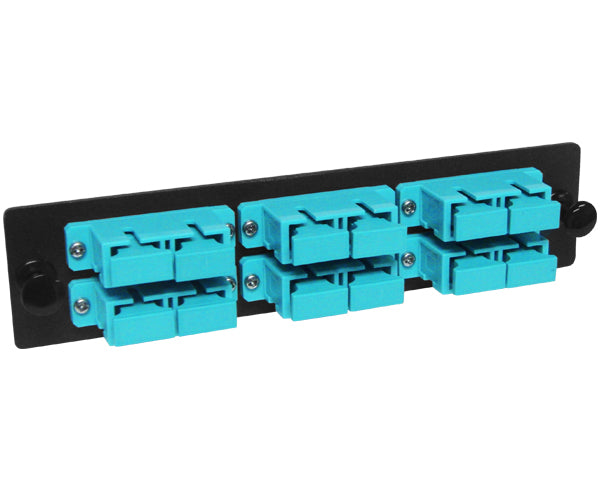

Fiber Adapter Plates
- Steel LGX type adapter plates with black paint
- SC duplex fiber adapters/couplers
- Metal clips secure the adapters/couplers in the adapter plates
Specifications
- Fiber Optic Patch Panel Housing: 2U Steel Slide-Out Fiber Patch Panel
- Pigtail: 3 Meter 12 Fiber OM3 Multimode 10G Pre-Terminated SC Pigtail
- Adapter Panels: SC LGX Fiber Adapter Panels / Blank LGX Adapter Plates
- Fiber Splice Tray: 6x 36 Fiber Splice Trays
Physical Properties
- Color: Black
- Material: Powder Coated SPCC Steel
What's Included

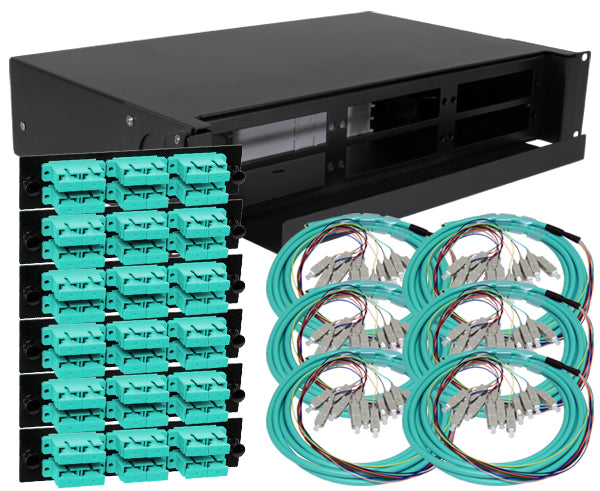

72 Fiber, SC OM3 Multimode 10G 2U Fiber Enclosure/Patch Panel Contents
- 1 - Slide-Out 2U Fiber Patch Panel Enclosure Housing (FB36-1627R6)
- 6 - OM3 Multimode 10G 3 Meter 12 Fiber SC Pigtail
- 6 - 12 Port, SC OM3 Multimode 10G Duplex Adapter Panel
- 6 - 24 Fiber Splice Trays
